Tandy 1400LT - SUB PCB Assembly

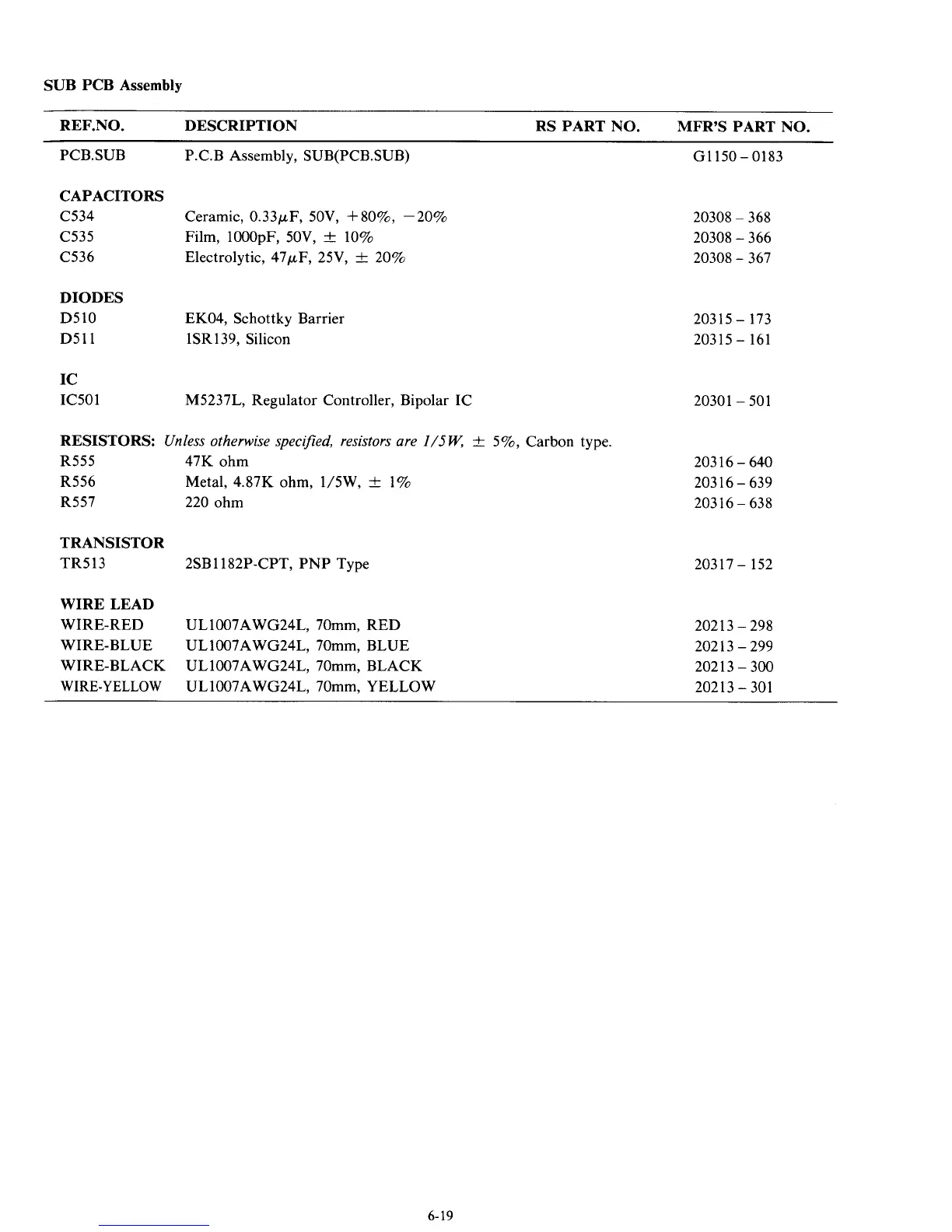

SUB PCB Assembly
REF.NO. DESCRIPTION
RS PART NO. MFR’S PART NO.
PCB.SUB
P.C.B Assembly, SUB(PCB.SUB)
CAPACITORS
c534
c535
C536
DIODES
D510
D511
IC
IC501
Ceramic, 0.33pF, 50V,
+80%, -20%
Film, 1000pF, 50V,
2 10%
Electrolytic, 47pF, 25V,
t 20%
EK04, Schottky Barrier
1SR139, Silicon
M5237L, Regulator Controller, Bipolar IC
RESISTORS: Unless otherwise specified, resistors are 1/.5 W, rt 5%, Carbon type.
R555 47K ohm
R556
R557 220 ohm
Metal, 4.87K ohm, 1/5W,
t 1%
TRANSISTOR
TR5 13 2SB 1 182P-CPT, PNP Type
WIRE LEAD
WIRE-RED UL1007AWG24L, 70mm, RED
WIRE-BLUE UL1007AWG24L, 70mm, BLUE
WIRE-BLACK UL1007AWG24L, 70mm, BLACK
WIRE-YELLOW UL 1007AWG24L, 70mm, YELLOW
G1150
- 0183
20308
- 368
20308
- 366
20308
- 367
20315
- 173
20315
- 161
20301
- 501
20316
- 640
20316
- 639
20316
- 638
20317
- 152
20213
- 298
20213
- 299
20213
- 300
20213
- 301
6-19
