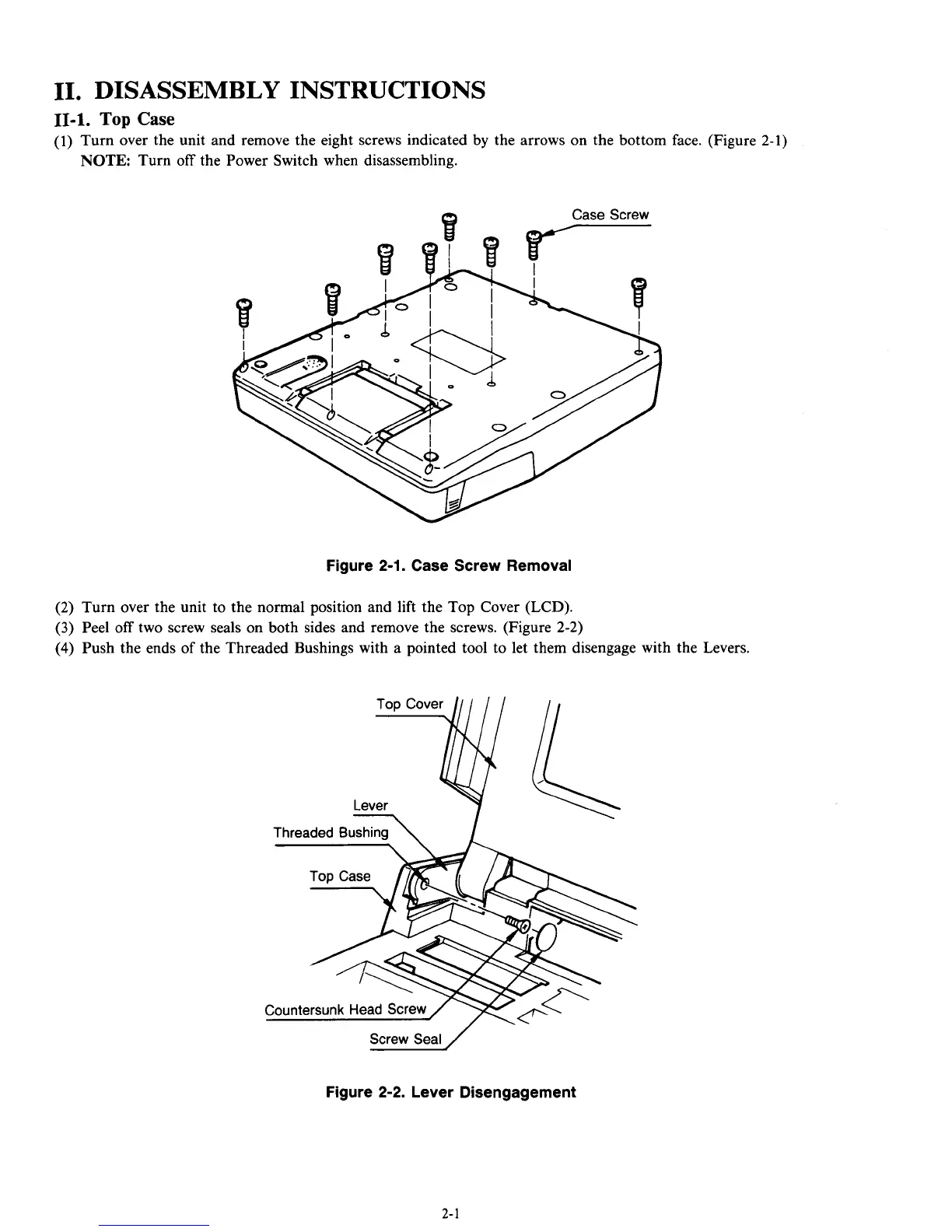

11. DISASSEMBLY INSTRUCTIONS
11-1. Top Case
(1) Turn over the unit and remove the eight screws indicated by the arrows on the bottom face. (Figure 2-1)
NOTE: Turn off the Power Switch when disassembling.
c3 Case Screw
I
Figure 2-1. Case Screw Removal
(2) Turn over the unit to the normal position and lift the Top Cover (LCD).
(3) Peel off two screw seals on both sides and remove the screws. (Figure 2-2)
(4) Push the ends of the Threaded Bushings with a pointed tool to let them disengage with the Levers.
Lever
Threaded
Bushing\
Screw Seal /
Figure 2-2. Lever Disengagement
2- 1
