Tandy 1400LT - Pedestals. Handle and Bottom Case; Bottom Case Dismantling

11-13. Pedestals, Handle and Bottom Case
(1) Turn over the Bottom Case and remove four screw Seals with tweezers. (Figure 2-23)
(2) Remove four Pedestal screws and remove the Pedestals.
(3) Pull off the Handle Pins with pliers and remove the Handle.
Handle
Pedestal
Bottom Case
0

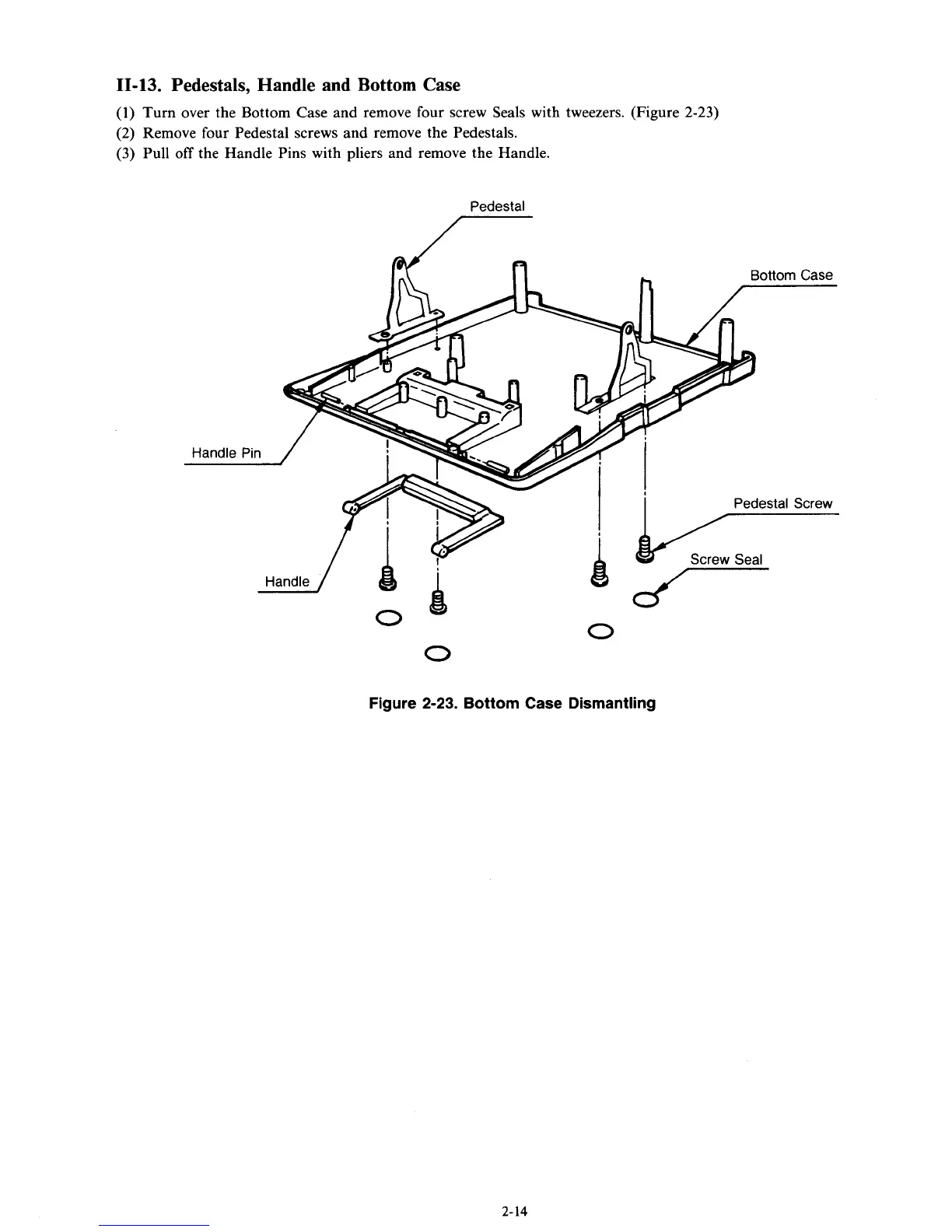

Figure 2-23. Bottom Case Dismantling
Bottom Case
0
Figure 2-23. Bottom Case Dismantling
2-14
