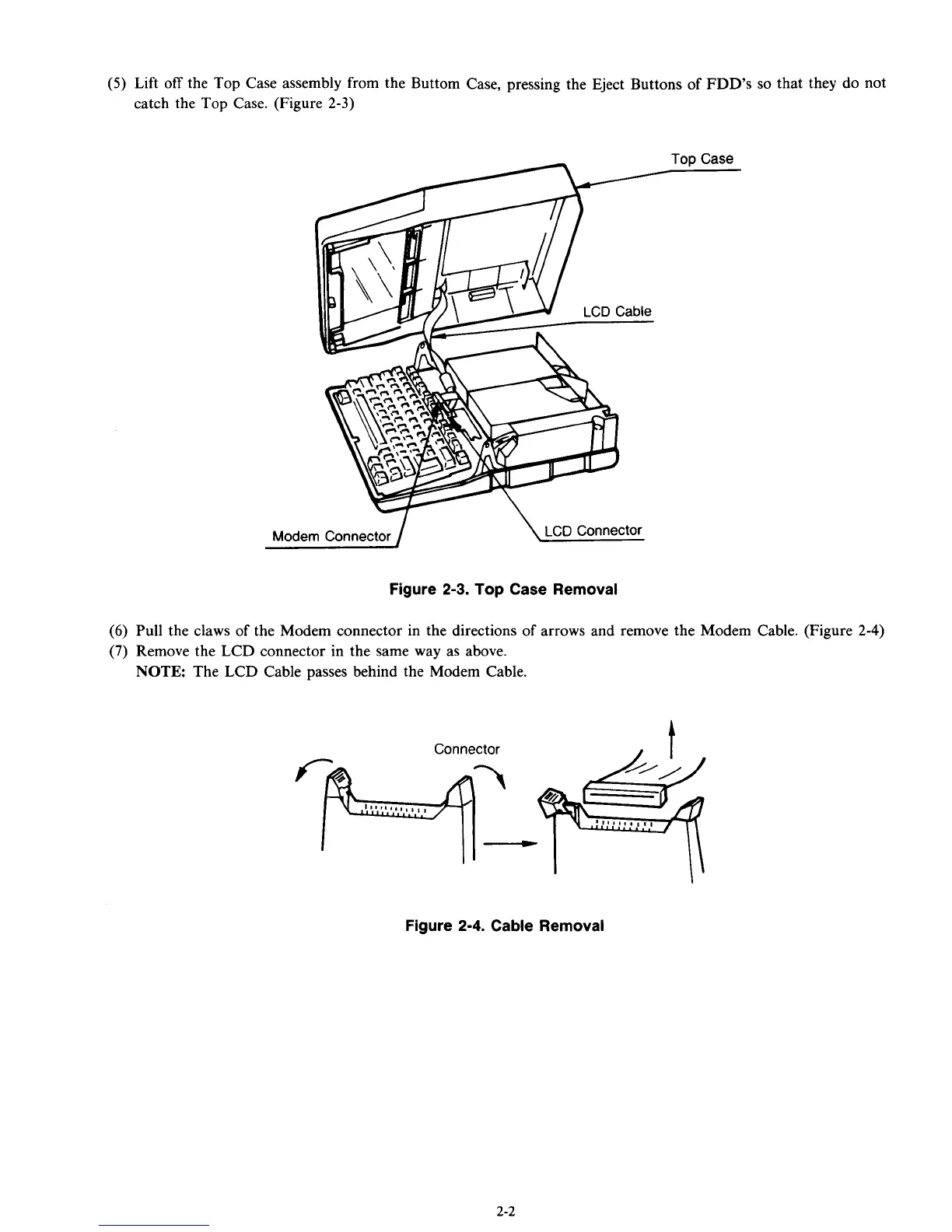

(5) Lift off the Top Case assembly from the Buttom Case, pressing the Eject Buttons of FDD’s so that they do not
catch the
Top Case. (Figure 2-3)
Top Case
L
\ LCD Connector
Modem Connector
1
Figure 2-3. Top Case Removal
Pull the claws of the Modem connector in the directions of arrows and remove the Modem Cable. (Figure 2-4)
Remove the LCD connector in the same way as above.
NOTE: The LCD Cable passes behind the Modem Cable.
Figure 2-4. Cable Removal
2-2
