3. Mechanical Specifications
Item Dimensions Unit
10.63 (W)
X 6.1 (H) X 0.5 (D) max
(270
X 154 X 12.2)
9.76 (W)
X 4.5 (H)
(248 X 114)
Module size
Effective viewing area
inches (mm)
inches (mm)
Weight Approx 0.98 (440) Ibs (9)

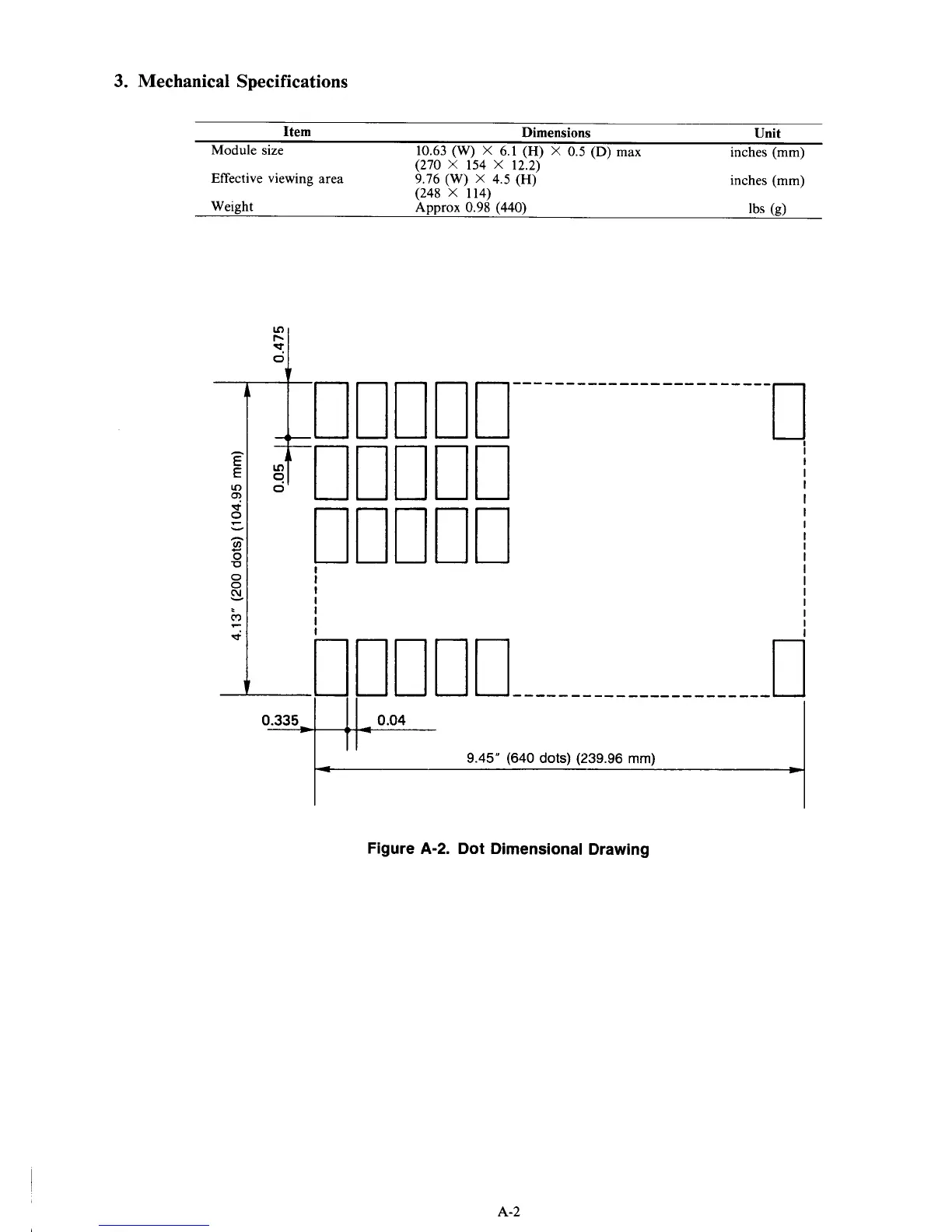

Figure A-2. Dot Dimensional Drawing
A-2
