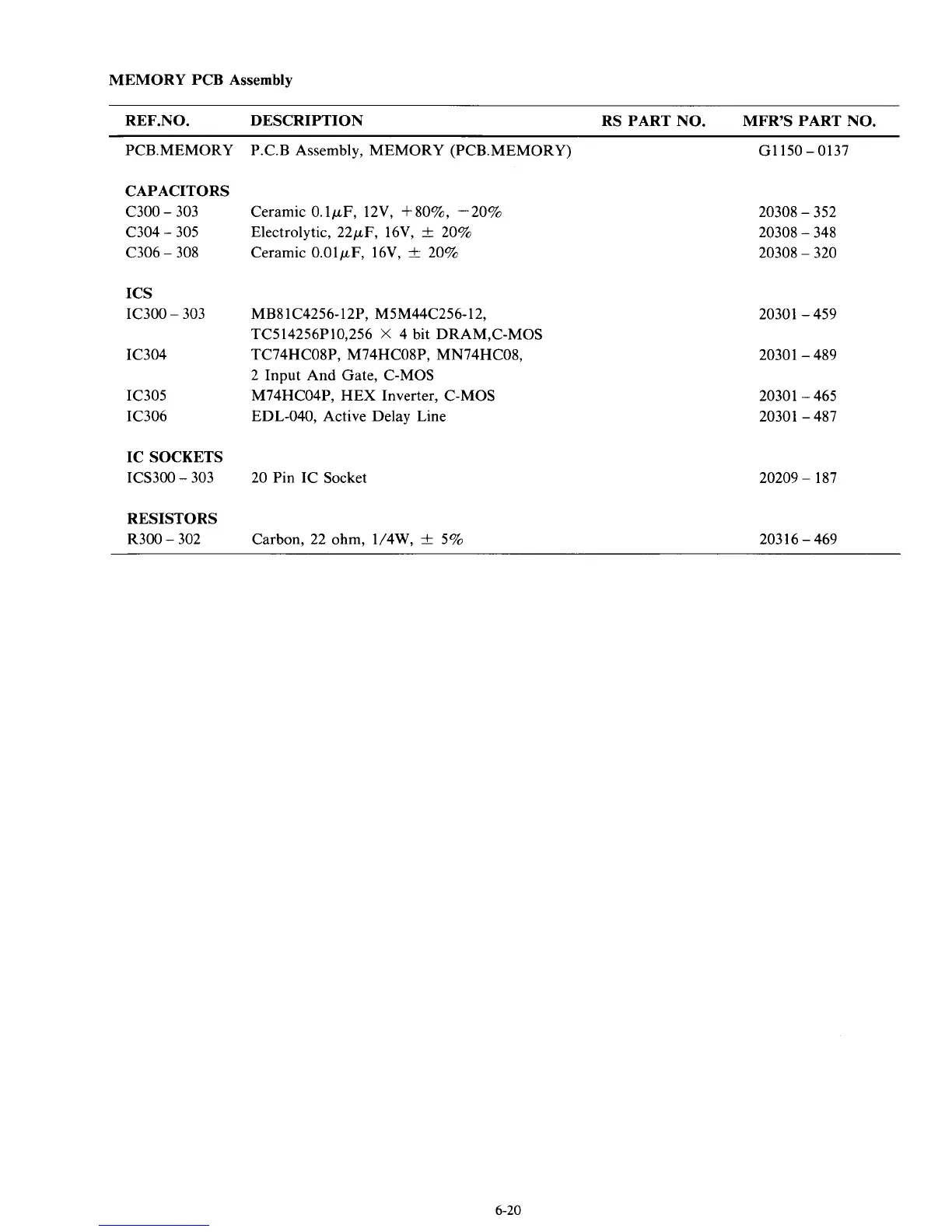

Tandy 1400LT - MEMORY PCB Assembly

MEMORY PCB Assembly
REF.NO. DESCRIPTION RS PART
NO. MFR’S PART NO.
PCB.MEMORY
CAPACITORS
C300 - 303
C304
- 305
C306
- 308
ICs
IC300 - 303
IC304
IC305
IC306
IC SOCKETS
ICs300 - 303
RESISTORS
R300 - 302
P.C.B Assembly, MEMORY (PCB.MEMORY)
Ceramic O.lpF, 12V,
+go%, -20%
Electrolytic, 22pF, 16V,
t 20%
Ceramic O.OlpF, 16V,
k 20%
MB8 1 C4256- 12P, M5M44C256- 12,
TC514256P10,256
X 4 bit DRAM,C-MOS
TC74HC08P, M74HC08P, MN74HC08,
2 Input And Gate, C-MOS
M74HC04P, HEX Inverter, C-MOS
EDL-040, Active Delay Line
20 Pin IC Socket
Carbon, 22 ohm, 1/4W,
* 5%
G1150 - 0137
20308
- 352
20308
- 348
20308
- 320
20301
- 459
20301
- 489
20301
- 465
20301
- 487
20209
- 187
20316
- 469
6-20
