Tandy 1400LT - Front Panel Replacement

3- 1-2 Installation
a) Set the respective connectors to the PCB.
b) Place the PCB on the frame of FDD.
c) Fasten the PCB with two screws.
3-2. FRONT PANEL REPLACEMENT
3-2-1 Removal
a) Remove the PCB (Refer to 3-1-1)
b) Remove the Eject Button.
c) Remove the Front Panel.
/
FRONT PANEL
1

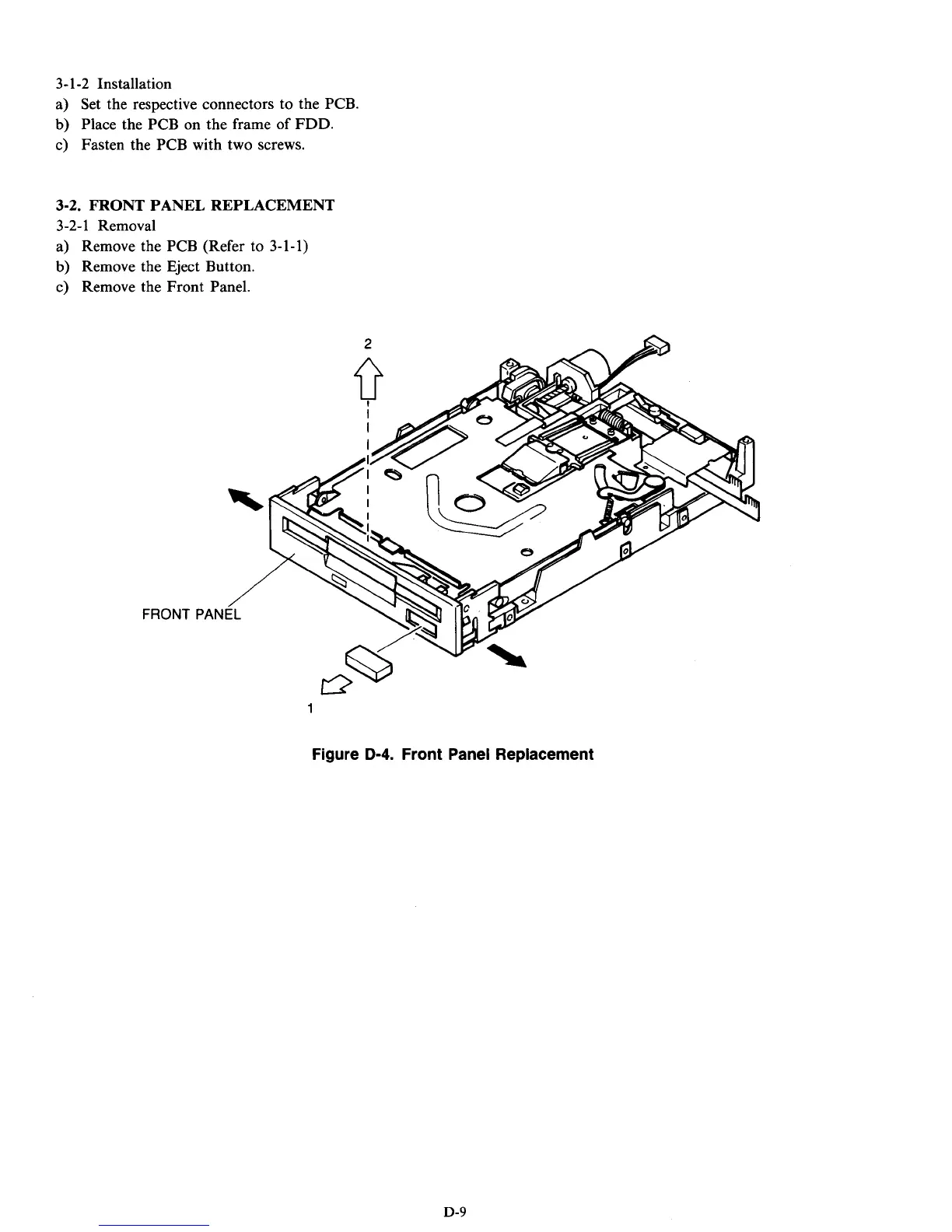

Figure D-4. Front Panel Replacement
