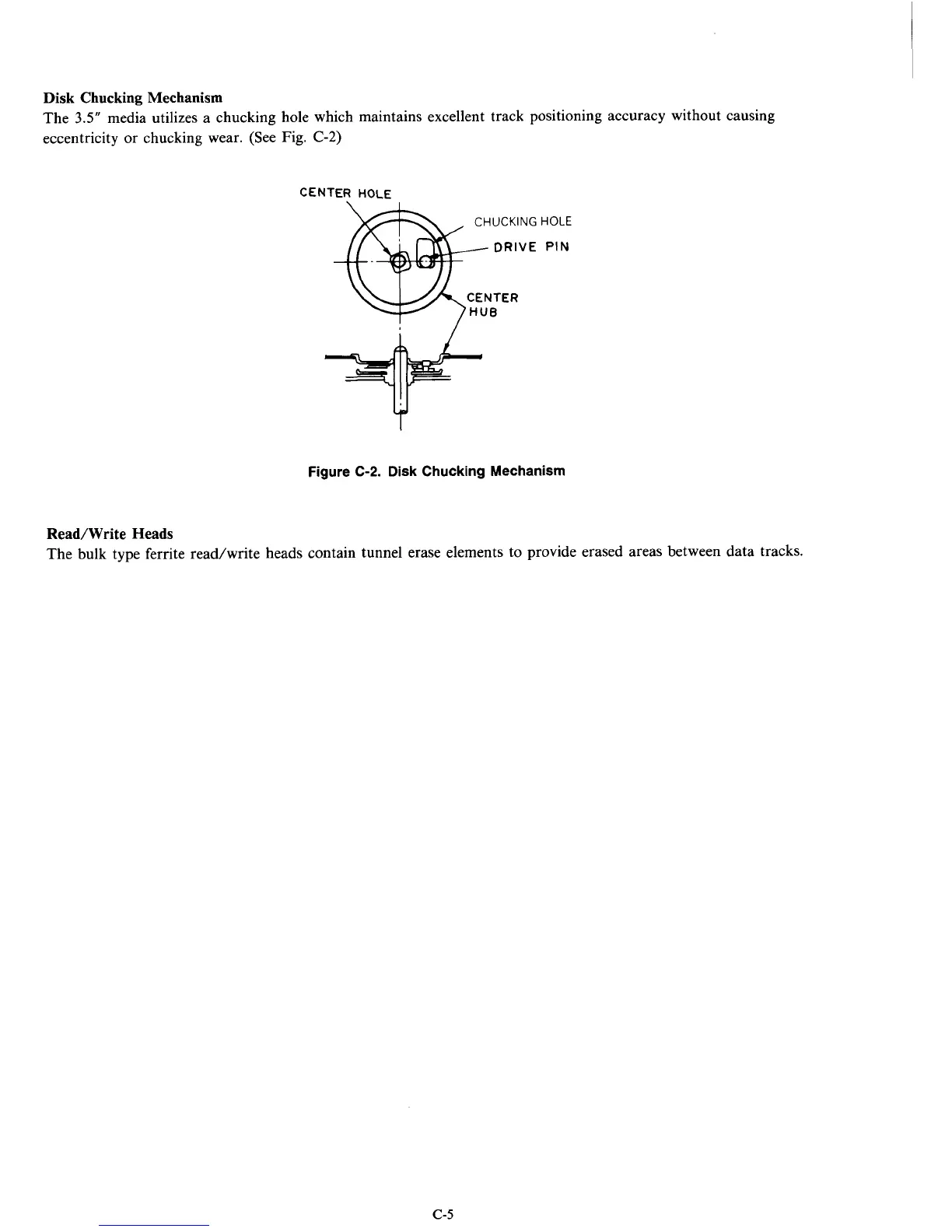

Disk Chucking Mechanism
The 3.5” media utilizes a chucking hole which maintains excellent track positioning accuracy without causing
eccentricity
or chucking wear. (See Fig. C-2)
CENTER HOLE
CHUCKING HOLE
Figure C-2. Disk Chucking Mechanism
Read/Write Heads
The bulk type ferrite read/write heads contain tunnel erase elements to provide erased areas between data tracks.
c-5
