5. Insert EL back light to original position.
Remark) There is FPC between left side of module and PCB,
so be careful to insert EL back light.
Bend the head of
EL back light lightly upward before insertion.
And then insert
EL back light over the FPC.
Be careful to watch the silhouette of
EL back light when inserting.
See Fig. B-3 and B-4.
If you will insert
EL back light like as Fig. B-4-a and Fig. B-4-b, it will break the FPC.

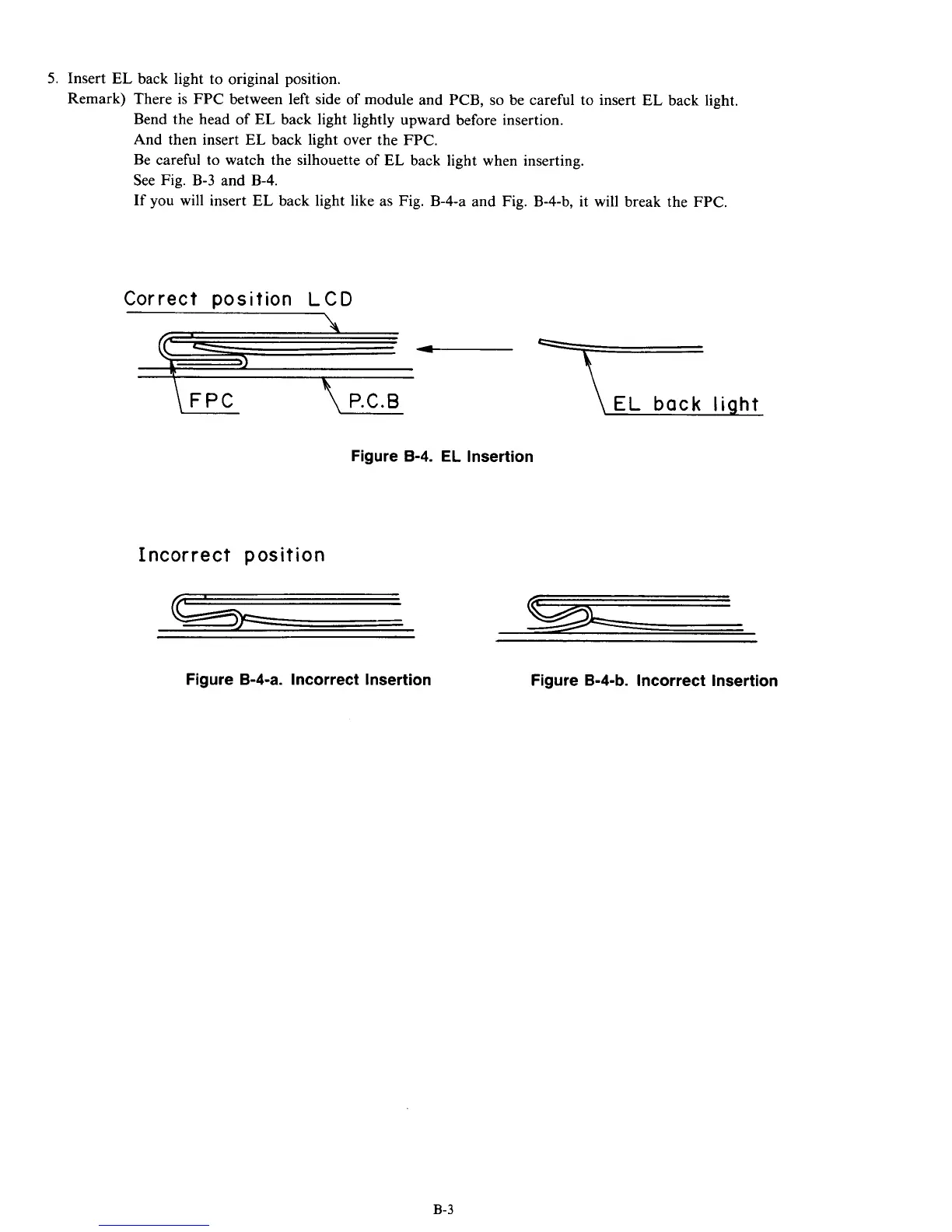

Correct position LCD
\
::- -7 EL back Ii g ht
Figure 8-4. EL Insertion
Incorrect position
Figure B-4-a. Incorrect Insertion Figure B-4-b. Incorrect Insertion
