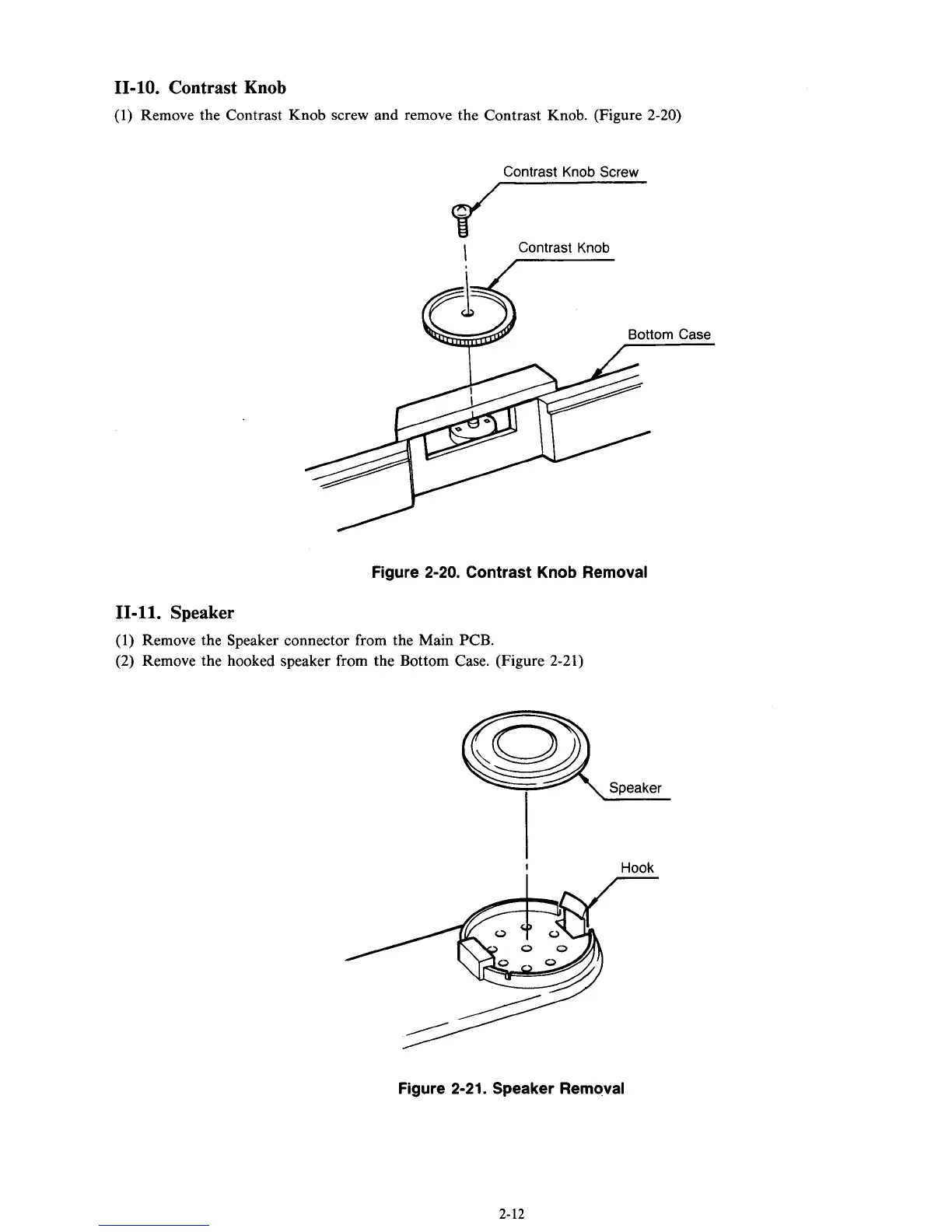

11-10. Contrast Knob
(1) Remove the Contrast Knob screw and remove the Contrast Knob. (Figure 2-20)
Contrast Knob Screw
-
Contrast Knob
?r
Figure 2-20. Contrast Knob Removal
11-11. Speaker
(1) Remove the Speaker connector from the Main PCB.
(2) Remove the hooked speaker from the Bottom Case. (Figure 2-21)
Speaker
I Hook
I
Figure 2-21. Speaker Removal
2-12
