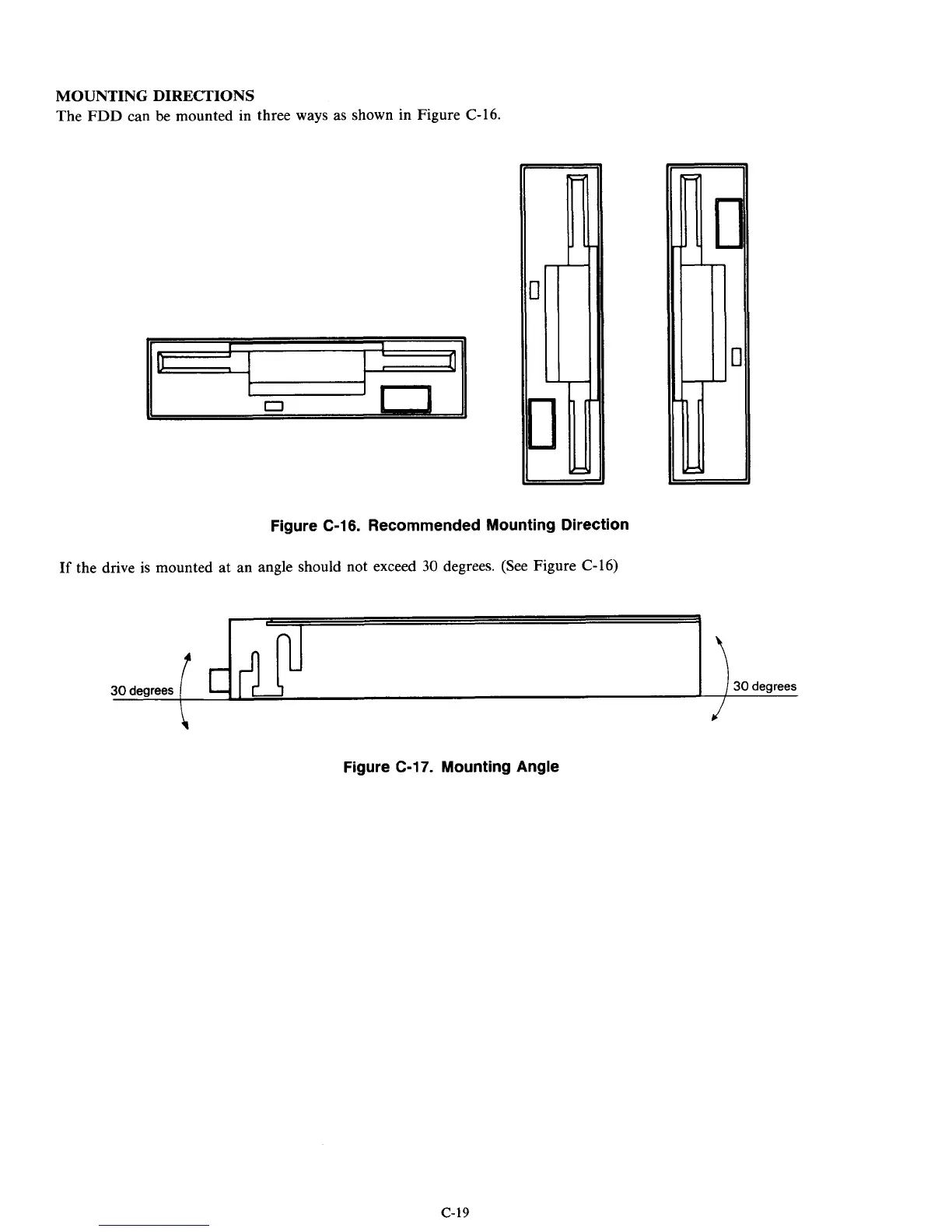

MOUNTING DIRECTIONS
The FDD can be mounted in three ways as shown in Figure C-16.
L
0 --
e
,- 4
30 degrees t CL,
Figure C-16. Recommended Mounting Direction
If the drive is mounted at an angle should not exceed 30 degrees. (See Figure C-16)
30 degrees
Figure C-17. Mounting Angle
C-19
