4. Installation
MECHANICAL DIMENSION
The mechanical dimensions of OPDB-12A are as follows:
Width:
Depth:
Height:
4.00
f 0.02 inches (101.6 f 0.5 mm)
5.91
f 0.02 inches (150.0 f 0.5 mm)
1.00
f 0.02 inches (25.4 f 0.5 mm)

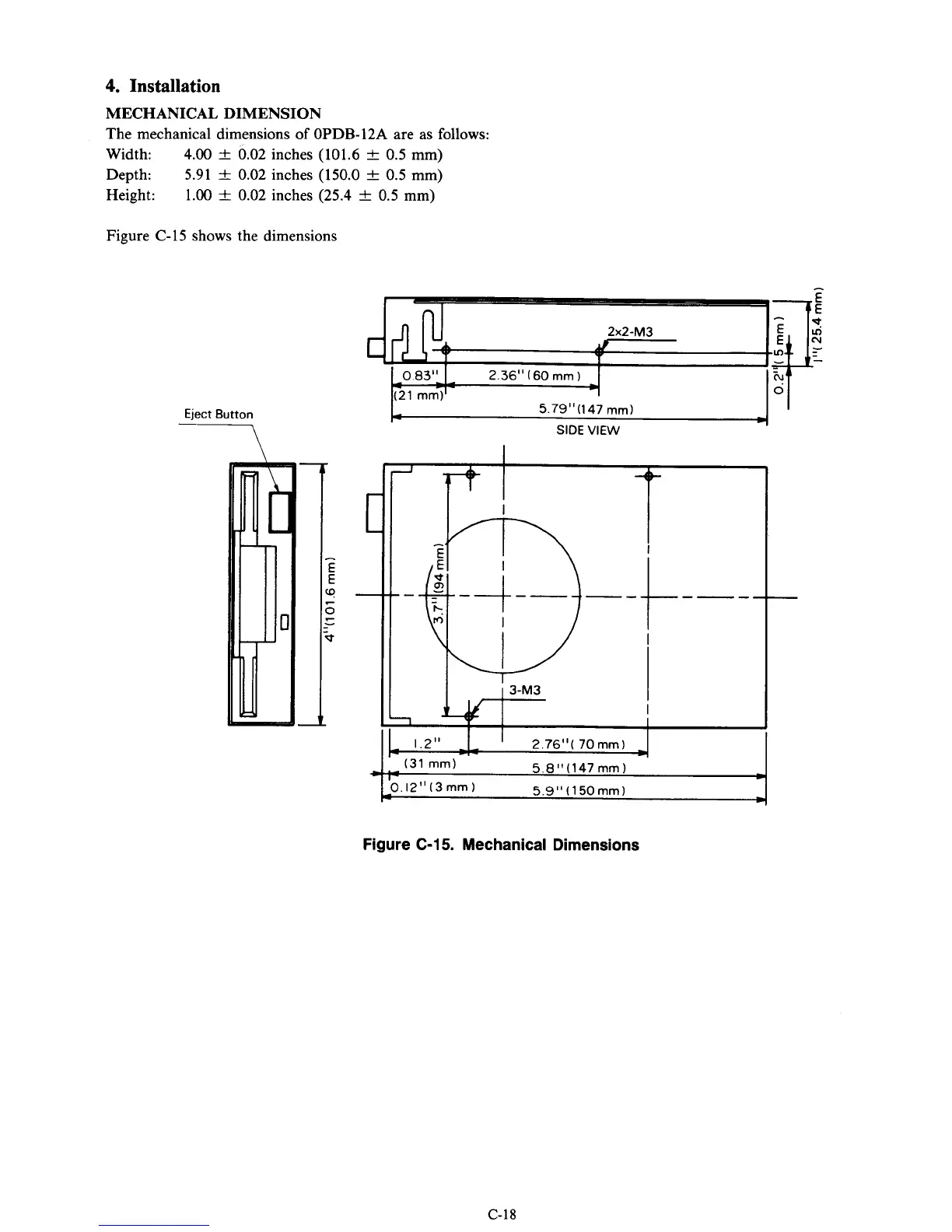

Figure C-15 shows the dimensions
Eject Button
Figure C-15. Mechanical Dimensions
C-18
