3. Parts Replacement
3- 1 - 1 Removal
a) If shield cover is installed, remove the one screw which fastens shield cover to the frame.
b) Remove the two screws which fasten PCB to the frame.
c) Remove the connectors except Head Cable Connector
It is easy for removal to use small screw driver for removal.
d) Move the PCB with care not to apply excessive force to the Head cable, and then remove the Head cable
connectors.
3-1 P.C.B. REPLACEMENT
I
YSHIELD COVER -/ 44
t
Connector
(4
(b)

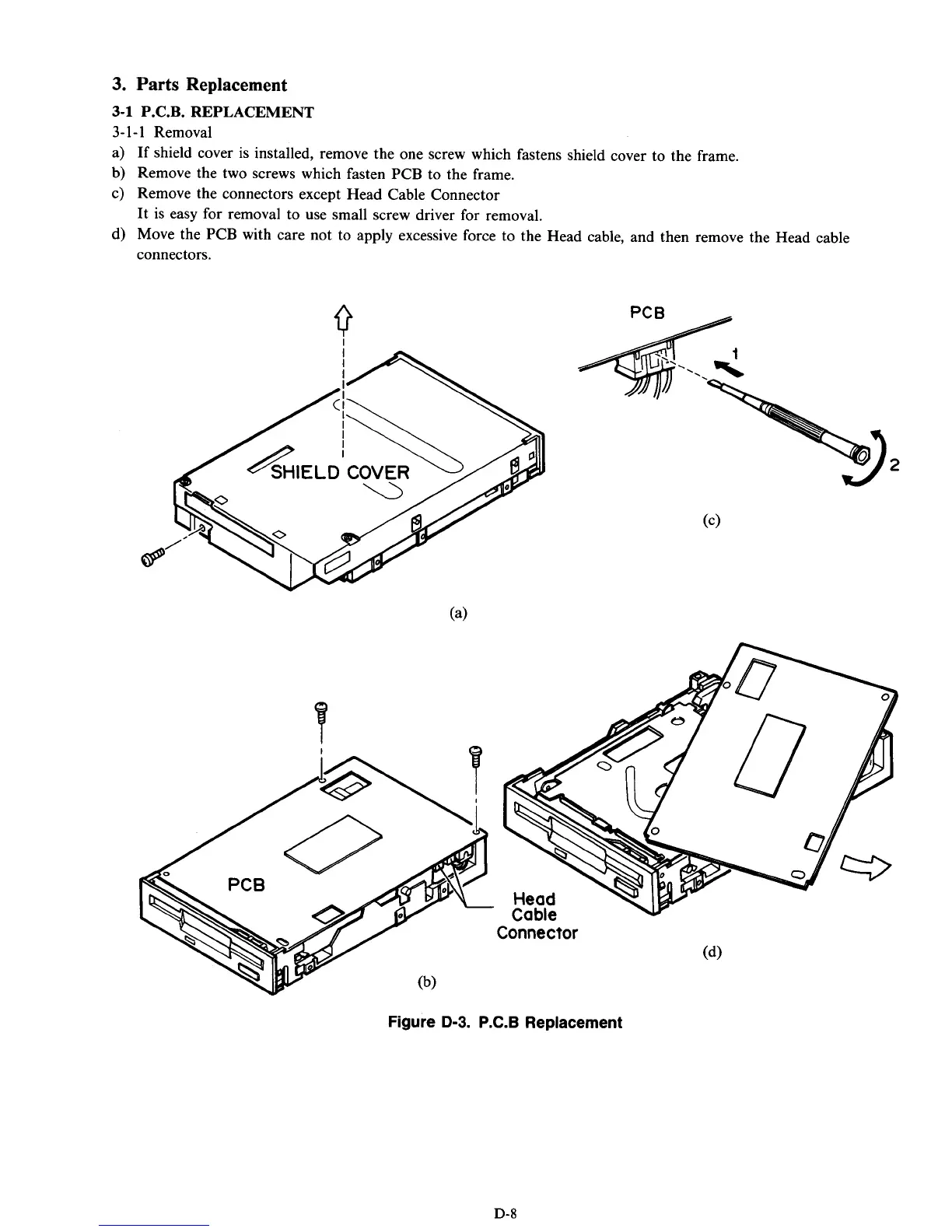

Figure D-3. P.C.B Replacement
