3-3-2 Installation
a) Install the Carrier. (Set the Carrier to the damper.) (Set the Carrier under the upper head.)
b)
Remove the Head Protect Sheet.
c)
Install the Front Panel. (Refer to 3-1-2)
d) Install the PCB. (Refer to 3-2-2)
3-4
SLIDE PLATE REPLACEMENT
3-4-
1
Removal
a) Remove the PCB. (Refer to 3-1-1).
b)
Remove the Front Panel. (Refer to 3-2-1)
c) Remove the Carrier. (Refer to 3-3-1)
d) Remove two springs which connect Slide Plate and Frame.
e) Remove the Slide Plate.
SPRINGS

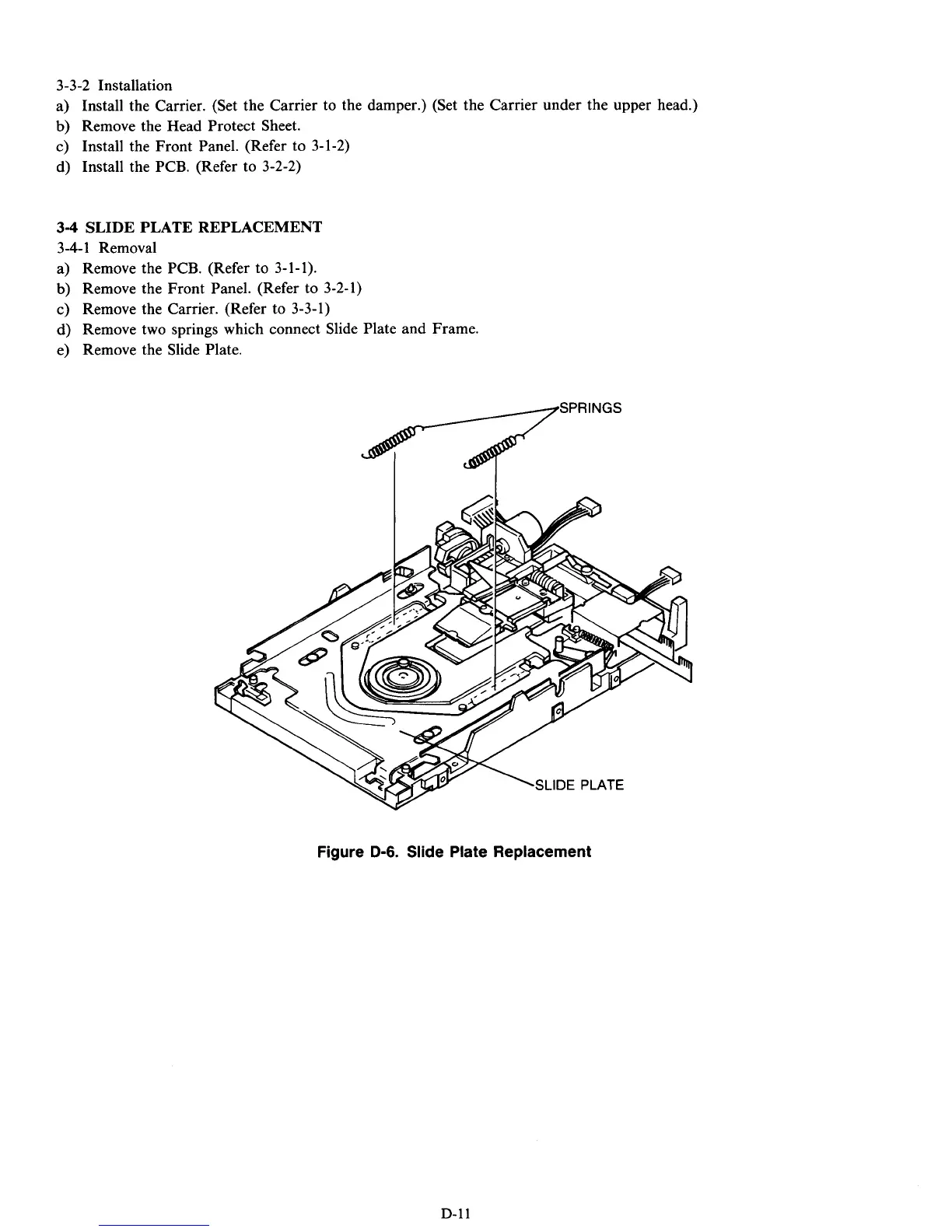

Figure
D-6.
Slide Plate Replacement
D-11
