G10 Hardware Maintenance Guide 7.13.2 117
5
Maintenance Guidelines
Rev. 002-140228
4. Wait until the Hot Swap LED is solid blue. This indicates that the RTM has
powered down completely.

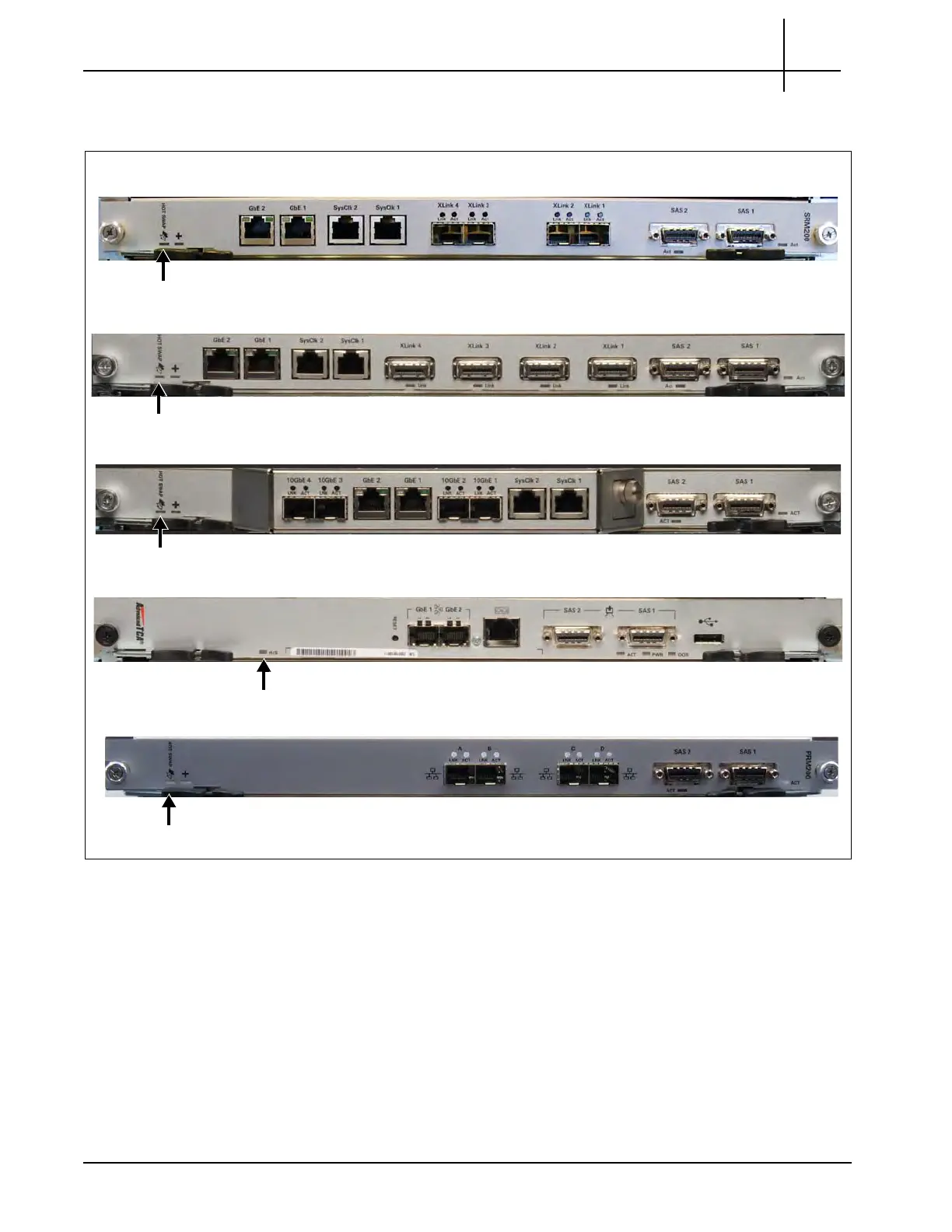

Figure 5.34 - RTM Hot Swap LEDs
5. You can perform one of the following:
Remove the RTM.
Push the latch and lever back in until the Hot Swap LED turns off.
SRM100 RTM
TRM100 RTM
Hot Swap LED
PRM100
PRM200 RTM/PRM300 RTM
Hot Swap LED
SRM200 RTM
Hot Swap LED
Hot Swap LED
Hot Swap LED
Tektronix Communications | For Licensed Users | Unauthorized Duplication and Distribution Prohibited
