Tektronix GeoProbe G10 User Manual

G10 Hardware Maintenance Guide 7.13.2 42 
3
Blades and RTMs
Rev. 002-140228
IIC100
The Iris Interface Card (IIC100) consists of the following components (Figure 3.12):
 ATCA carrier card (CAB100)
 FPC100 AMC
 LPC100 AMC

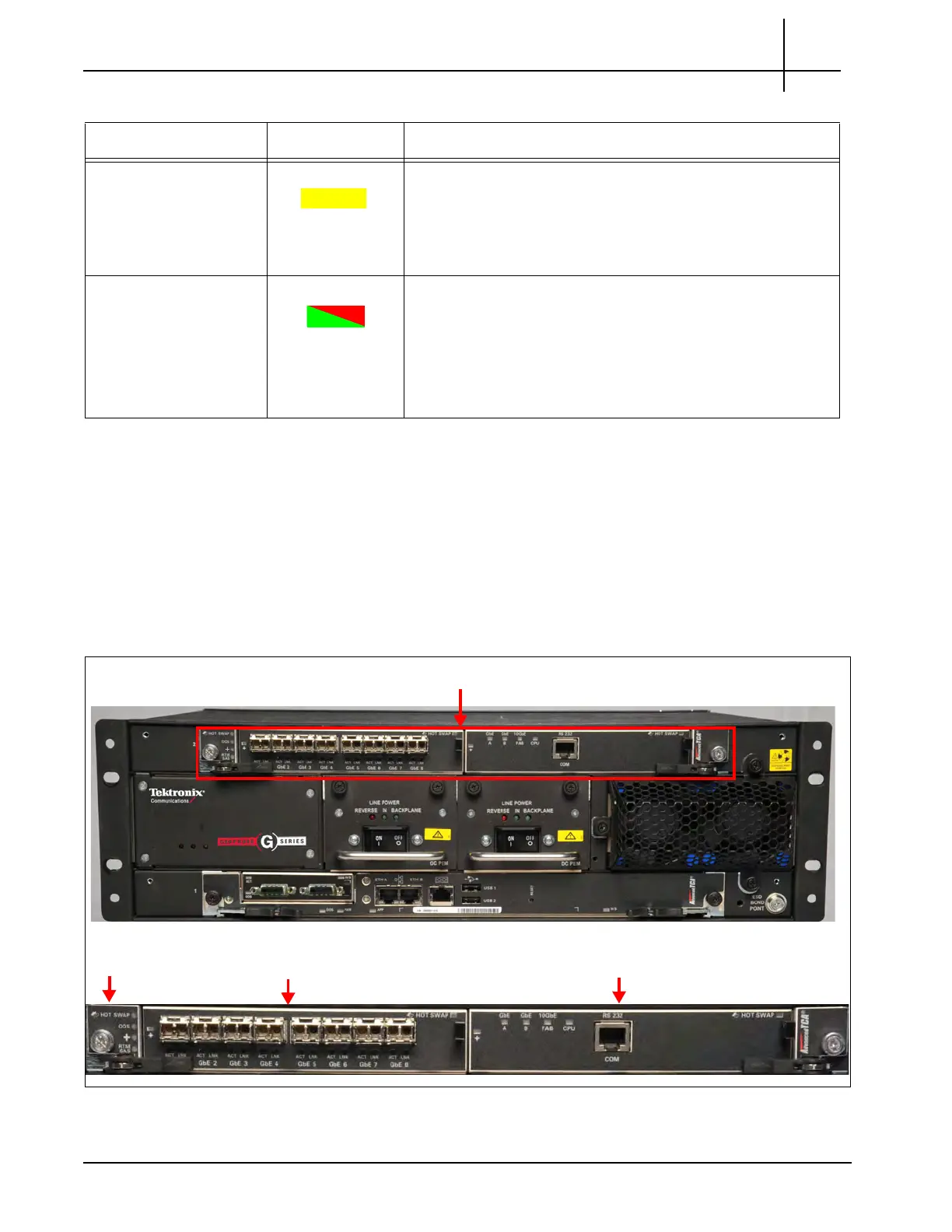

Figure 3.12 - G10 IIC100
XLink 1–4 Act LEDs YELLOW Indicates 10 Gigabit Ethernet link and activity.
 SOLID YELLOW = Ethernet link is trained, no activity.
 BLINKING YELLOW = Ethernet activity occurring.
 OFF = no Ethernet link established.
SAS LEDs GREEN or RED Indicates SAS link connectivity status.
 GREEN—no errors, SAS link is established.
 BLINKING GREEN—SAS activity occurring.
 RED—an error occurred.
 OFF—no SAS link is established.
Table 3.6 - SRM200 RTM LED Indicato
rs (Continued)
LED LED Color Description
LPC100 AMC
Iris Interface Card (IIC100)
IIC
LEDs
FPC100 AMC
Tektronix Communications | For Licensed Users | Unauthorized Duplication and Distribution Prohibited
