G10 Hardware Maintenance Guide 7.13.2 81
4
Storage Subsystem
Rev. 002-140228
SA200R Controller Enclosure Connectors
Table 4.3 lists the controller enclosure connectors. Refer to the G10 Installation Guide for
more information about how the G10 conn
ects to the storage arrays.
SA100R Controller Enclosure Rear Panel
The controller enclosure rear panel houses the SAS and Ethernet port connectors, power
supplies, and power switches (see Figure 4.5).

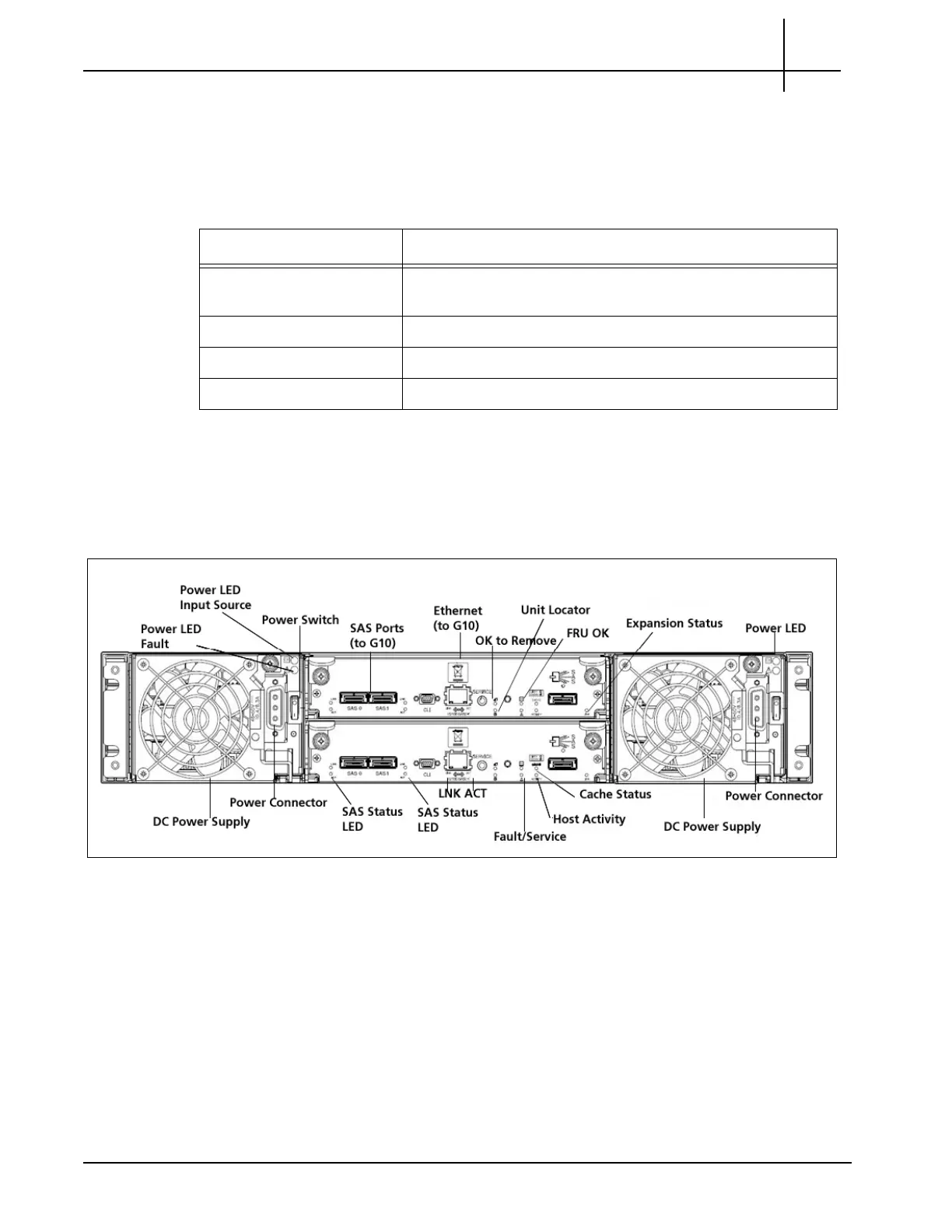

Figure 4.5 - SA100R Controller Enclosure Re
ar Panel (DC Power Supplies Shown)
Table 4.3 - Controller Disk Enclosure Connectors
Connector Description
SAS 0-SAS 3 Ports SAS Ports 0 and 1 connect to G10.
SAS Ports 2 and 3 are not used.
Ethernet Port Connects to G10.
Service Ports Used only by service personnel.
SAS Expansion Port Connects to another expansion enclosure.
Tektronix Communications | For Licensed Users | Unauthorized Duplication and Distribution Prohibited
