Blades and RTMs
Rev. 002-140228
10G Interconnect Card Connectors
The 10G Interconnect card provides an SFP+ 10G Ethernet interface on the front panel
(Figure 3.41). The card supports:
Fiber connections using an SFP+ module Ethernet cable
Copper connections using Direct Attach SFP+ copper cable

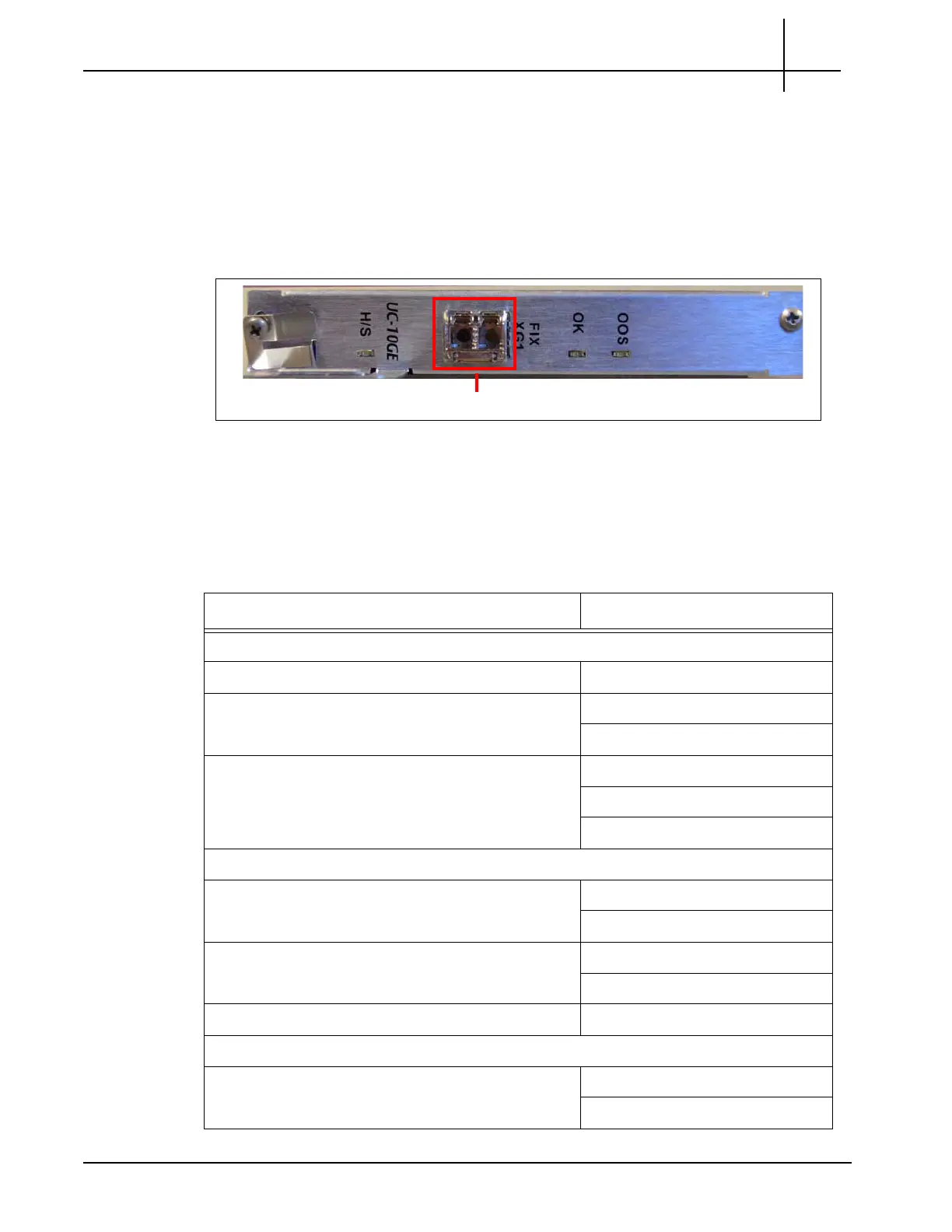

Figure 3.41 - 10G Interconnect Card Connecto
r (Shown with Fiber SFP module)
G10 HARDWARE COMPONENT NAME REFERENCE
Table 3.28 lists the naming conventions used to identify the various G10 components.
Table 3.28 - G10 Component Names
Component Current Name
Blades
Carrier Blade (see Iris Interface Cards) CAB100
Iris Interface Cards IIC100
IIC200
Applications Blades IAP100
IAP200
IAP320
Advanced Mezzanine Cards (AMCs)
IIC100 AMCs LPC100 AMC
FPC100 AMC
IIC200 AMCs LPC200 AMC
FPC200 AMC
IAP100 AMC SAS AMC
Rear Transition Modules (RTMs)
IIC100 RTMs SRM100 RTM
TRM100 RTM
