Tektronix GeoProbe G10 User Manual

G10 Hardware Maintenance Guide 7.13.2 30 
2
Chassis Subsystem
Rev. 002-140228
ELECTRO-STATIC DISCHARGE POINTS

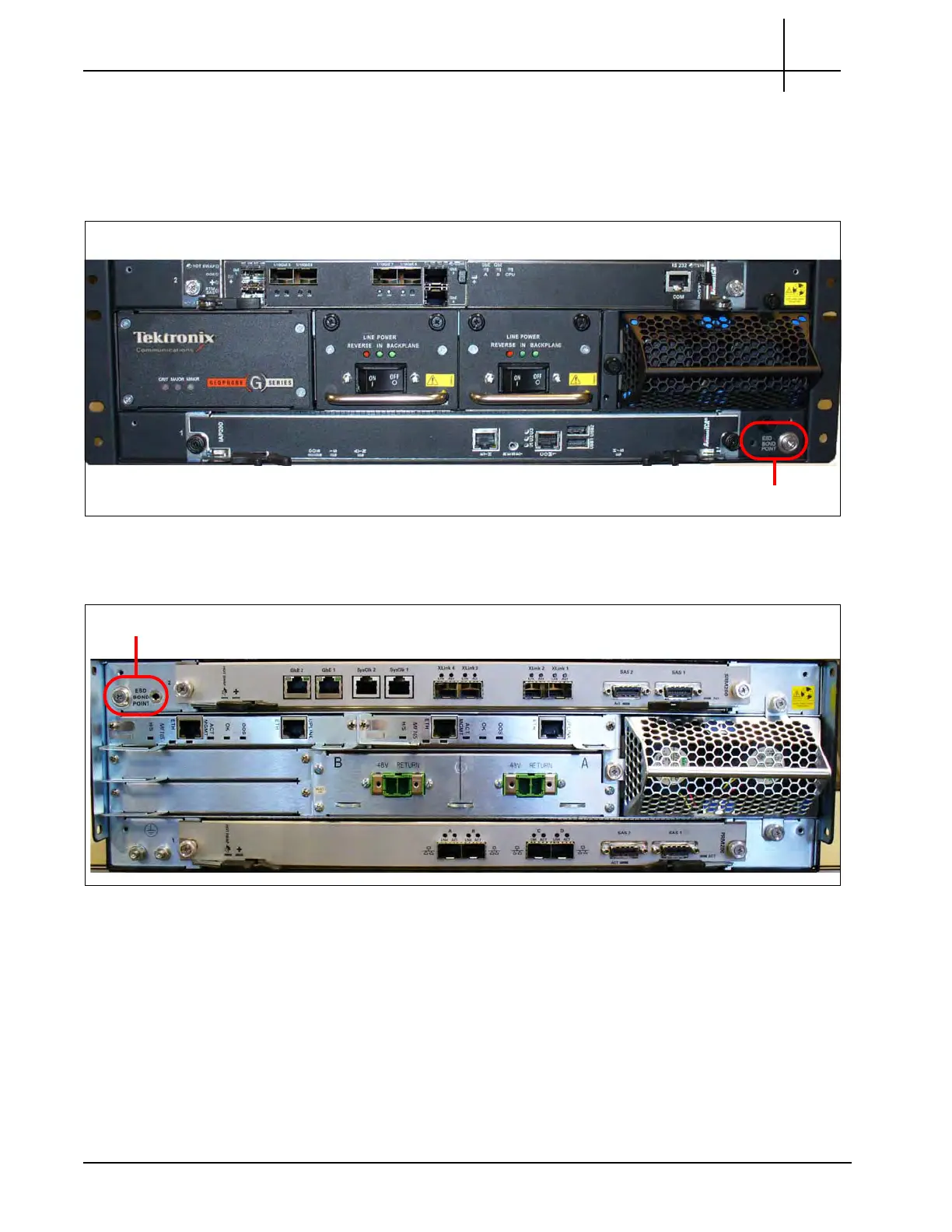

The Electro-Static Discharge (ESD) points are locations where you can plug an ESD wrist
strap to the chassis to prevent electrical damage when you handle the boards. Figure 2.8
displays the front ESD point.
Figure 2.8 - Front ESD Point
Figure 2.9 displays the rear ESD point.
Figure 2.9 - Rear ESD Point
Front ESD
Rear ESD
Tektronix Communications | For Licensed Users | Unauthorized Duplication and Distribution Prohibited
