Tektronix GeoProbe G10 User Manual

G10 Hardware Maintenance Guide 7.13.2 32 
3
Blades and RTMs
Rev. 002-140228
IRIS INTERFACE CARD
The Iris Interface Card (IIC) ships with two Advanced Mezzanine Cards (AMCs) mounted in
the ATCA carrier blade (CAB100). The CAB100 is used to provide connectivity between the
AMC cards and the ATCA backplane. It also provides management interfaces for the AMCs
and the ATCA shelf management modules (ShMM), which are located on the back of the
probe.
Iris currently supports two IICs:
 IIC200 (CAB100 + LPC200 AMC + FPC200 AMC)
 IIC100 (CAB100 + LPC100 AMC + FPC100 AMC)

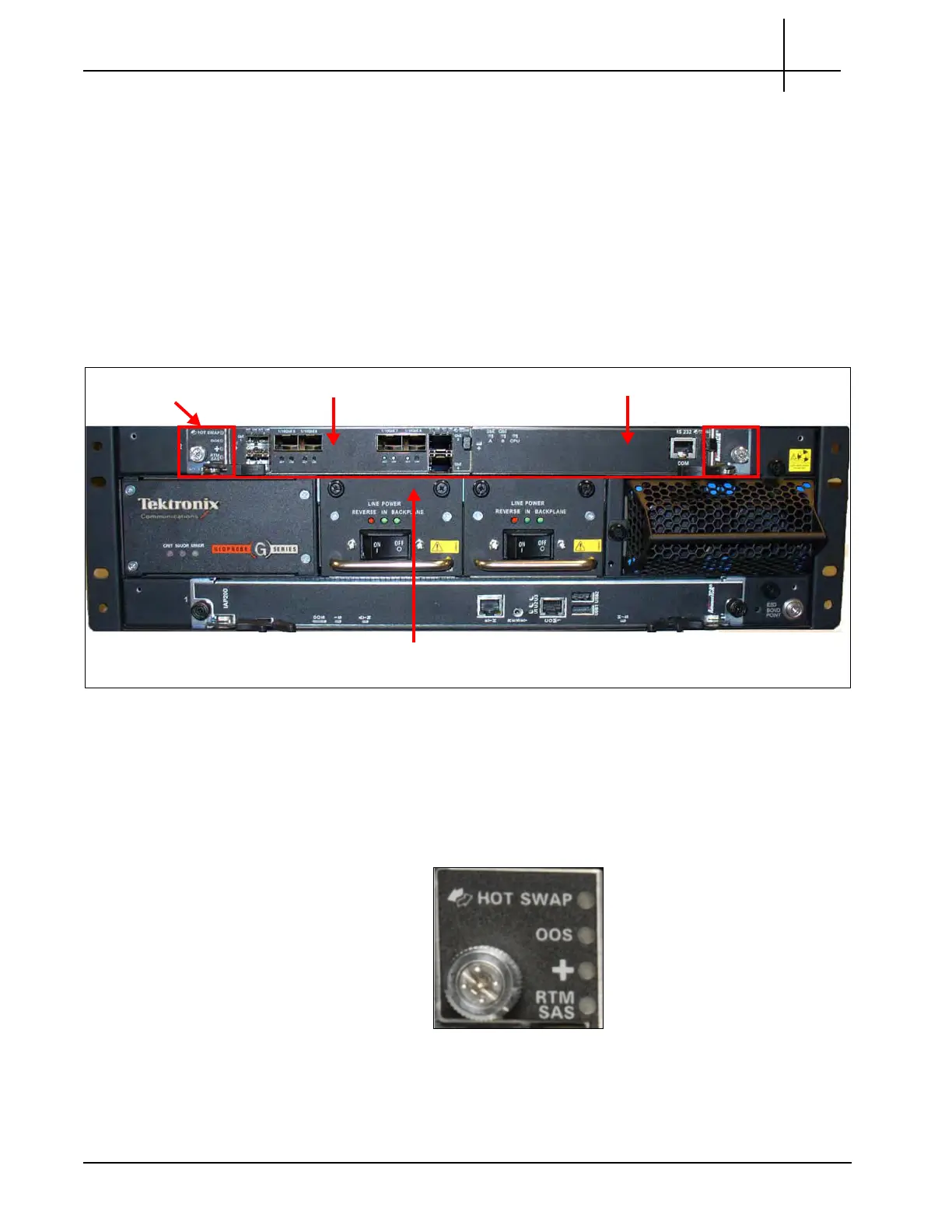

Figure 3.1 - G10 IIC100
IIC LEDs
A total of four LEDs are visible from the left side of the IIC100 or IIC200 front panel that are
part of the CAB100 carrier blade (see Figure 3.2).
Figure 3.2 - IIC100 or IIC200 Front Panel LEDs
CAB100 Carrier Blade
IIC
LEDs
LPC200 AMC or LPC100 AMC FPC200 AMC or FPC100 AMC
