Chassis Subsystem
Rev. 002-140228
AC PEMs

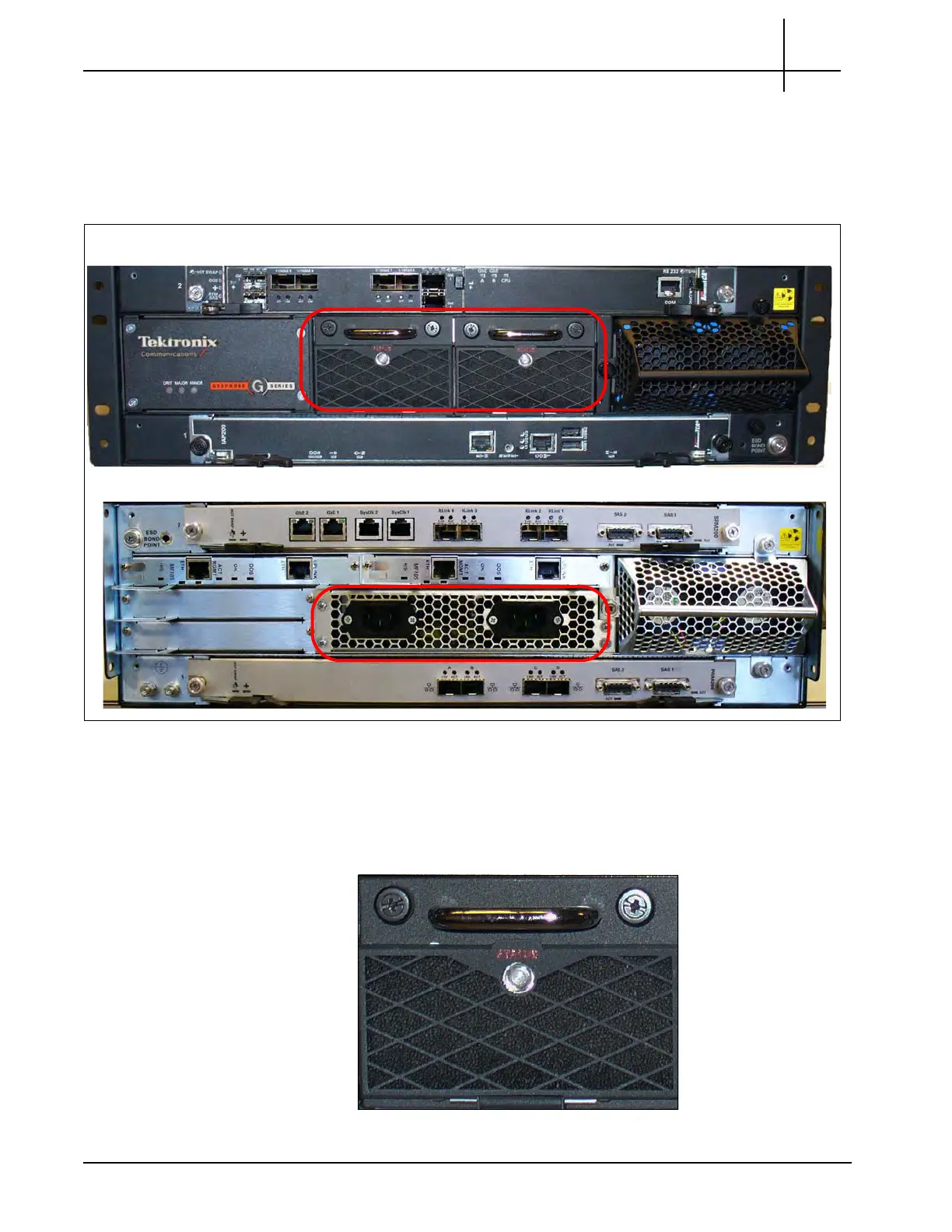

Figure 2.5 shows the G10 AC PEMs front view and rear view. Both A and B side power
modules operate within the specifications listed in Power and Ground Requirements. Refer to
Maintenance Guidelines for replacement details.
Figure 2.5 - G10 AC PEMs
Front Panel LEDs
Figure 2.6 displays the AC Front Panel PEM LED.
Figure 2.6 - AC PEM Front Panel LED
G10 Front View
G10 Rear View
