G10 Hardware Maintenance Guide 7.13.2 160
ď€
A
Rev. 002-140228
IIC200
The IIC200 SFP module socket configurations vary depending on the port. When the handle is
in the closed and locked position, you insert the SFP with either the handle in the UP or
DOWN position, depending on the port. Ensure that you are installing the SFP module in the
correct orientation for the port. Refer to the following table and Figure A.3.

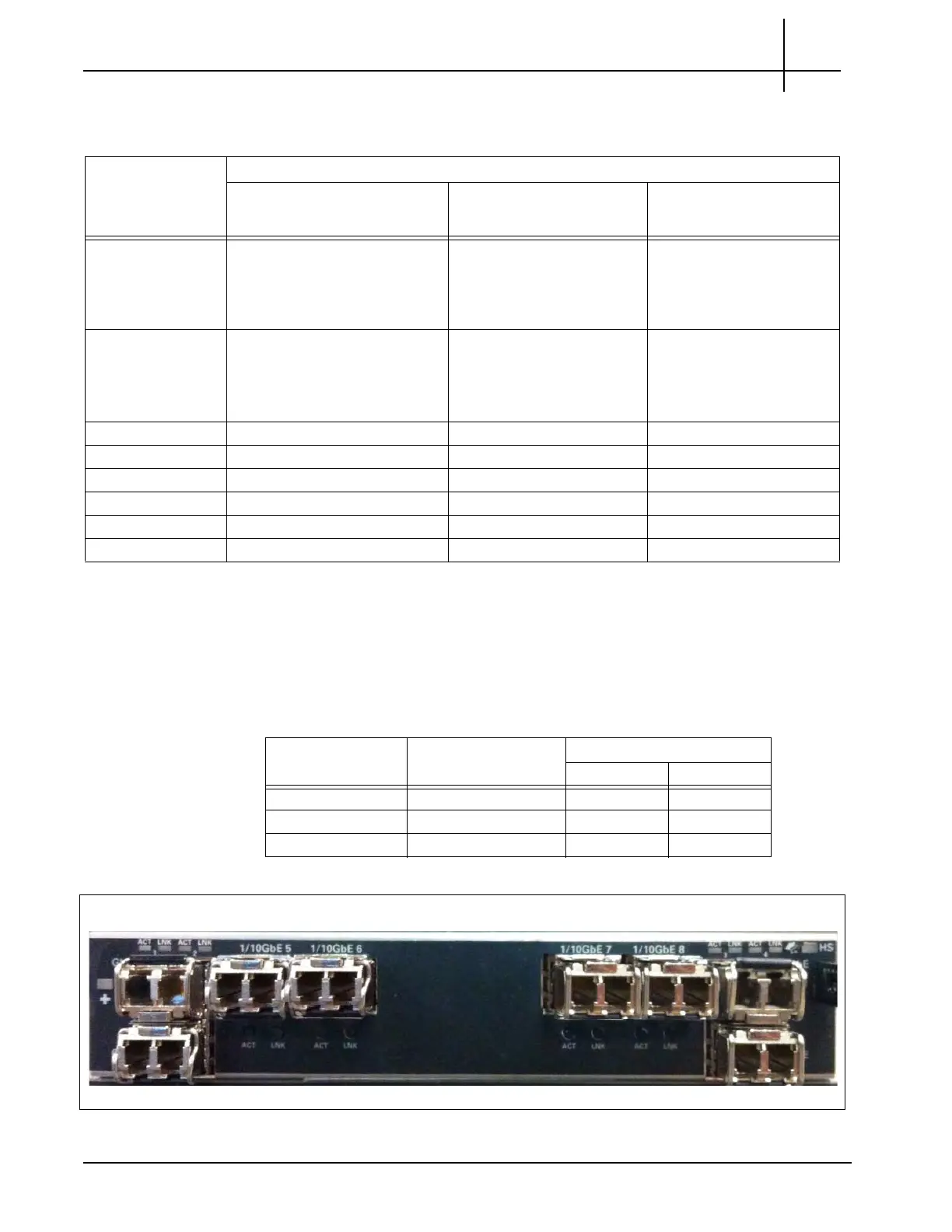

Figure A.3 - IIC200 SFPs
Table A.2 - SFP Replacement Procedures
G10 Blade
Type of SFP Replacement
Same SFP Speed and Mode as
Orig
inal
Change SFP Speed
(1G to 10G or
10G to 1G)
Change SFP Mode
(multi- to single- or
single- to multi-)
IIC200 Reboot the IIC200. Update the Physical Device
Po
rt setti
ngs in Probe Details
tab in Iris Admin.
Reboot IIC200
Reboot the IIC200.
IIC100 No reboot necessary. Update the Physical Device
Port setti
ngs in Probe Details
tab in Iris Admin.
Reboot the IIC100.
No reboot necessary.
PRM200 RTM Reboot the IAP200. Reboot the IAP200. Reboot the IAP200.
PRM300 RTM Reboot the IAP320. Reboot the IAP320. Reboot the IAP320.
PRM100 RTM N/A N/A N/A
IAP320 N/A N/A N/A
IAP200 N/A N/A N/A
IAP100 N/A N/A N/A
G10 Port
Insert SFP with
Closed Handle:
Port TX/RX
Left Right
1 GbE 1 and 3 UP TX RX
1/10GbE 5-8 DOWN RX TX
1 GbE 2 and 4 DOWN RX TX
RX
GbE 1
RXTX TX
RX RXTX TX
RX
RX
TX
TX
RXTX
RX TX
1/10 GbE 5
GbE 2
1/10 GbE 6 1/10 GbE 7 1/10 GbE 8 GbE 3
GbE 4
