G10 AC units do not have on/off switches; you must disconnect the AC plug from the rack
power supply.
A switch or circuit-breaker must be included in the building installation and it must be in
close proximity to the equipment and within easy reach of the operator. It must be marked as
the disconnecting device for the equipment.
Circuit Protection
Tektronix recommends using the FP100 Fuse Panel (for DC units) or equivalent device for
providing circuit protection for the G10 probe and SAS sto
rage array. Ensure the device is
installed in the same rack or an adjacent rack as the equipment.
Tektronix equipment, cables, and wiring diagrams comply with industry standard DC
electrical color coding. Please ensure proper cabling if your equipment and cabling use
nonstandard DC electrical color coding. Improper cabling can cause damage to equipment
or personal injury.
FP100 Fuse Panel
The FP100 is a GMT dual circuit fuse panel that provides DC power connection, input fusing,
and circuit protection for the GeoProbe G10 and SAS Storage Array (see Figure 6.2). The
fuse panel is not applicable in AC power configurations.

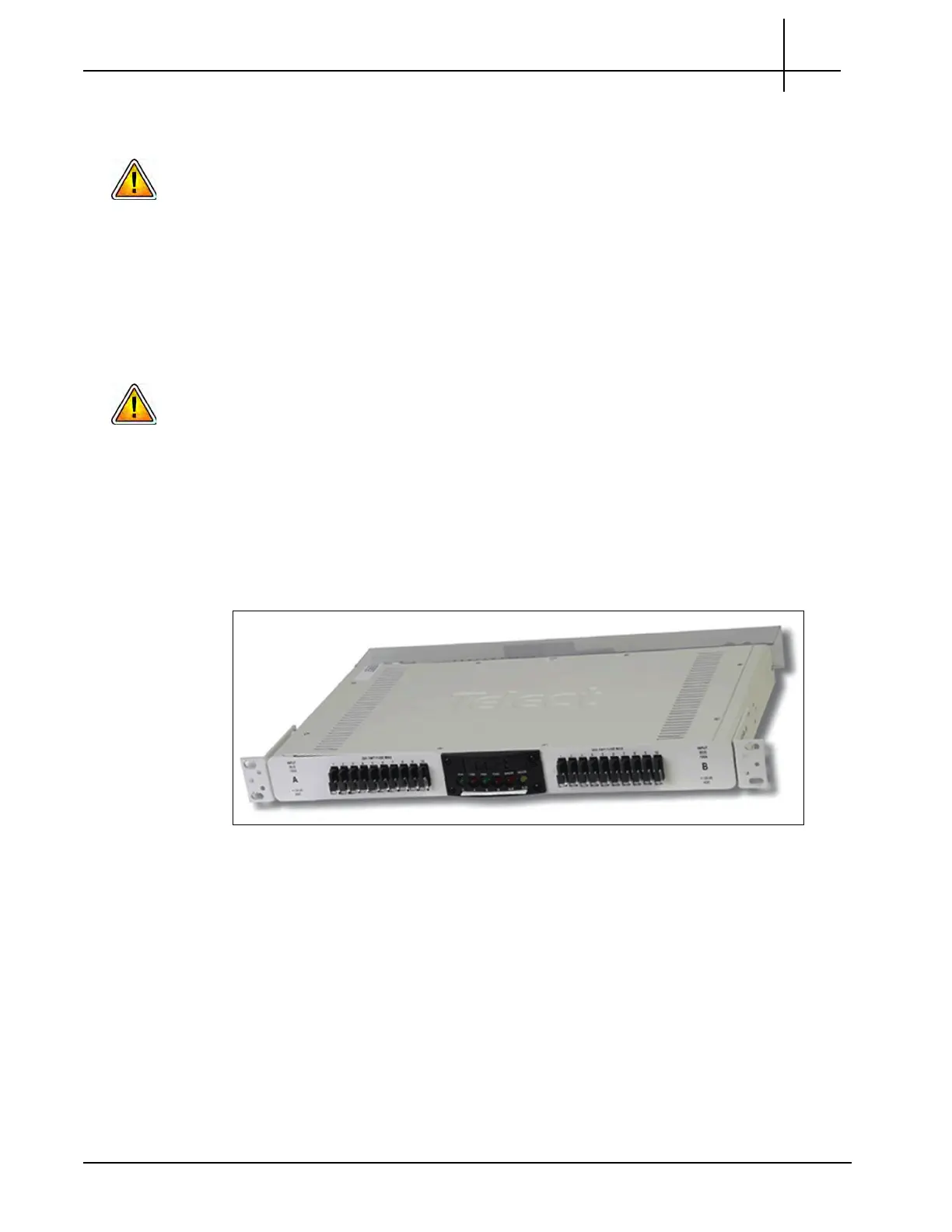

Figure 6.2 - Fuse Panel Front View
The fuse panel contains two separate circuits: A and B. In eac
h circuit, current flows from the
input through the fuse bus. When you install a fuse in a fuse holder, it completes the circuit to
the output connector. When a fuse fails, it sends a fail signal to the Fuse Fail Alarm circuit.
