G10 Hardware Maintenance Guide 7.13.2 75
4
Storage Subsystem
Rev. 002-140228

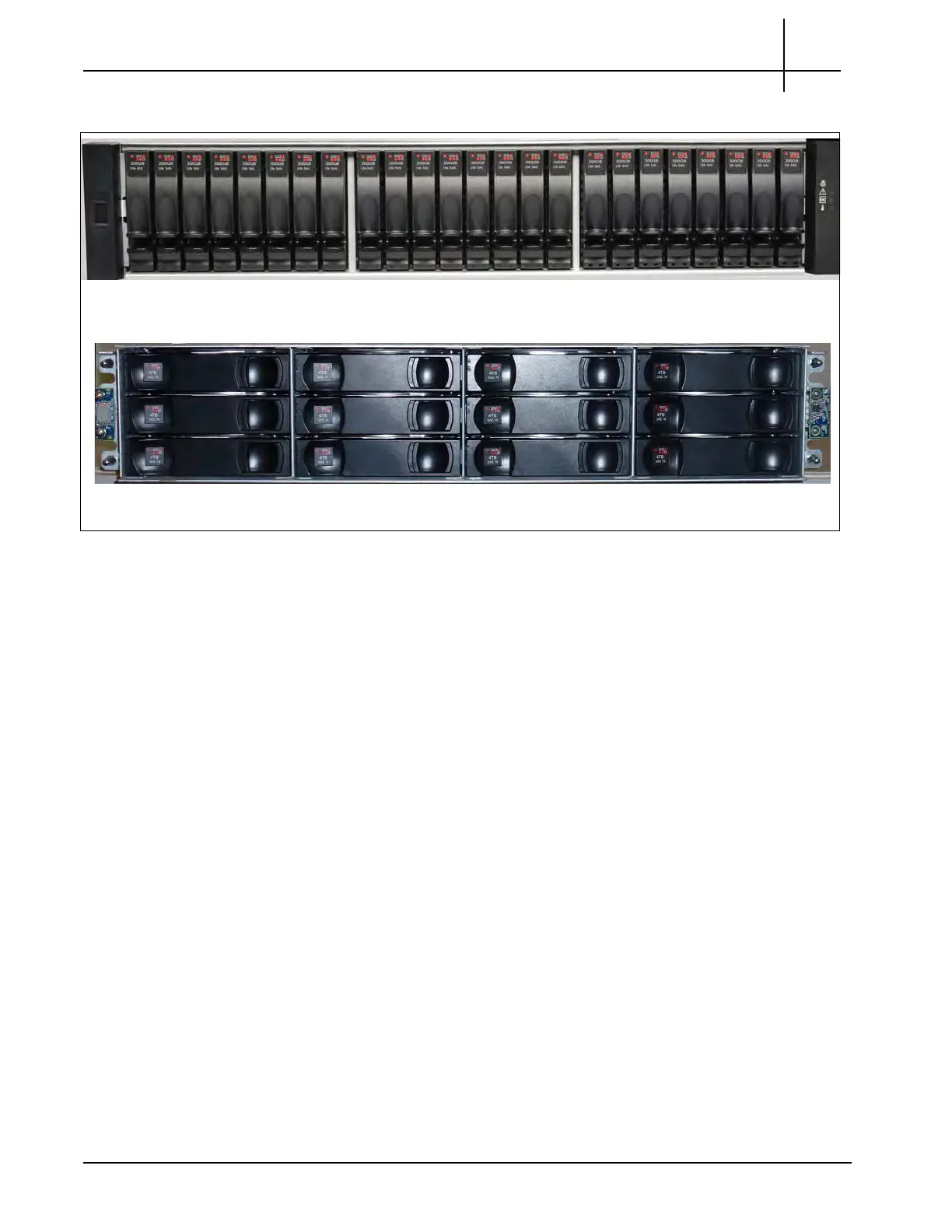

Figure 4.1 displays a SAS 24-disk enclosure and a Near-Line SAS 12-disk enclosure.
Figure 4.1 - Disk Enclosure Views
Supported Models
The G10 supports the following storage enclosures:
Controller Enclosure
- 24-disk SA100R or SA200R (300 GB, 600 GB, or 900 GB drives)
Expansion Enclosure
- 24-disk SA100J or SA200J (300 GB, 600 GB, or 900 GB drives)
- 12-disk SA210J (4 TB drives)
Storage Enclosure Features
The disk enclosure contains the following hardware features:
Requires 2 rack units (2U) of space
SAS connectors
- SA200R/ SA200J/SA210J support 6 Gbps connectors
- SA100R/SA100J support 3 Gbps connectors
SAS 24 Disk Enclosure
(SA100R/SA100J, SA200R/SA200J
Near-Line SAS 12-Disk Enclosure
(SA210J)
