Blades and RTMs
Rev. 002-140228
FPC200 AMC
The FPC200 AMC is located on the right side of the IIC200 (Figure 3.4) and serves as the
main flow processor. The main components of the FPC200 AMC are:
Flow Network Processor—includes a multi-core network processing unit (NPU) to
provide optimum packet processing
Memory—includes 16 GB of DRAM
Two GbE channels—for control plane activity and a 10 Gbps fabric between the
IIC200 and Applications blade through the backplane

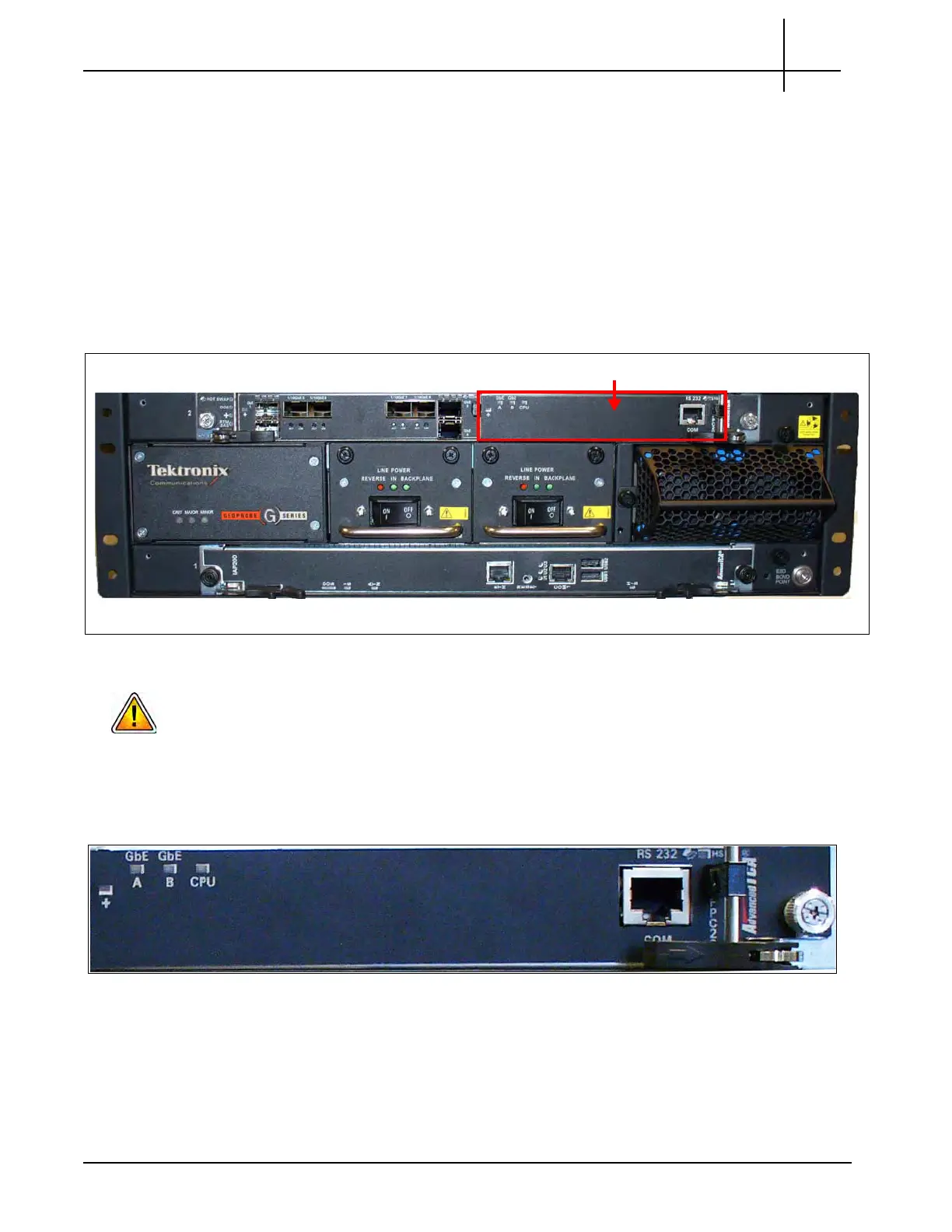

Figure 3.4 - G10 IIC200 - FPC200 AMC
DO NOT remove AMCs when the IIC is powered on; refer to LPC and FPC AMCs (IIC100 or
IIC200) for removal/replacement details. Call Tektronix Technical Support for any questions
about removing AMCs.
FPC200 AMC LEDs
Figure 3.5 shows the FPC200 AMC LEDs located on the front panel.
Figure 3.5 - FPC200 AMC LEDs
