G10 Hardware Maintenance Guide 7.13.2 162 
A
Rev. 002-140228
PRM200 RTM or PRM300 RTM
Insert 1G and 10G SFPs with closed handle in UP position (Figure A.6):
 Port A and Port B—1G Ethernet ports
 Port C and Port D—10G Ethernet ports (only used in multiprobe configurations)

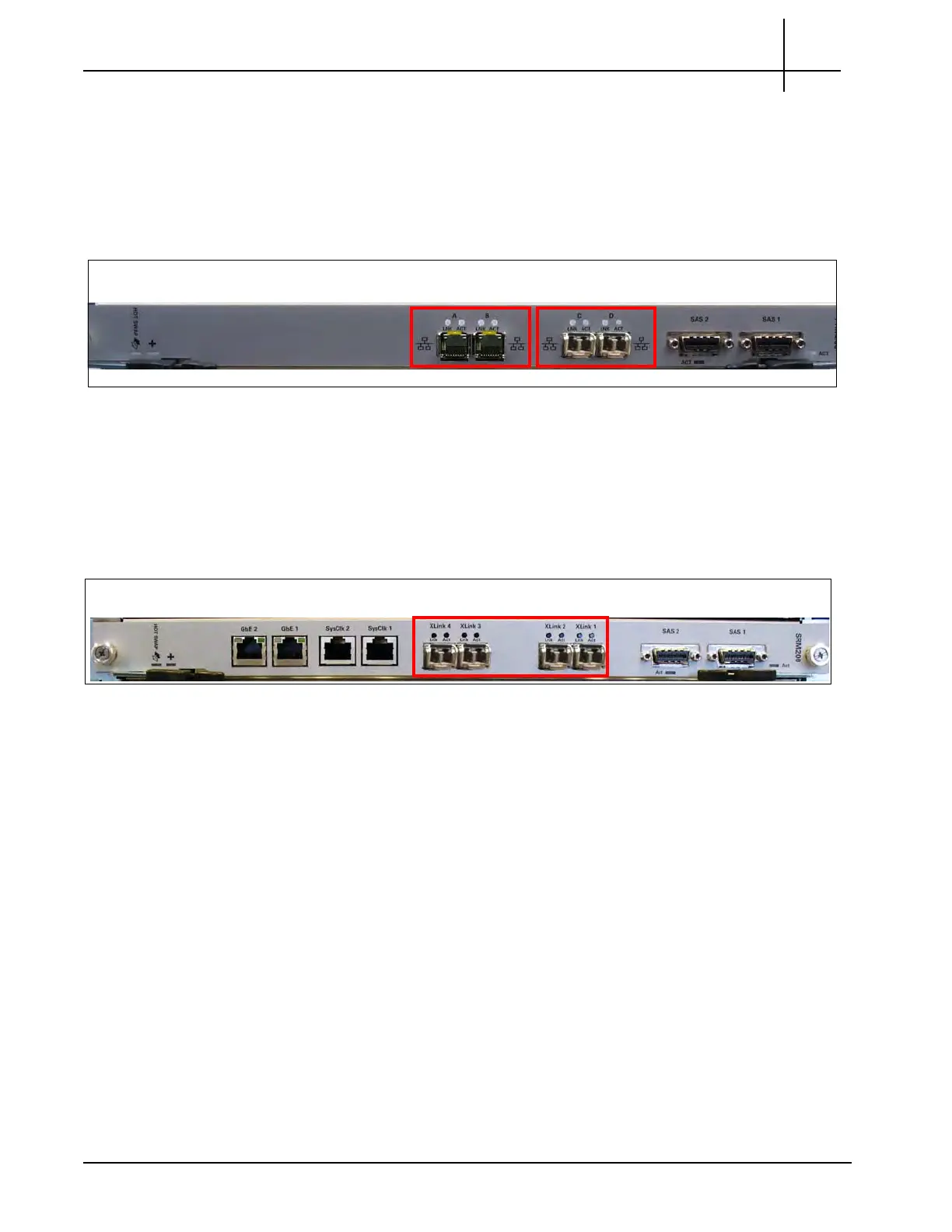

Figure A.6 - PRM200 RTM or PRM300 RTM
SFPs
SRM200 RTM
Insert 10G SFPs with closed handle in UP position (Figure A.7):
 Xlink 1-4 ports—used in multiprobe configurations
Figure A.7 - SRM200 RTM SFPs
1G Ports A and B 10G Ports C and D
Four Xlink Ports
