G10 Hardware Maintenance Guide 7.13.2 45
3
Blades and RTMs
Rev. 002-140228
LPC100 AMC
The LPC100 AMC (Figure 3.15) is located on the left side of the IIC100 and provides eight 1G
Ethernet connections on front panel. The Ethe
rnet connections support:
- Optical or electrical Ethernet links
- LC type optical ports provided by Small Form-Factor Pluggable (SFP) transceiver
modules
. R
efer to the SFP Reference appendix for details.

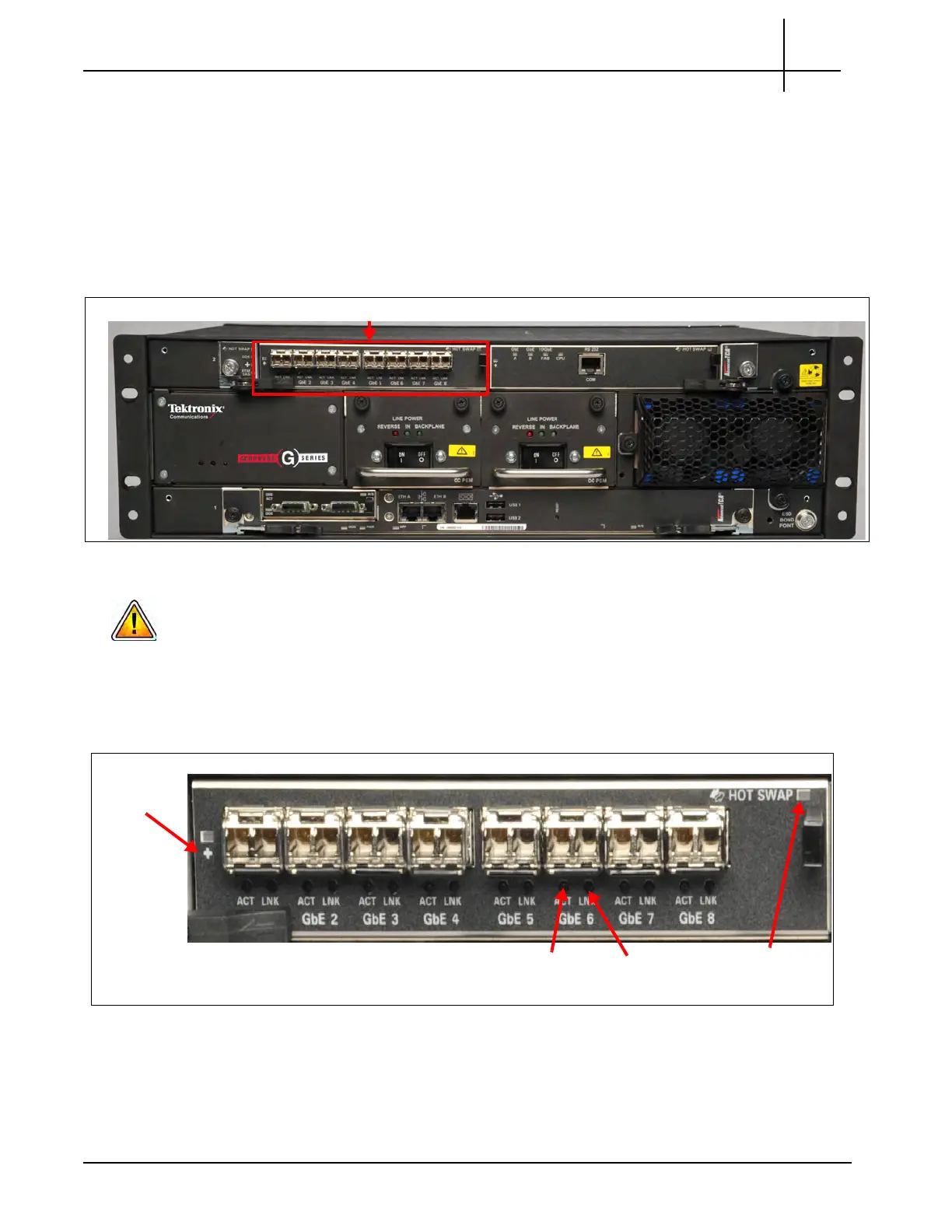

Figure 3.15 - G10 IIC - LPC100 AMC
DO NOT remove AMCs when the IIC is powered on; refer to LPC and FPC AMCs (IIC100 or
IIC200) for removal/replacement details. Call Tektronix Technical Support for any questions
about removing AMCs.
LPC100 AMC LEDs
Figure 3.16 displays the LPC100 AMC LEDs.
Figure 3.16 - LPC100 AMC LEDs
GbE Port
Activity LED
GbE Port
Link LED
Health
LED
Hot Swap
LED
Tektronix Communications | For Licensed Users | Unauthorized Duplication and Distribution Prohibited
