G10 Hardware Maintenance Guide 7.13.2 99
5
Maintenance Guidelines
Rev. 002-140228
7. Detach the air filter from its frame.
8. Attach the new filter to the frame (Figure 5.11). Ensure that it is aligned with
the frame.

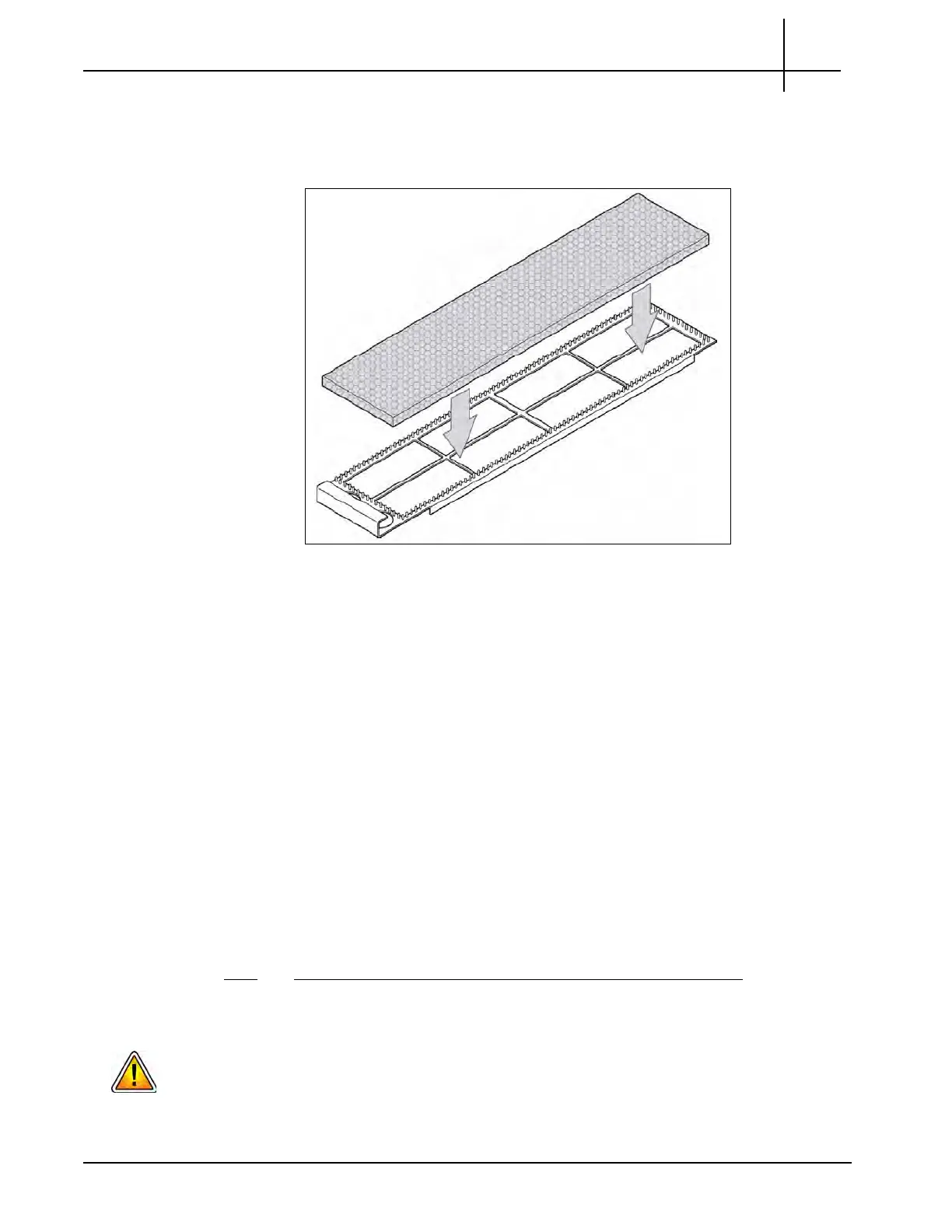

Figure 5.11 - Top Air Filter Replacement
9. Press the air filter to the hook-and-loop fastener on the frame.
10. Insert the frame into the shelf by placing the right edge in the guide.
11. Slide the frame into the slot until you feel resistance.
12. Push the frame upward until it snaps in place.
13. Perform one of the following actions:
Replace the bottom air filter (refer to Replacing the Bottom Air Filter).
Replace Fan Trays (refer to Replacing the Fan Tray).
Replacing the Bottom Air Filter
Perform the following steps to replace the bottom air filter.
Step Action
1. Put on an ESD wrist strap.
Electrostatic discharge can damage circuits or shorten their life. Before touching the blade
or electronic components, ensure that you are working in an ESD-safe environment.
2. Ensure that a new replacement filter is available.
Tektronix Communications | For Licensed Users | Unauthorized Duplication and Distribution Prohibited
