G10 Hardware Maintenance Guide 7.13.2 37
3
Blades and RTMs
Rev. 002-140228
LPC200 AMC
The LPC200 AMC (Figure 3.6) is located on the left side of the IIC100 and provides 1G and
10G Ethernet connections on front panel. The
Ethernet connections support:
- Optical or electrical Ethernet links
- LC type optical ports provided by Small Form-Factor Pluggable (SFP) transceiver
modules
. R
efer to the SFP Reference appendix for details.

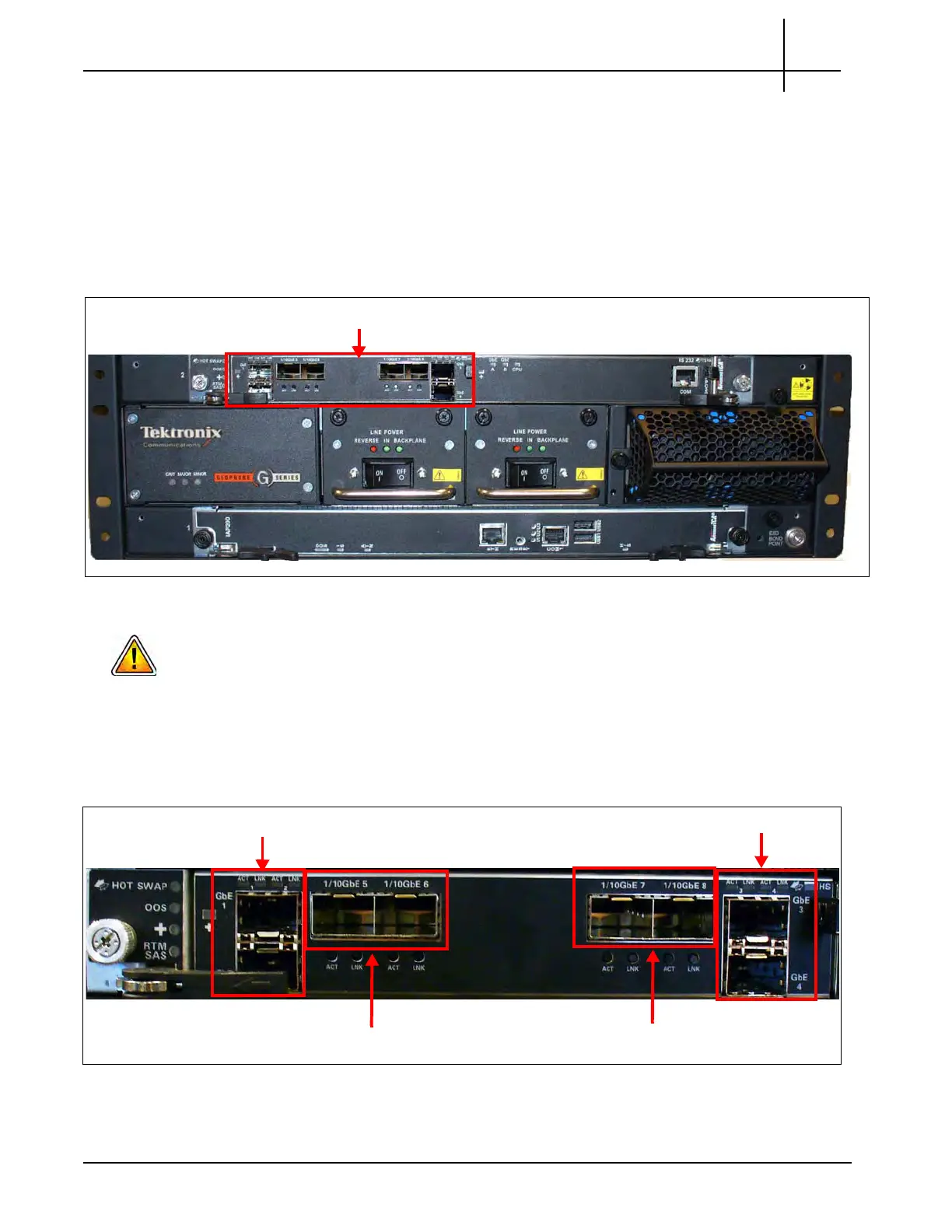

Figure 3.6 - G10 IIC200 - LPC200 AMC
DO NOT remove AMCs when the IIC200 is powered on; refer to LPC and FPC AMCs
(IIC100 or IIC200) for removal/replacement details. Call Tektronix Technical Support for any
questions about removing AMCs.
LPC200 AMC Connectors
Figure 3.7 displays the LPC200 AMC connectors. The LPC200 AMC supports eight ports,
four that support 1G Ethernet traffic, and four th
at support either 10G or 1G traffic.
Figure 3.7 - LPC200 AMC Connectors
1/10 GbE Port 5 and 6
1 GbE Port 1 and 2
1 GbE Port 3 and 4
1/10 GbE Port 7 and 8
Tektronix Communications | For Licensed Users | Unauthorized Duplication and Distribution Prohibited
