G10 Hardware Maintenance Guide 7.13.2 134
5
Maintenance Guidelines
Rev. 002-140228

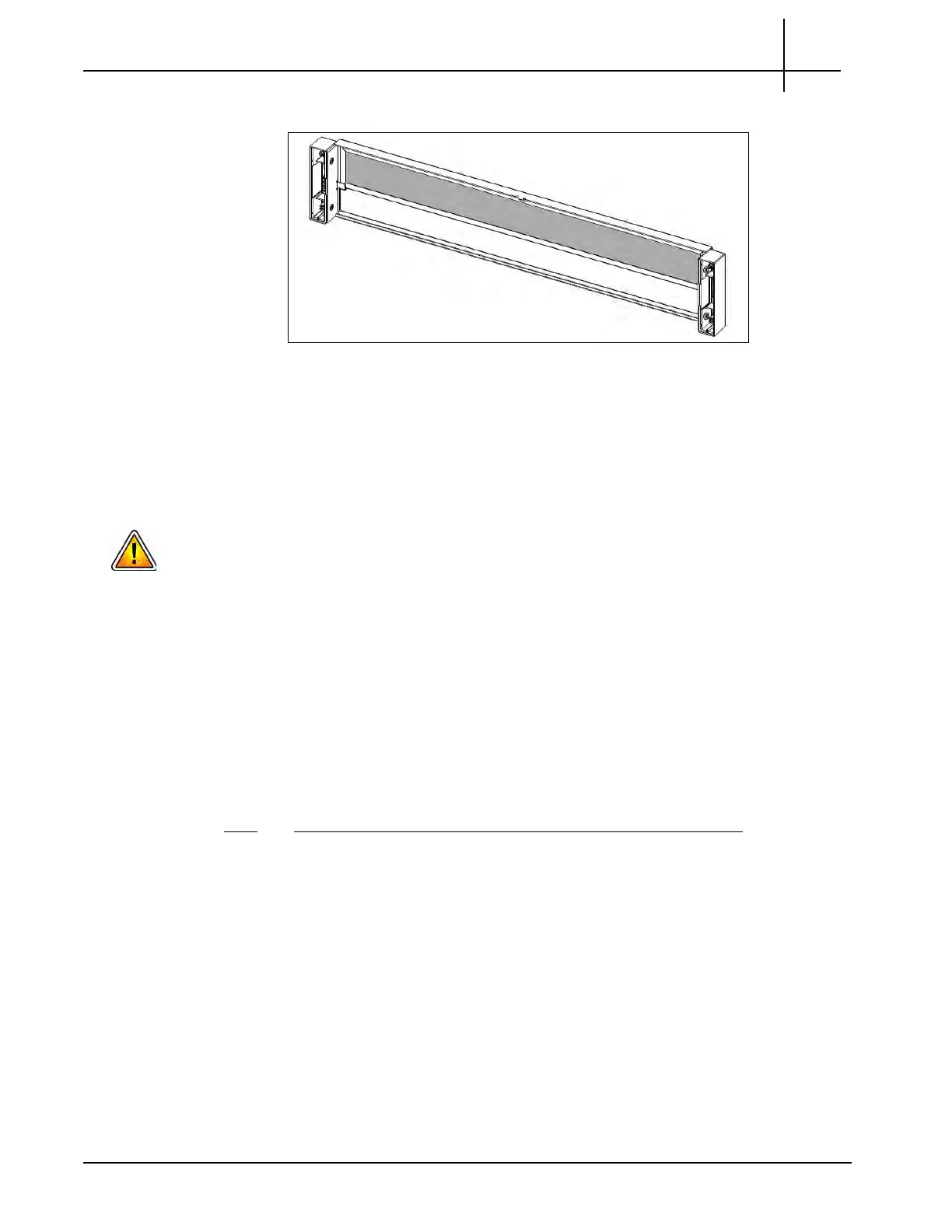

Figure 5.45 shows a properly seated air filter.
Figure 5.45 - Air Filter Replacement
6. After the filter is installed successfully within
the bezel, you can re-attach the
bezel to the front of the enclosure. Refer to Installing the Bezel for details.
Replacing a Controller or Expansion Module
Prior to replacing a controller module, you MUST power down the probe. See the Power
Down Procedure for details on powering down the probe.
If you are replacing both controllers, special commands must be performed before and after
hardware replacement. Contact Tektronix Communications Customer Support for
assistance.
Be sure to review Storage Array Maintenance Guidelines before proceeding to ensure
component compatibility.
Removing the Controller Module
Perform the following actions to remove a controller or expansion module.
Step Action
1. Contact Tektronix Communications Customer Support for assistance in
troubleshooting storage array issues. Storage Array Maintenance (SAMTCE)
alarms can be monitored in the IrisView Alarm Browser to help isolate failed
components.
2. Disconnect any cables from the failed enclosure module.
