Tektronix GeoProbe G10 User Manual

G10 Hardware Maintenance Guide 7.13.2 135 
5
Maintenance Guidelines
Rev. 002-140228
3. Turn the thumbscrews counterclockwise until they disengage from the module
(Figure 5.46).

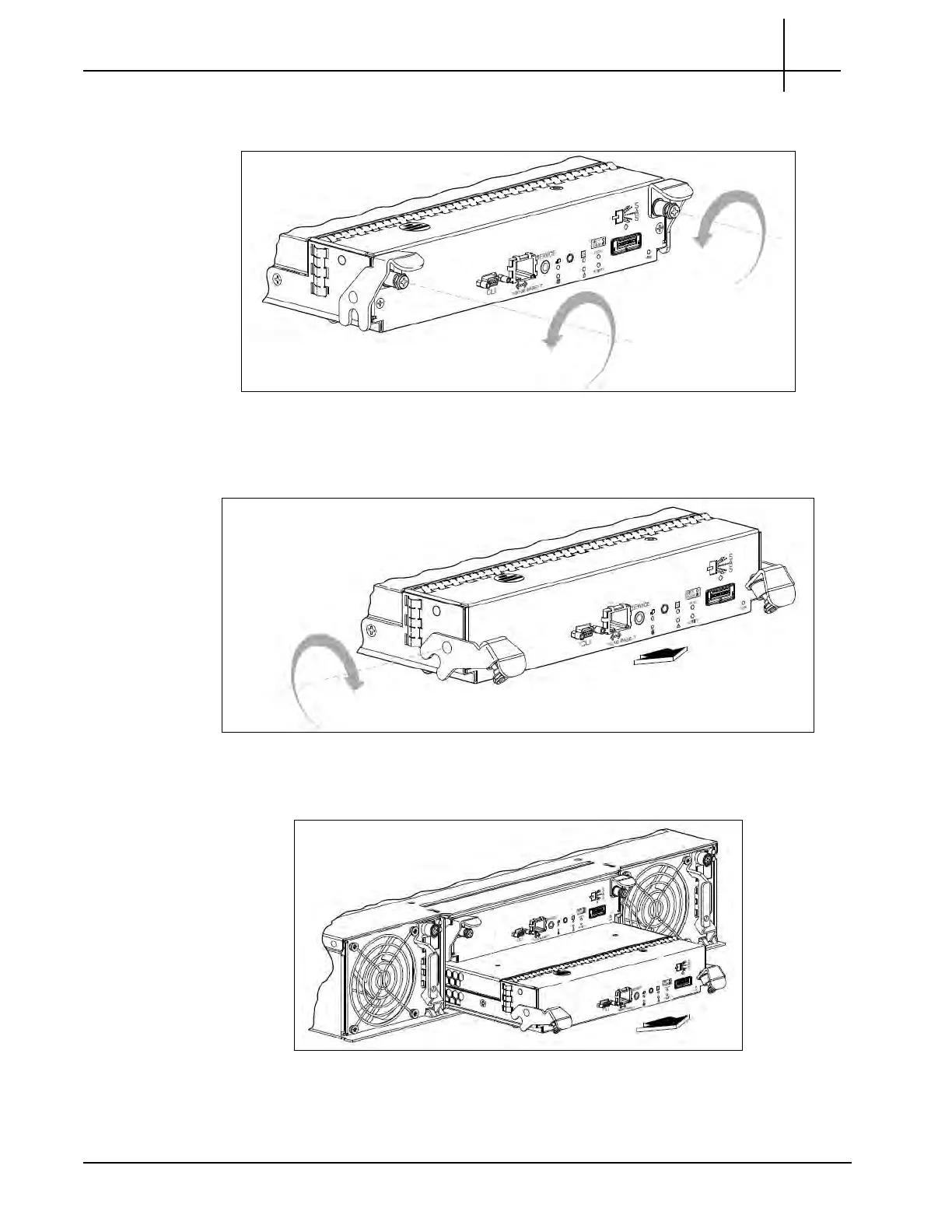

Figure 5.46 - Disengaging a Controller Module
4. Press both latches downward to disconnect the module from the midplane
(Figure 5.47).
Figure 5.47 - Extracting a Controller Module
5. Pull the module straight out of the enclosure (Figure 5.48).
Figure 5.48 - Removing a Controller Module
