G10 Hardware Maintenance Guide 7.13.2 63
3
Blades and RTMs
Rev. 002-140228
IAP100
The IAP100 Applications Blade (Figure 3.32) consists of a quad-core Intel Core Processor
with 32 Gb of DDR3 memory. The IAP100 connects to the front of the G10 chassis in Slot 1
(bottom slot). An
SAS AMC with two SAS ports provides connectivity to storage arrays for
store-to-disk (S2D) functionality. The blade suppor
ts dual 1Gb Ethernet links for the Base
interface that are PICMG 3.0 compliant and dual 10Gb Ethernet links for the Fabric interface
that are PICMG 3.1 (option 9 or 1) compliant. The IAP100 supports the PRM100 RTM or the
SSD-3400 RTM.

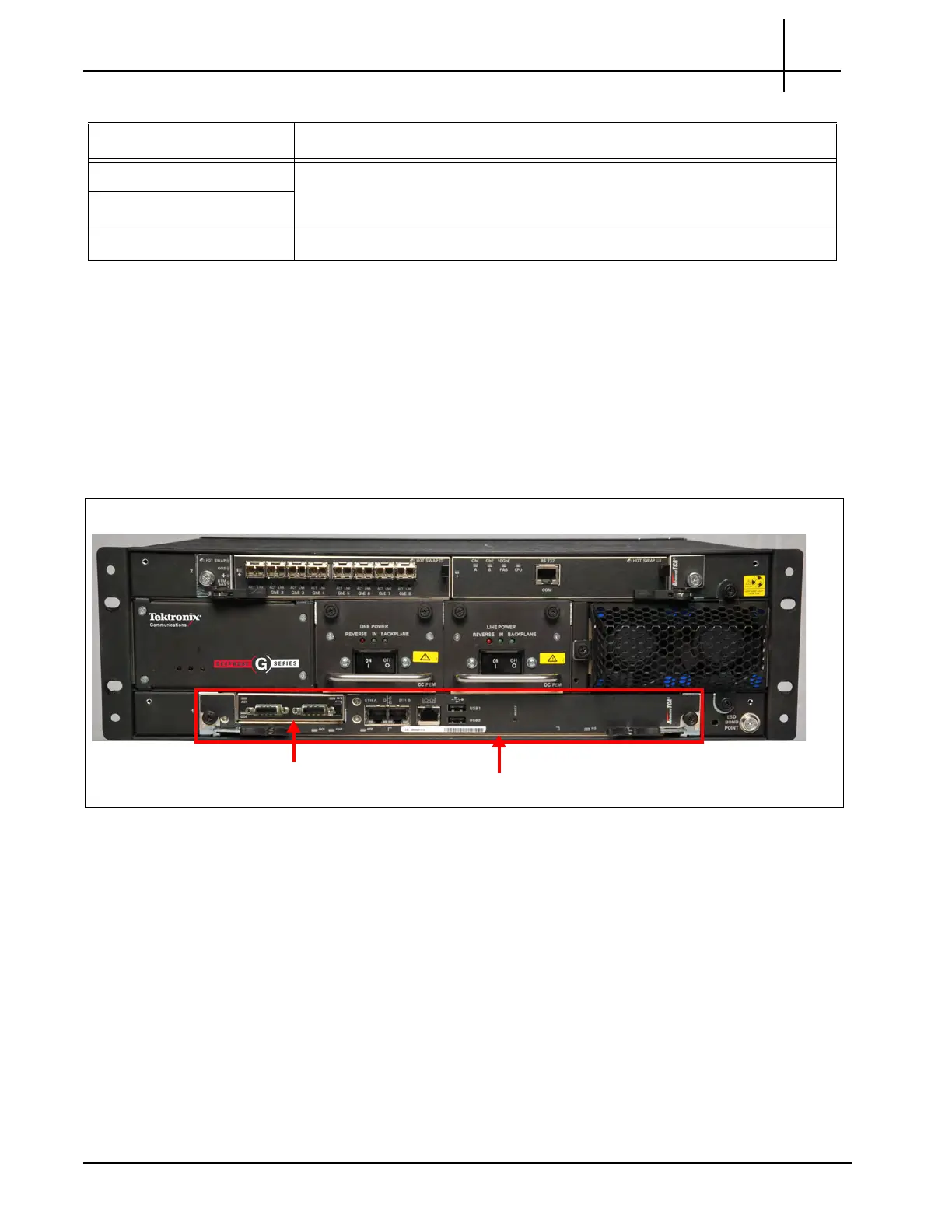

Figure 3.32 - G10 IAP100
ETH C Ethernet LAN used for inter-cage connection
in multicage configuration.
Supports 10G/1G/100Mb; normal usage is 10G for inter-cage
communication.
ETH D
SAS Ports (two) Provides connectivity to storage subsystem.
Table 3.21 - PRM300/PRM200
Connectors (Continued)
Connector Description
