G10 Hardware Maintenance Guide 7.13.2 43
3
Blades and RTMs
Rev. 002-140228
FPC100 AMC
The FPC100 AMC is located on the right side of the IIC100 (Figure 3.13) and serves as the
main flow processor. The main components of the FPC100 AMC are:
Flow Network Processor—includes a multi-core network processing unit (NPU) to
provide optimum packet processing
Memory—includes 4 GB or 8 GB of DRAM
Two GbE channels—for control plane activity and a 10 Gbps fabric between the
IIC100 and Applications blade through the backplane
The FPC100 AMC supports 4 GB or 8 GB of DRAM (new systems ship with 8 GB of DRAM).
The 4
GB FPC100 AMC can be replaced with the 8 GB FPC100 AMC in the field to support
Iris applications requiring additional DRAM. Contact Customer Support for details.

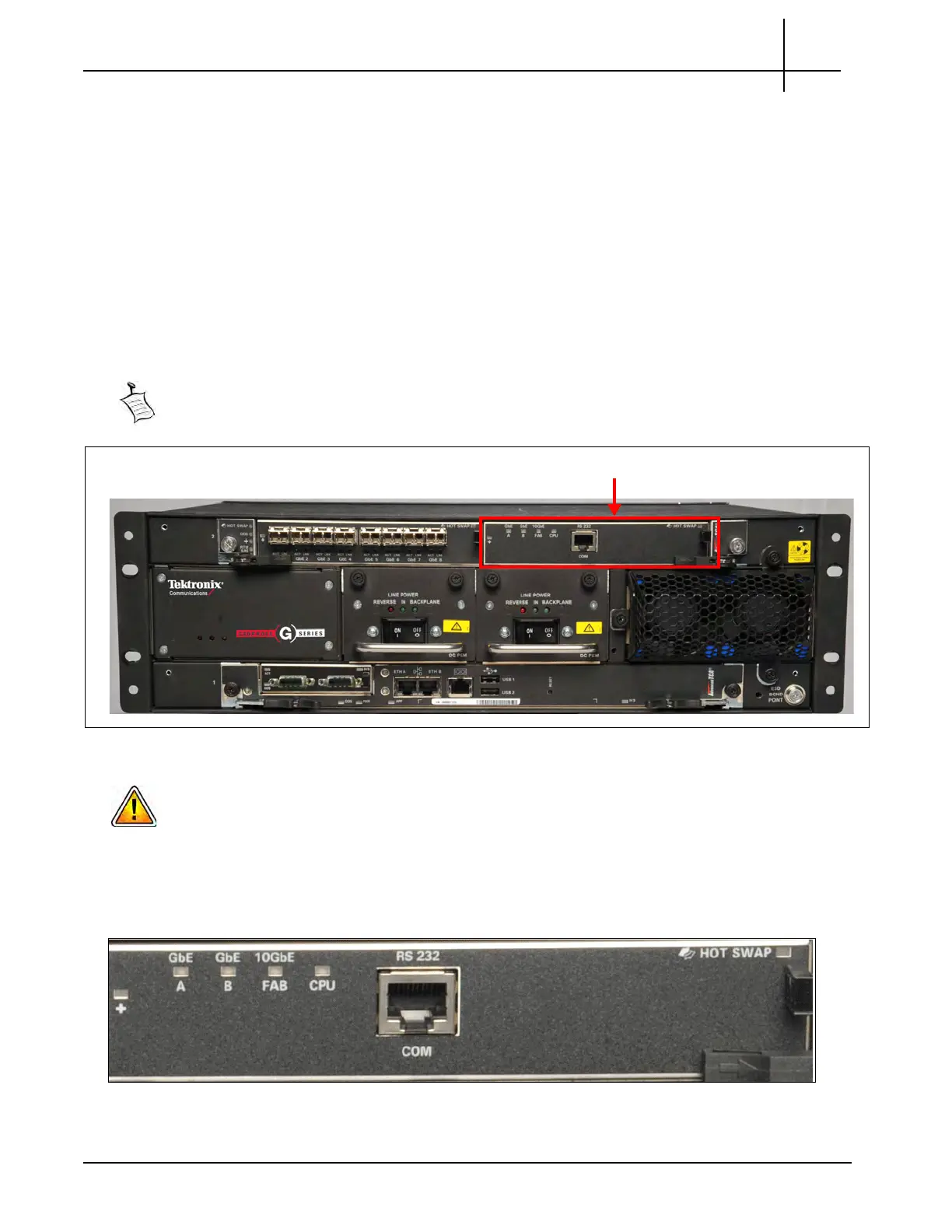

Figure 3.13 - G10 IIC100 - FPC100 AMC
DO NOT remove AMCs when the IIC is powered on; refer to LPC and FPC AMCs (IIC100 or
IIC200) for removal/replacement details. Call Tektronix Technical Support for any questions
about removing AMCs.
FPC100 AMC LEDs
Figure 3.14 shows the FPC100 AMC LEDs located on the front panel.
Figure 3.14 - FPC100 AMC Front Panel LEDs
Tektronix Communications | For Licensed Users | Unauthorized Duplication and Distribution Prohibited
