G10 Hardware Maintenance Guide 7.13.2 100
5
Maintenance Guidelines
Rev. 002-140228
3. Remove the front fan tray if it is not removed already (refer to Replacing the Fan
Tray).
4. Insert two fingers in the round holes at the front of the bottom air filter frame
an
d
pull the frame upward and out of its compartment (Figure 5.12). If you
cannot remove the frame with your fingers, you can also use a tool such as
a screwdriver.
When using a tool to remove the air filter frame, be careful not to damage the frame or the
G10 chassis.

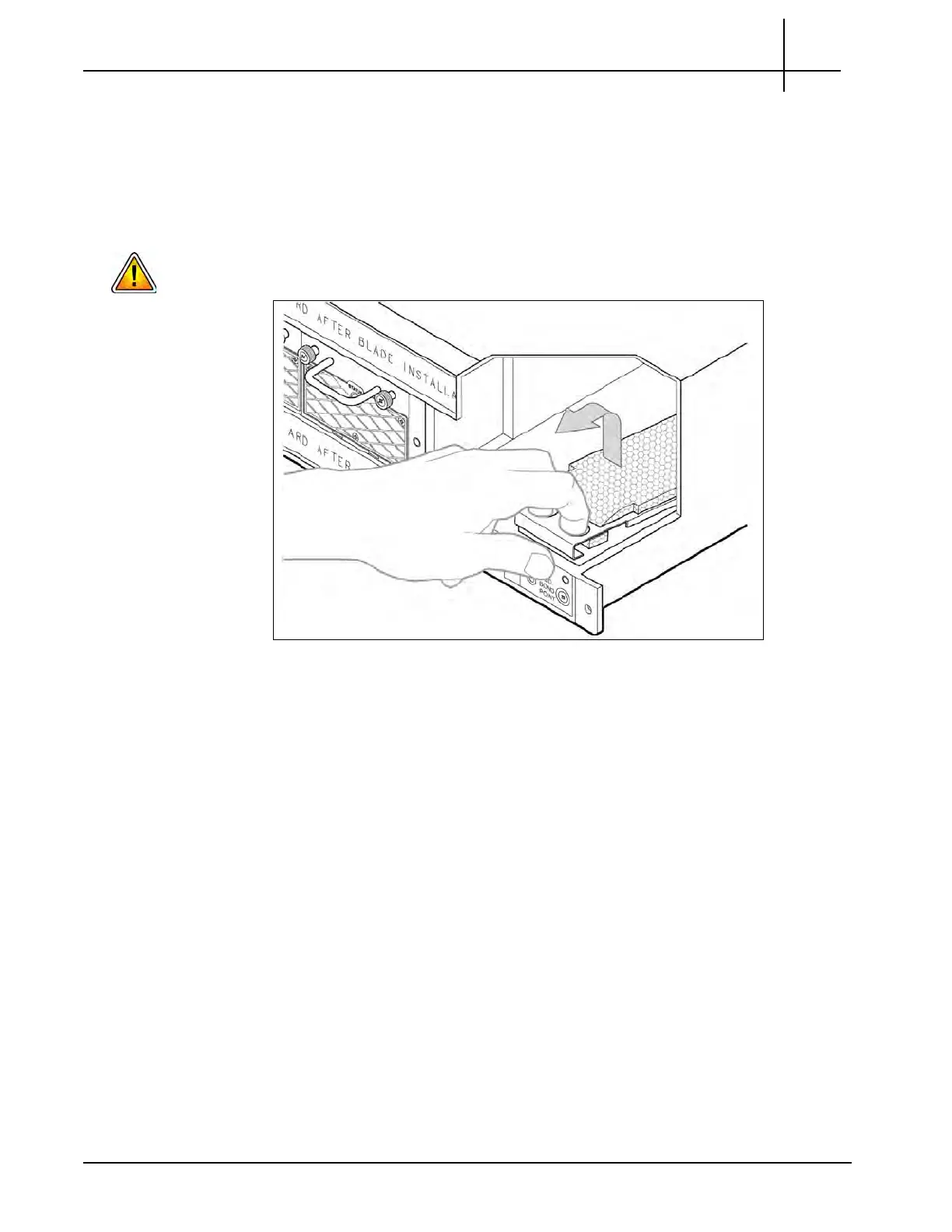

Figure 5.12 - Bottom Air Filter Removal
5. Pull the frame carefully out of the chassis.
6. Detach the air filter from its frame.
7. Attach the new filter to the frame. Ensure that it is aligned with the frame.
Tektronix Communications | For Licensed Users | Unauthorized Duplication and Distribution Prohibited
