G10 Hardware Maintenance Guide 7.13.2 101
5
Maintenance Guidelines
Rev. 002-140228

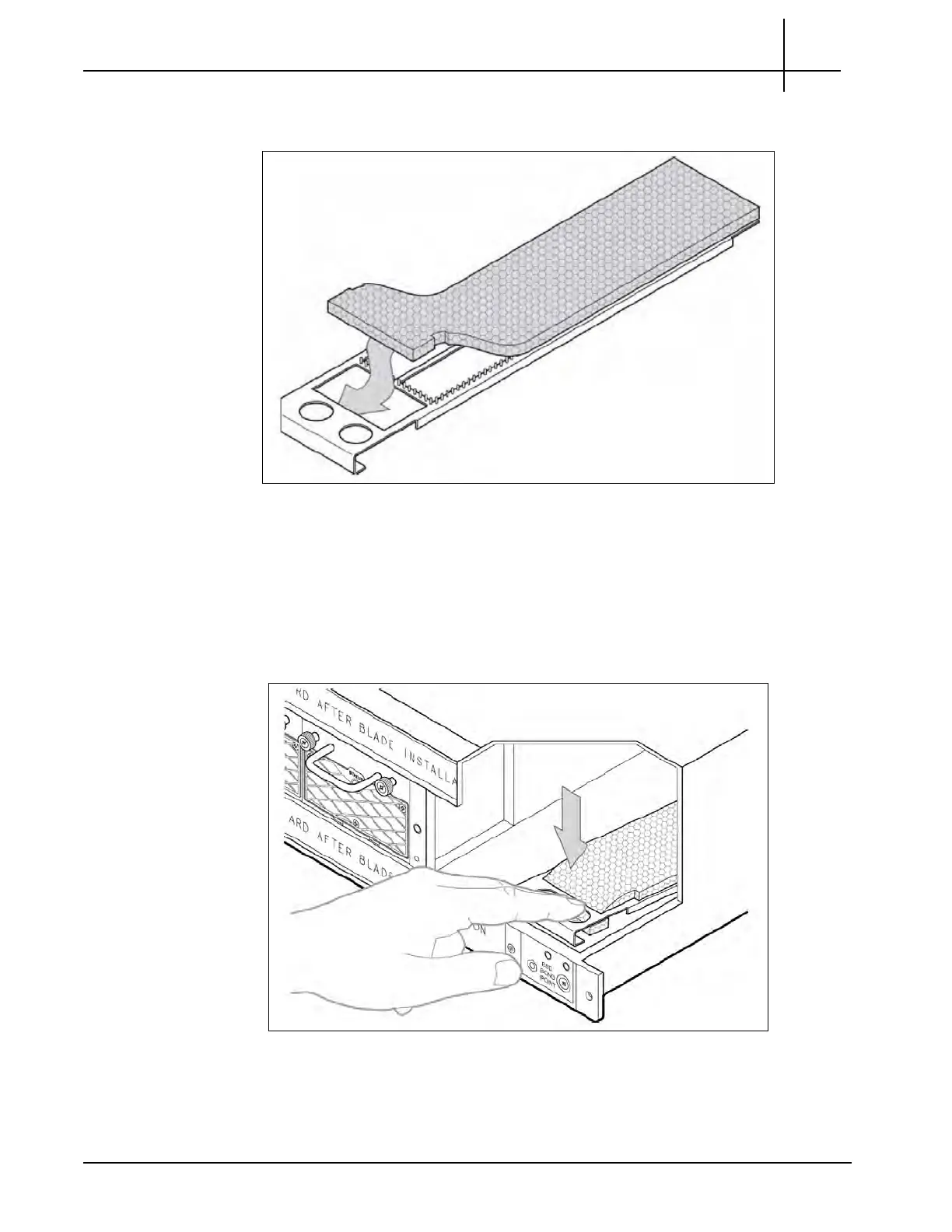

8. Pull the front end of the filter through the frame to the bottom of the frame as
shown in Figure 5.13.
Figure 5.13 - Bottom Air Filter Replacement
9. Press the air filter to the hook-and-loop fastener on the frame.
10. Insert the frame into the shelf by placing the right edge in the guide.
11. Slide the frame into the slot until you feel resistance.
12. Push the frame downward until it snaps in place.
Figure 5.14 - Bottom Air Filter Replacement
13. Insert the front fan tray (refer to Replacing the Fan Tray).
Tektronix Communications | For Licensed Users | Unauthorized Duplication and Distribution Prohibited
