5. Insert two fingers in the round holes at the front of the air filter frame and pull it
downward and out of its compartment (Figure 5.9). If you cannot remove the
frame with your fingers, you can also use a tool such as a screwdriver.
When using a tool to remove the air filter frame, be careful not to damage the frame or the
G10 chassis.

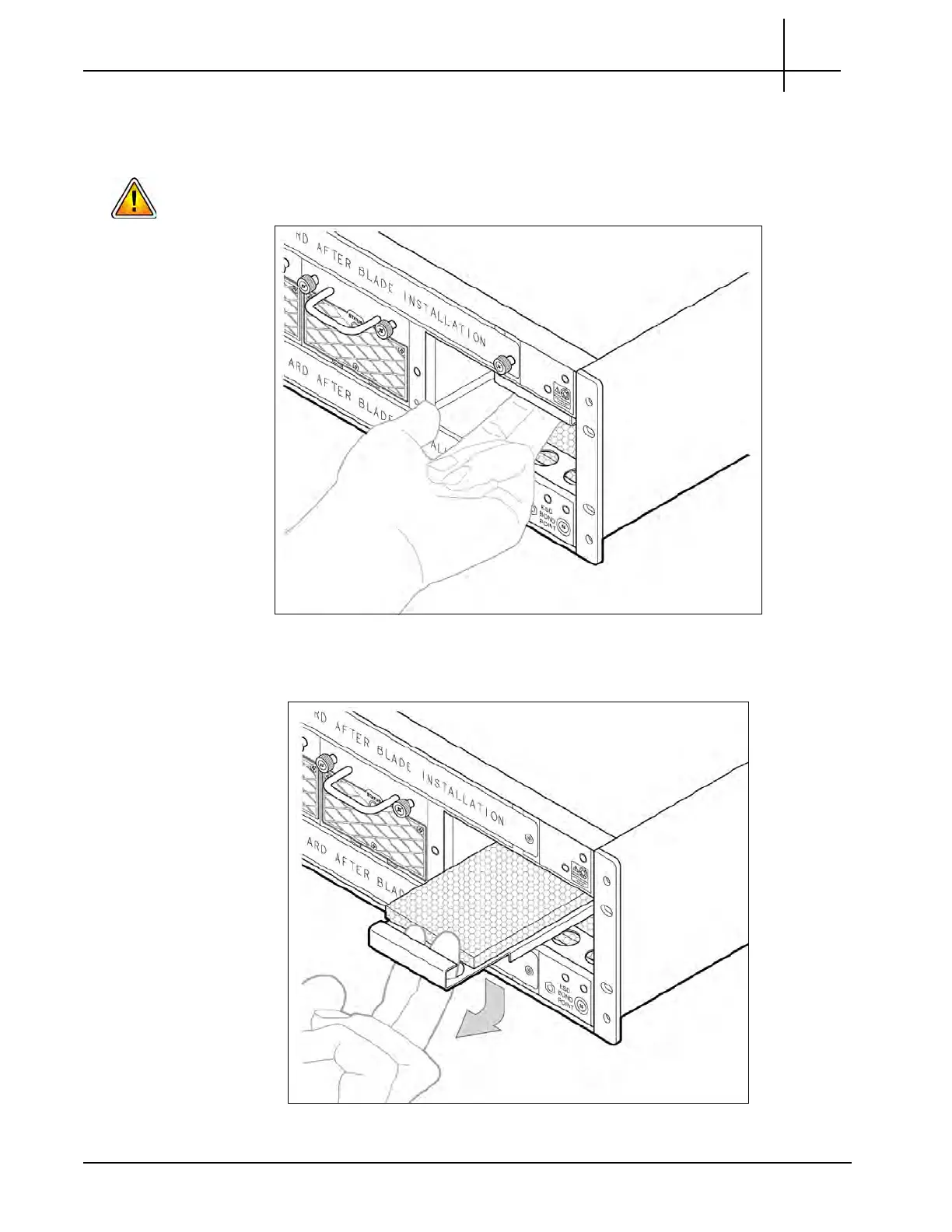

Figure 5.9 - Top Air Filter Frame Removal
6. Pull the frame carefully out of the chassis (Figure 5.10).
Figure 5.10 - Top Air Filter Frame Removal
