Blades and RTMs
Rev. 002-140228
SRM200 RTM LEDs

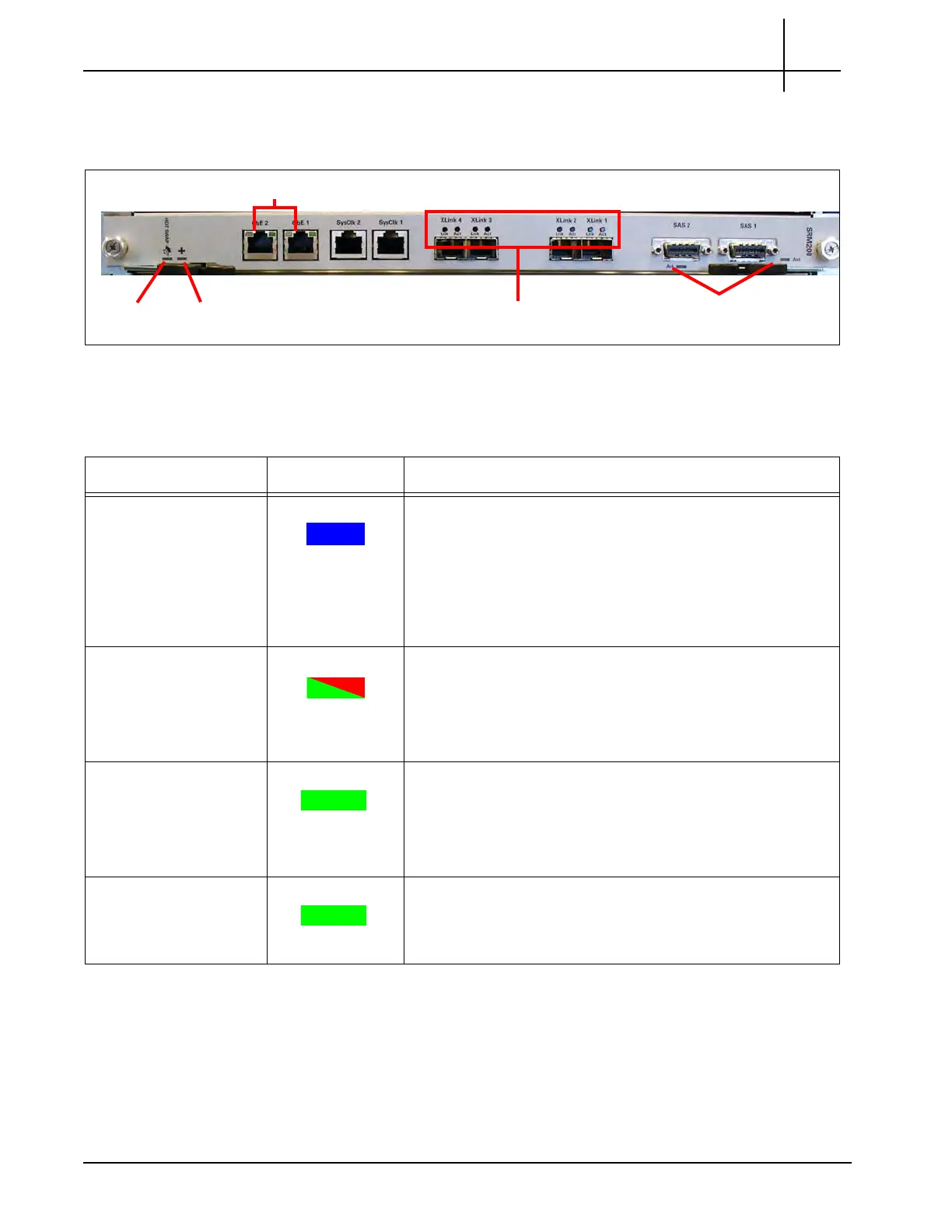

Figure 3.11 displays the SRM200 RTM LEDs.
Figure 3.11 - SRM200 RTM Rear Panel LEDs
Table 3.6 describes the SRM200 RTM LED indicators.
Hot Swap
LED
+ LED
Gb Ethernet LEDs
XLink 1-4 Lnk and Act LEDs
SAS LEDs
Table 3.6 - SRM200 RTM LED Indicators
LED LED Color Description
Hot Swap BLUE Indicates when it is safe to re
move the
SRM200 RTM.
 BLUE—module is in standby mode and can be safely
extracted.
 OFF—module is operational and it is unsafe to extract it.
 BLINKING BLUE—module is in transition between
standby mode and operational mode.
+ (Health) GREEN or RED Indicates the health of the SRM200 RTM.
 GREEN—no errors.
 RED—an error occurred.
 OFF—the board is not powered on.
Gb Ethernet LEDs GREEN Indicates Gigabit Ethernet link and activity.
 BLINKING GREEN—Ethernet Activity is occurring.
 SOLID GREEN—Ethernet Link is established.
 OFF—no Ethernet Link is established.
XLink 1–4 Lnk LEDs GREEN Indicates 10 Gigabit Ethernet link status.
 GREEN = Ethernet link is trained at 10 Gb/s speed.
 OFF = no Ethernet link established
