Blades and RTMs
Rev. 002-140228

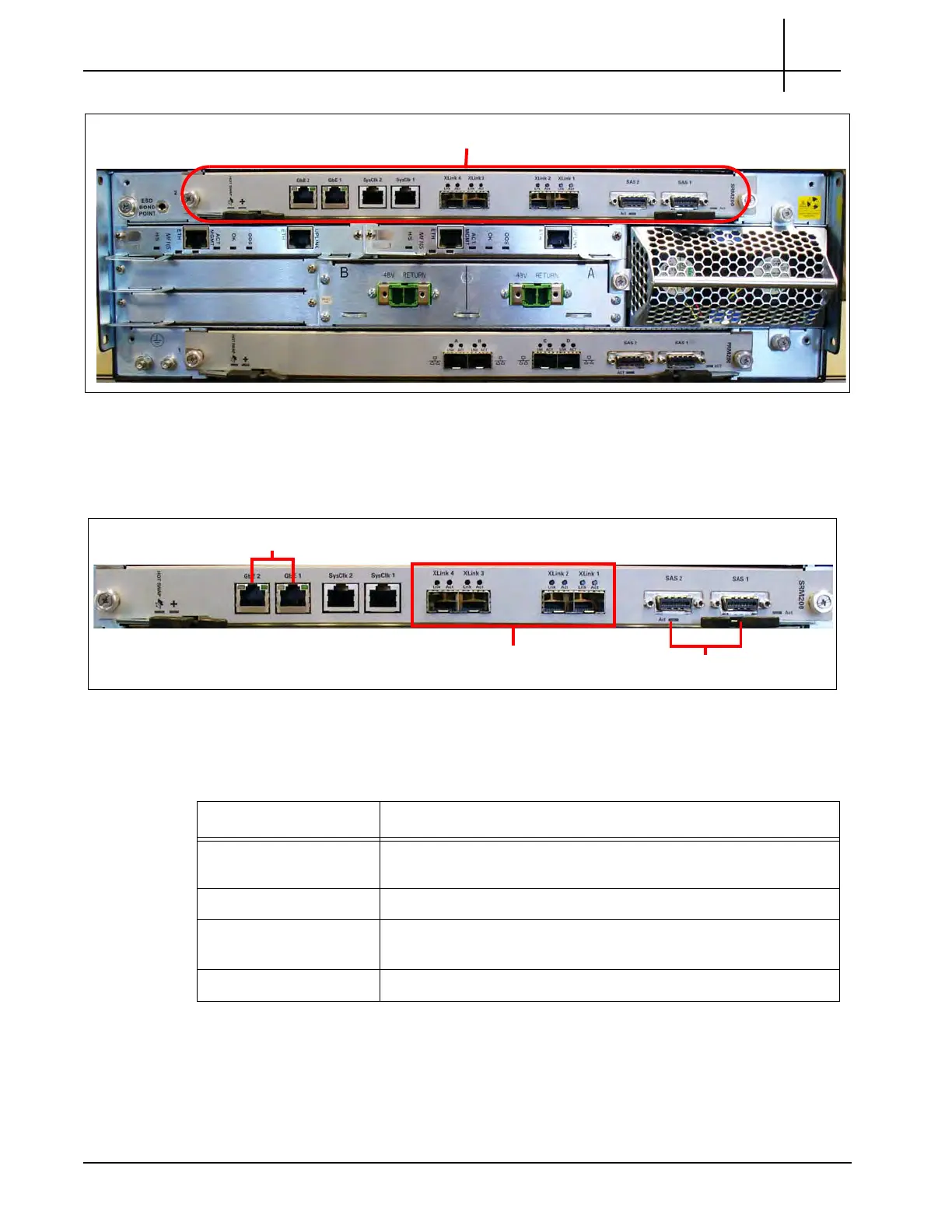

Figure 3.9 - SRM200 RTM
SRM200 RTM Connectors
Figure 3.10 displays the SRM200 RTM connectors.
Figure 3.10 - SRM200 RTM Connectors
Table 3.5 describes the SRM200 RTM connectors.
GbE1 and GbE2
XLink 1-4
SAS Connectors
SysClk (not used)
Table 3.5 - SRM200 RTM Connectors
Connector Description
GbE1–GbE 2 RJ45 Gigabit Ethernet connectors to the second controller
e
n
closure.
SysClk 1–2 Not used.
XLink 1–4 10G Ethernet SFP connections used in multi-cage
conf
igurations for intercage communications.
SAS 1–2 Provides connectivity to the exte
rnal disk array storage system.
