HYDROSTATIC POWER TRAIN
4203781 First Edition 5-61
5
Disassembly, Inspection, and Assembly

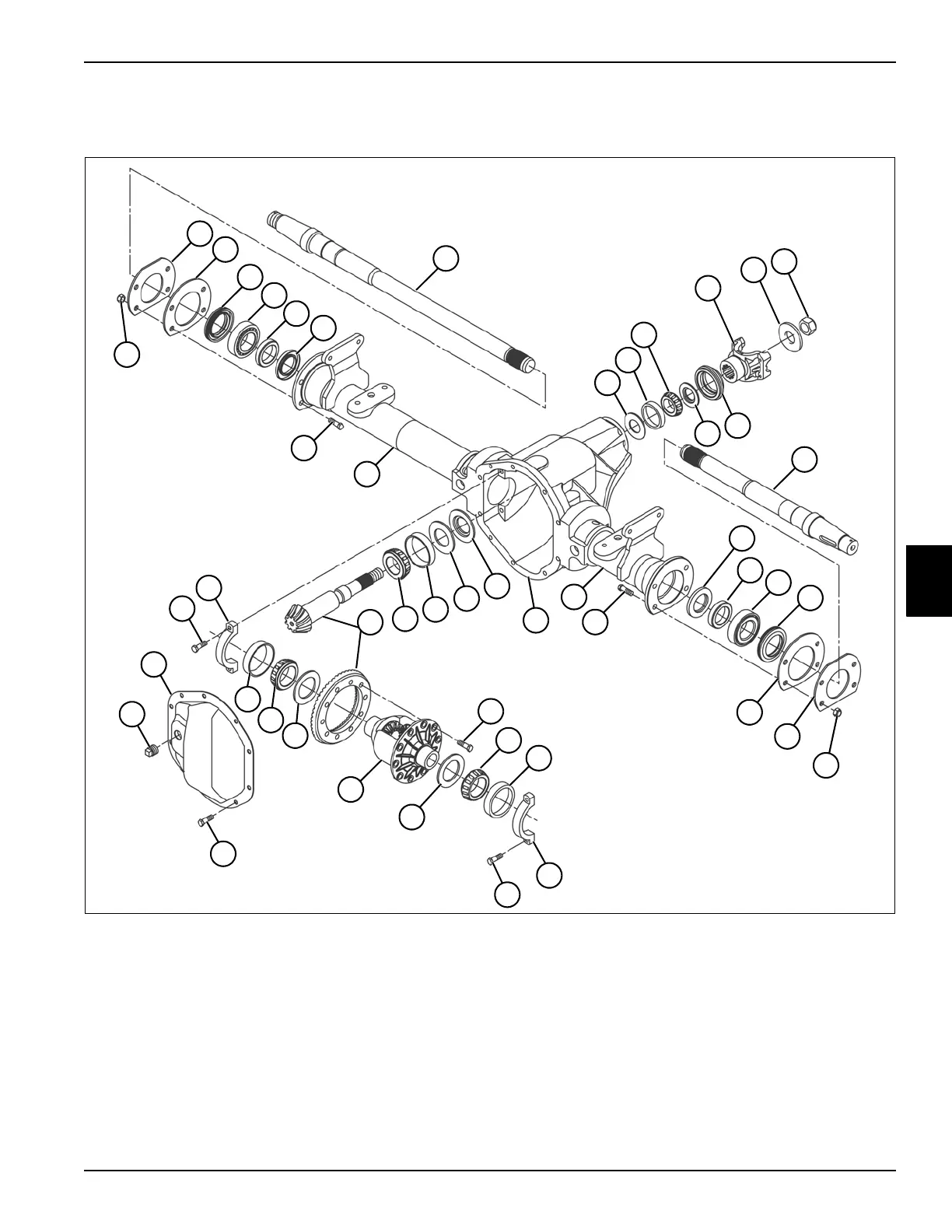

See Figure 5-57.
Figure 5-57
1 Nut (4) 14 End Yoke 27 Machined Screw (4) 40 Roller Bearing Cone
2 Plate Retainer 15 Flat Washer 28 Left Side Axle Tube 41 Gear and Pinion Assembly
3 Steel Spacer 16 Pinion Nut 29 Carrier Sub-Assembly 42 Adjustment Shim
4 Outer Shaft Seal 17 Pinion Oil Seal Slinger 30 Bearing Cap 43 Roller Bearing Cone
5 Bearing 18 Oil Seal 31 Screw (2) 44 Roller Bearing Cup
6 Collar 19 Left Side Axle Shaft 32 Roller Bearing Cup 45 Differential Cover Screw (10)
7 Inner Shaft Seal 20 Inner Shaft Seal 33 Roller Bearing Cone 46 Oil Level/Fill Plug
8 Machined Screw (4) 21 Collar 34 Ring Gear Screw (10) 47 Differential Cover
9 Right Side Axle Tube 22 Bearing 35 Adjustment Shim 48 Screw (2)
10 Right Side Axle Shaft 23 Outer Shaft Seal 36 Differential 49 Bearing Cap
11 Adjustment Shim 24 Nut (4) 37 Pinion Oil Baffle
12 Roller Bearing Cup 25 Plate Retainer 38 Adjustment Shim
13 Roller Bearing Cone 26 Steel Spacer 39 Roller Bearing Cup
TN2352
1
10
11
2
3
4
5
6
7
8
9
19
12
13
17
18
16
15
14
28
27
26
25
24
21
22
23
20
31
30
46
45
35
34
32
33
36
49
48
41
44
42
43
29
37
38
39
40
47
