HYDRAULICS
6

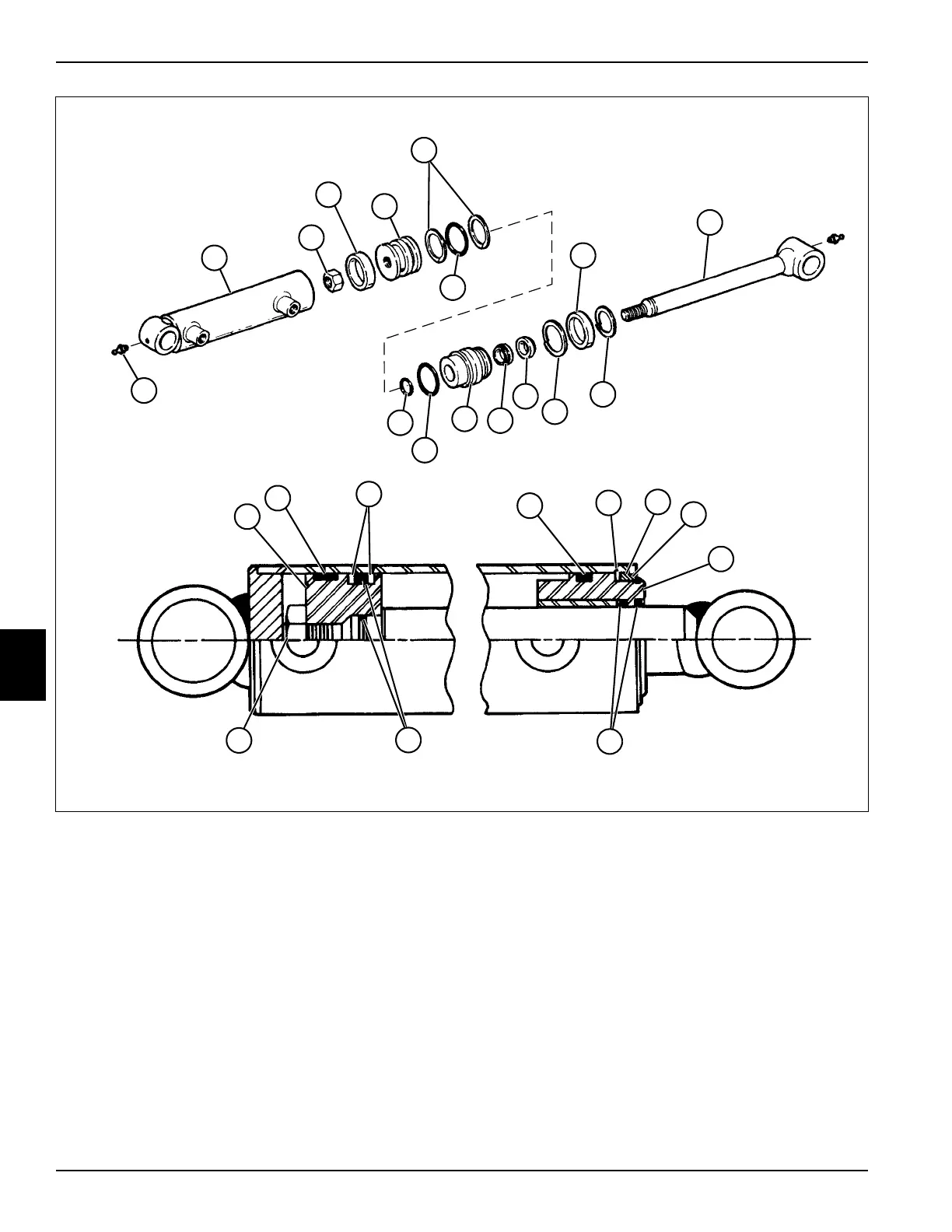

Figure 6-79: Snap Ring Gland
1 Grease Fitting (2) 5 Piston 9 Rod 13 Rod Seal
2 Barrel 6 O-Ring (2) 10 Lock Ring 14 Rod Guide
3 Nut 7 Backup Washer 11 Lock Ring 15 O-Ring
4 Seal Ring 8 Spacer 12 Wiper 16 O-Ring
TN1840
7
5
11
15
8
14
3
6
12
4
7
10
2
1
3
5
4
6
16
15
14
13
12
11
8
10
9
TN1840, TN1842
