Textron JACOBSEN R-311 69166 User Manual

HYDRAULICS
4203781 First Edition 6-73
6
Disassembly, Inspection, and Assembly
See Figures 6-78 and 6-79.
NOTE
The machine was built with two types of cylinders, either
a threaded gland or a snap ring gland. Determine which
type of cylinder was used and disassemble as needed.

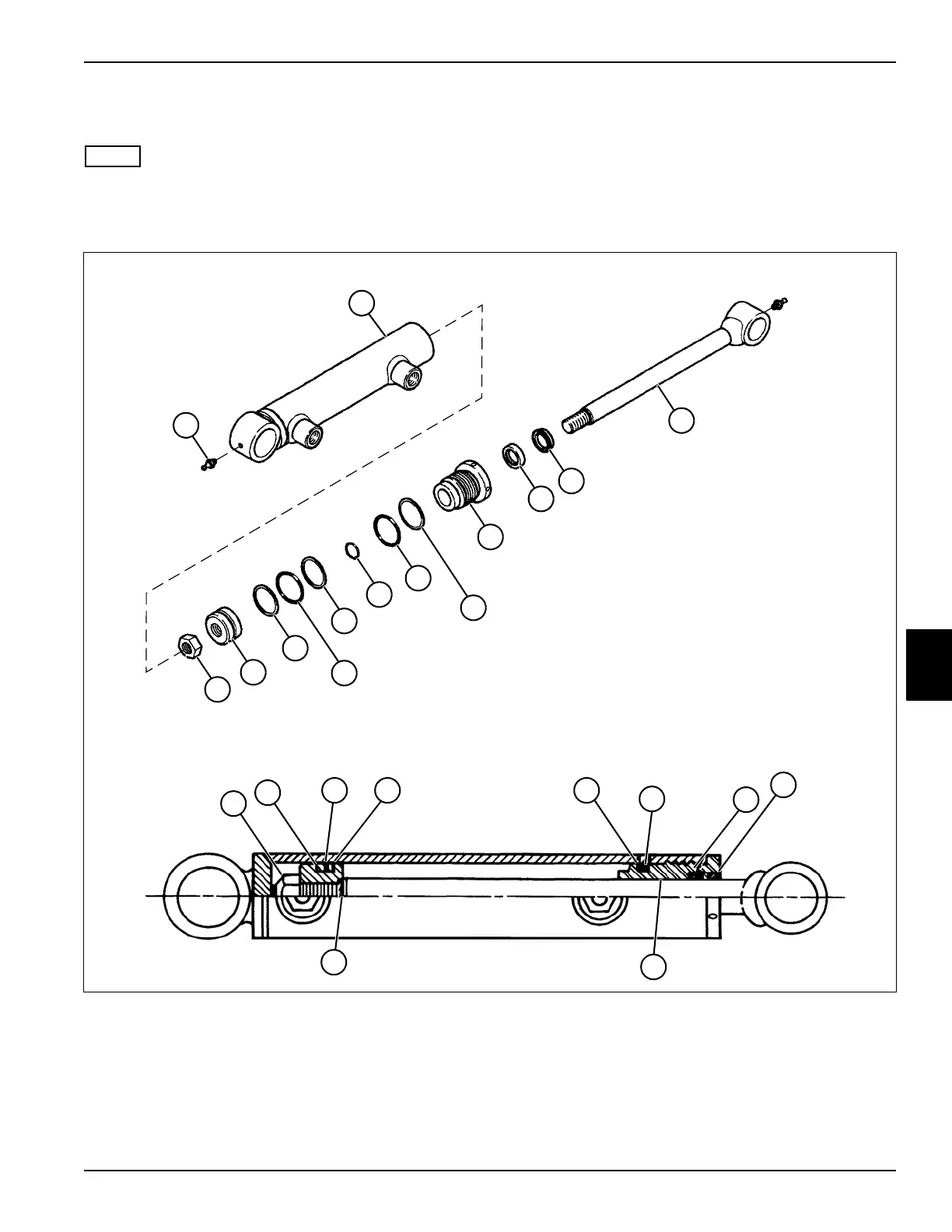

Figure 6-78: Threaded Gland
1 Grease Fitting (2) 5 Seal 9 O-Ring 13 Piston
2 Barrel 6 Rod Guide 10 Backup Ring 14 Nut
3 Rod 7 Backup Ring 11 O-Ring
4 Rod Wiper 8 O-Ring 12 Backup Ring
TN1839, TN1841
2
4
3
5
7
10
11
14
13
12
6
1
14
11 10
9
12
6
8
5
7
4
8
9
