Steering Unit Service Fixture

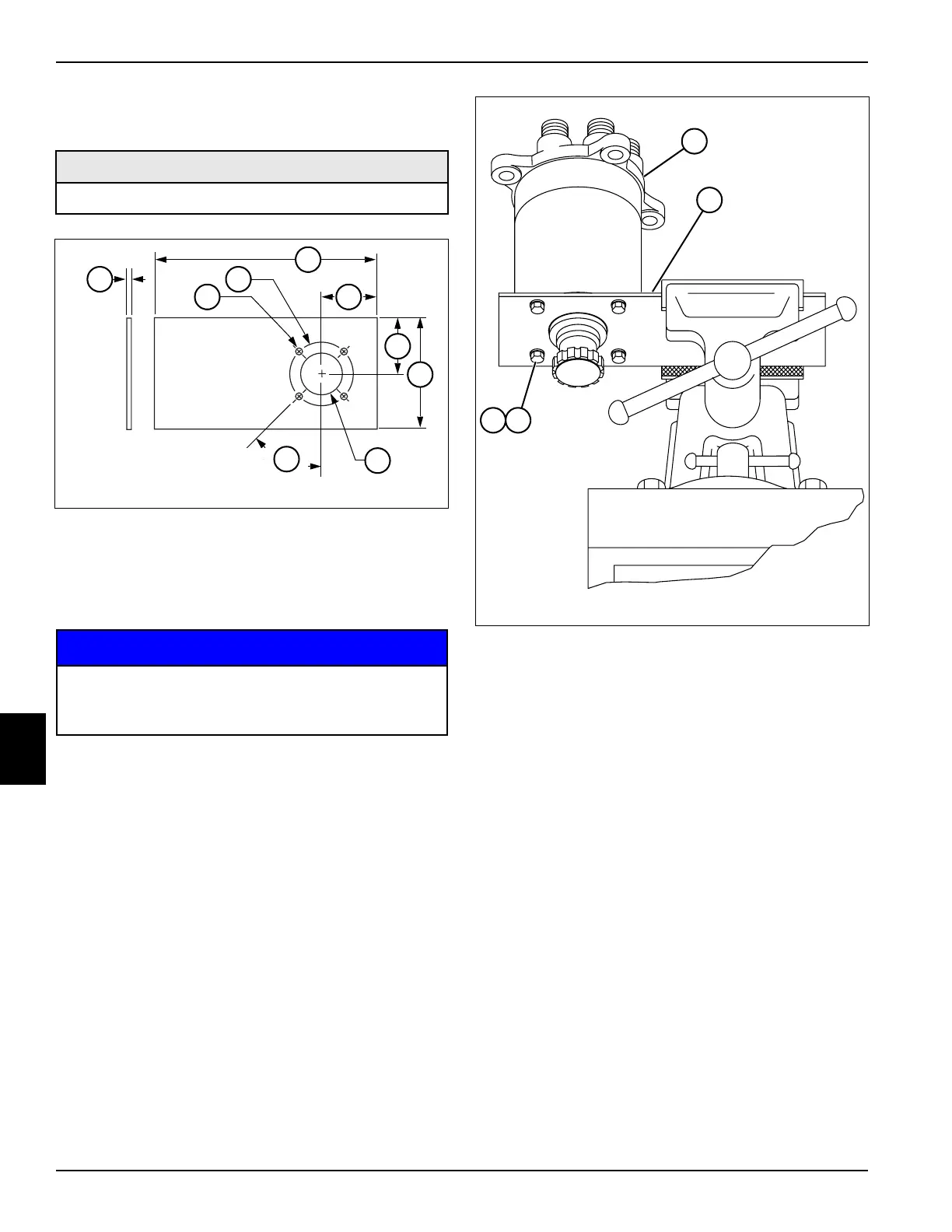

See Figures 7-15 and 7-16.
Figure 7-15
NOTICE
Figure 7-16
1. Place the steering unit service fixture (2) securely in
a vise.
2. Place the steering unit (1) into the service fixture (2),
input shaft down.
3. Secure the steering unit to the service fixture using
four M6-1 x 20 mm screws and M6 lock washers (3
and 4).
Required Tools or Equipment
Steering Unit Service Fixture
1 0.165 in. (4.2 mm) 6 2.0 in. (50.8 mm)
2 0.250 in. (6.35 mm) Ø Hole (4) 7 4.0 in. (101.5 mm)
3 2.280 in. (58.0 mm) Ø 8 1.5 in. (3.8 mm) Ø Hole
48.0 in. (202 mm) 945° (4)
5 2.0 in. (50.8 mm)
Do not clamp the steering unit directly into a vise.
Clamping the steering unit directly into a vise
may damage or distort the steering unit.
TN2142
1
5
3
2
6
7
9
8
4
TN2143
TN2143
1
2
43
