STEERING
4203781 First Edition 7-19
7
Disassembly, Inspection, and Assembly

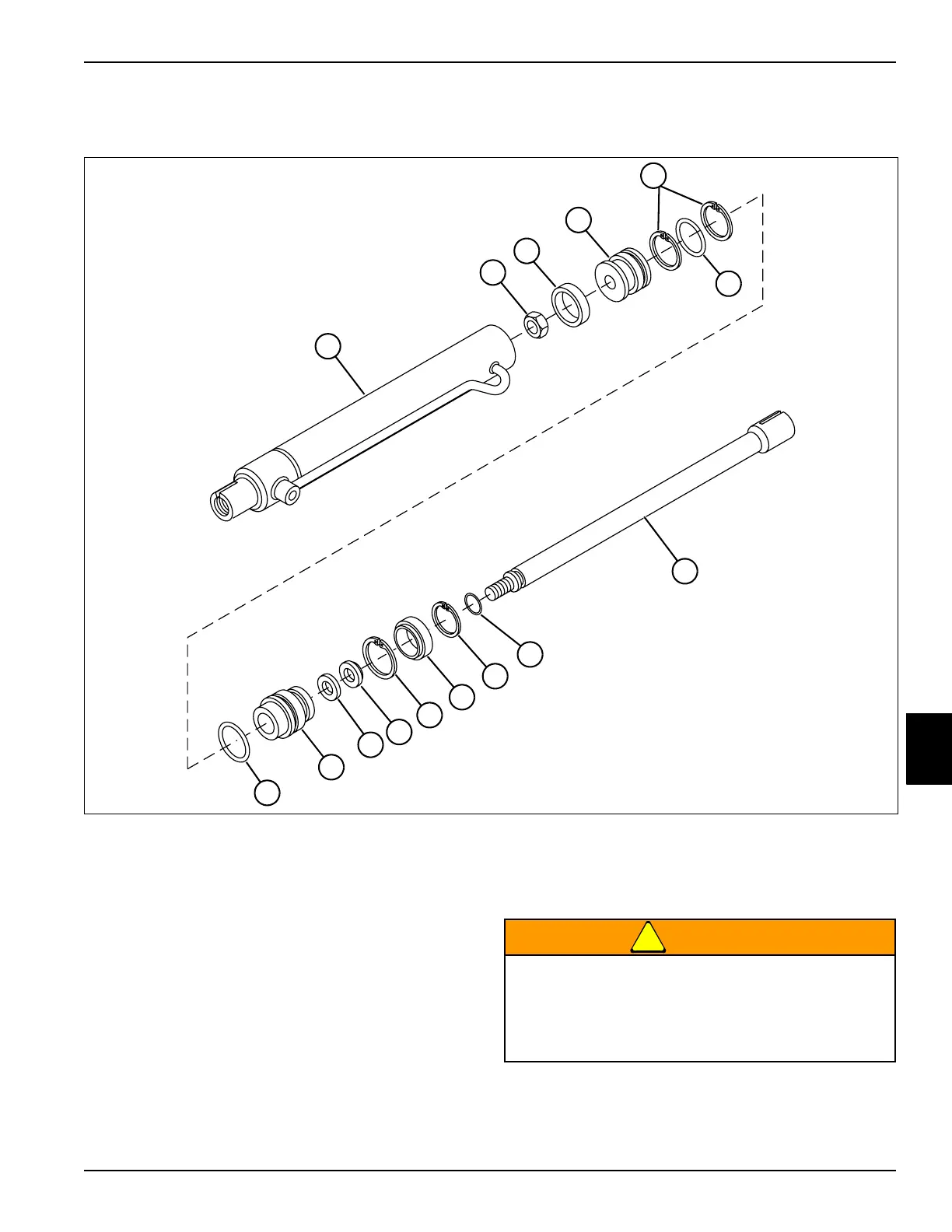

See Figure 7-27.
Figure 7-27
1. Remove the small snap ring (13) and rod guide (12).
2. Remove the large snap ring (11).
3. Remove the piston and rod assembly (2 through 15)
from barrel (1).
4. Remove nut (2), piston assembly (3 through 6), and
guide assembly (7 through 10) from rod (15).
5. Remove seal ring (3), O-ring (6), and backup rings
(5) from piston (4).
6. Remove O-ring (7), rod seal (9), and rod wiper (10)
from rod guide (12).
7. Remove O-ring (14) from rod (15).
!
WARNING
1 Barrel 5 Backup Ring (2) 9 Rod Seal 13 Snap Ring (Small)
2Nut 6O-Ring 10Rod Wiper 14O-Ring
3 Seal Ring 7 O-Ring 11 Snap Ring (Large) 15 Rod
4 Piston 8 Rod Guide 12 Rod Guide
TN1790
10
11
13
8
6
5
4
1
12
14
3
2
7
9
15
Use appropriate eye protection when using
compressed air for cleaning or drying purposes.
Compressed air can cause serious personal
injury. Use safety reduction valves to reduce the
air pressure to a safe level before use.
