CUTTING UNITS
4203781 First Edition 8-17
8
Disassembly and Assembly

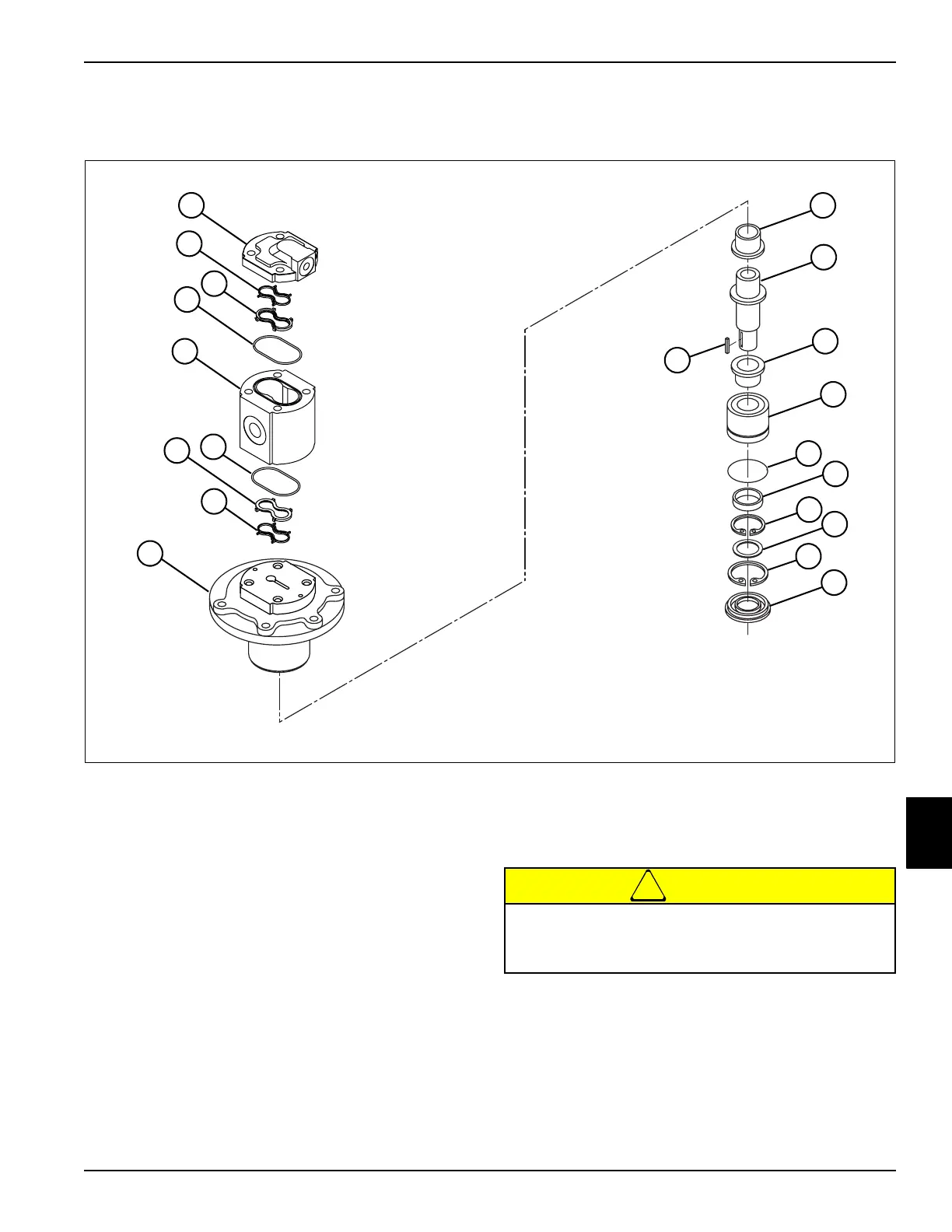

See Figure 8-7.
Figure 8-7
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Thoroughly clean the exterior of the motor, especially
the area surrounding the hydraulic hoses and fittings,
with a suitable solvent.
3. Remove deck motor. (See “Deck Motor” on
page 8-16.)
!
CAUTION
4. After removing screws, disassemble motor.
5. Place parts in assembly order on a clean work area
as they are removed.
1 Cover 5 Motor Body 9 Shaft Key 13 Small Snap Ring
2 Backing Seal (2) 6 Spindle 10 Bearing 14 Washer
3 Bushing Seal (2) 7 Flanged Bushing (2) 11 O-Ring 15 Large Snap Ring
4 O-Ring (2) 8 Spindle Shaft 12 Seal 16 Motor Shaft Guard
TN1821
1
5
4
3
2
6
4
2
3
7
8
14
15
16
13
12
11
10
7
9
Never pry components apart. Use a soft faced
hammer, and gently tap housing and shaft to
separate pump body.
