Textron JACOBSEN R-311 69166 User Manual

8-20 4203781 First Edition
CUTTING UNITS
8
Disassembly and Assembly

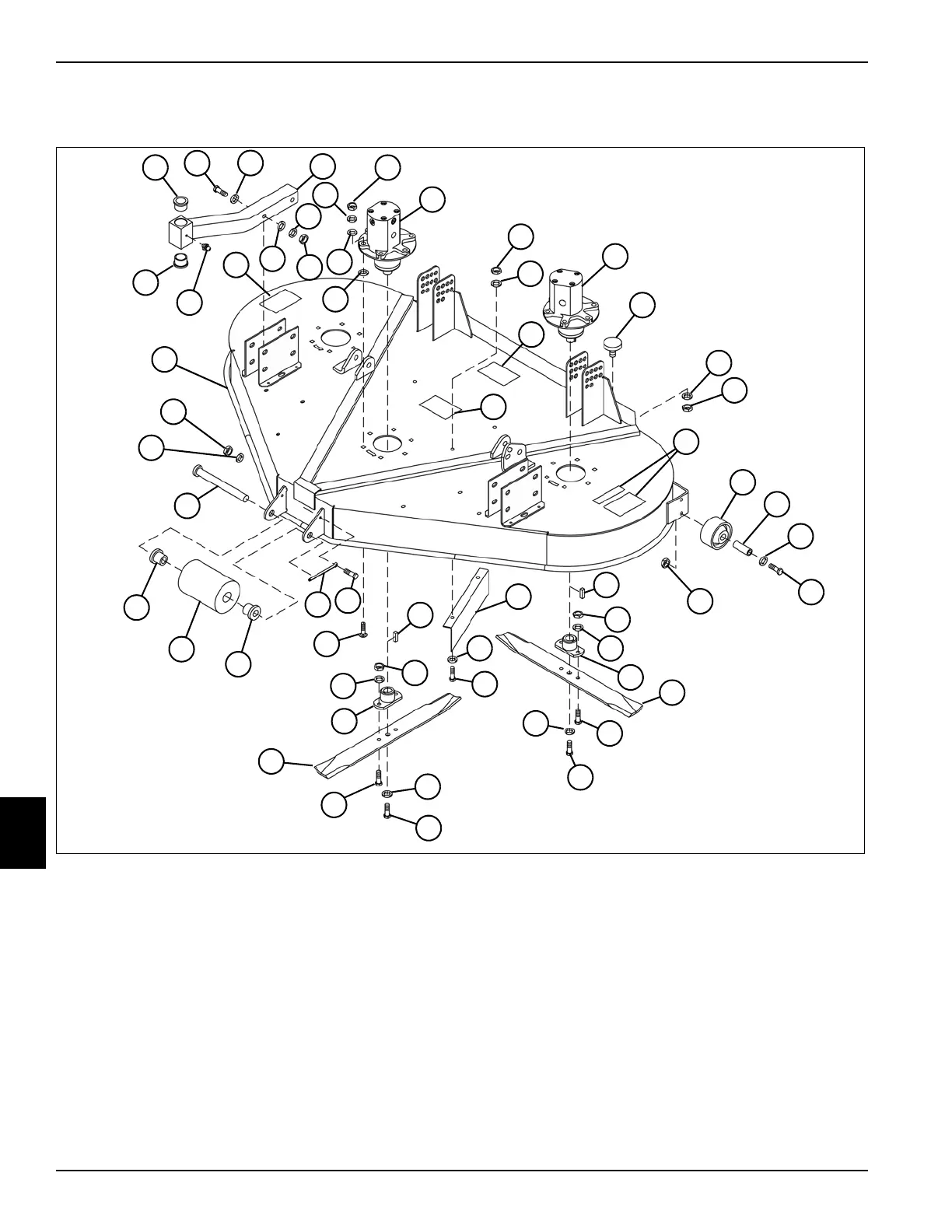

See Figure 8-10.
Figure 8-10
Disassembly Note
Inspect all moving parts for wear or damage. Replace as
necessary.
1 Bushing (2) 8 Lock Washer (5) 15 Flat Washer 22 Screw (3) 29 Anti-Scalp Wheel
2Screw 9Nut (5) 16Screw 23Screw 30Shaft
3 Flat Washer (2) 10 Motor (3) 17 Lock Nut 24 Plate 31 Lock Washer
4 Caster Arm 11 Decal (5) 18 Key (3) 25 Carriage Bolt 32 Nut
5 Lock Washer (3) 12 Rubber Stop 19 Adapter (3) 26 Screw 33 Front Deck
6 Nut 13 Anti-Scalp Wheel 20 Blade (3) 27 Cotter Pin 34 Grease Fitting
7 Flat Washer (2) 14 Spacer 21 Screw (2) 28 Bushing (2) 35 Shim (as required)
33
11
11
12
8
9
TN2133
1
2
3
4
9
5
8
10
7
6
3
34
1
9
8
10
11
11
13
14
15
16
18
9
8
19
20
21
5
22
23
7
24
18
9
19
8
25
27
26
5
22
21
20
28
29
28
30
32
31
17
35
