ACCESSORIES AND MISCELLANEOUS REPAIR
4203781 First Edition 9-11
9
Disassembly and Assembly
See Figures 9-17 and 9-18.

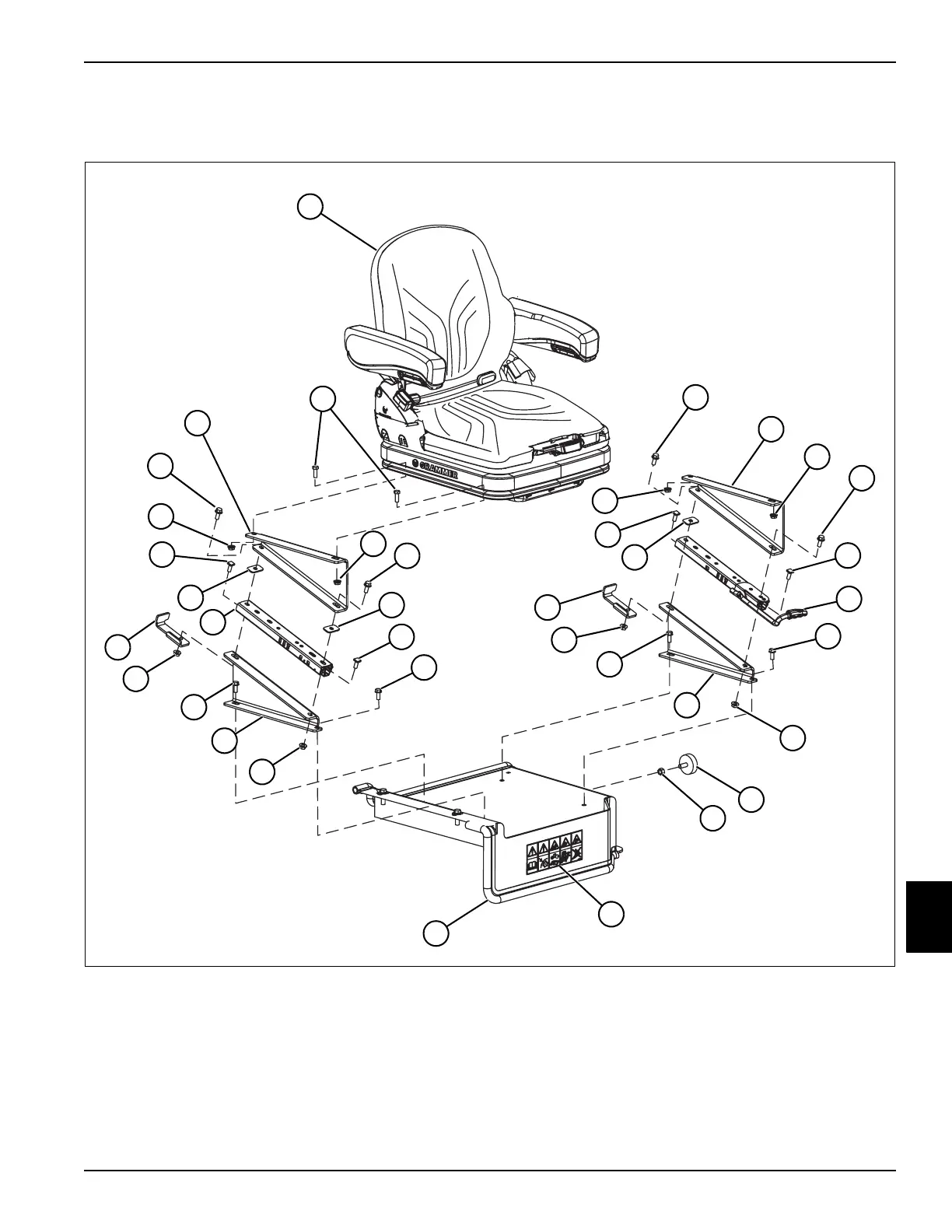

Figure 9-17
1 Seat 7 Screw (4) 13 Rear Seat Stop (2)
2 Screw (4) 8 Nut (4) 14 Seat Rail
3 Seat Riser (4) 9 Rubber Stop 15 Spacer (3)
4 Nut (4) 10 Nut 16 Screw (4)
5 Screw (4) 11 Warning Decal
6 Seat Rail with Handle 12 Seat Base
TN2120
1
16
4
5
15
3
2
2
5
6
7
13
8
7
3
8
9
10
12
11
8
3
7
7
5
15
2
8
13
15
14
5
4
2
3
4
4
