Textron JACOBSEN R-311 69166 User Manual

ACCESSORIES AND MISCELLANEOUS REPAIR
4203781 First Edition 9-19
9
Brake Pedal
Disassembly and Assembly
See Figure 9-36.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)

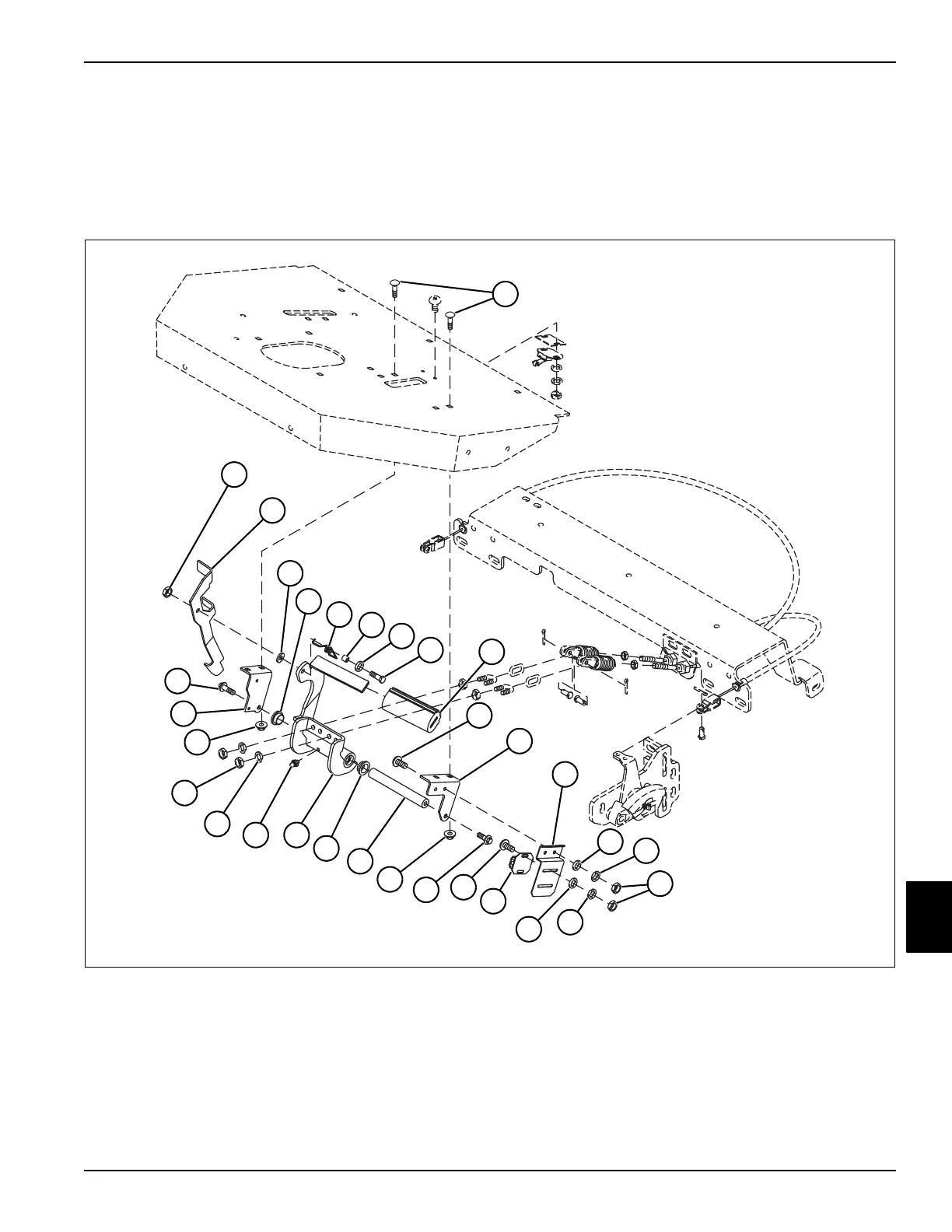

Figure 9-36
1 Carriage Bolt (2) 8 Flat Washer 15 Lock Washer (4) 22 Grease Fitting
2 Lock Nut 9 Screw 16 Nut (4) 23 Lock Washer (4)
3 Park Brake Lever 10 Pedal Grip 17 Brake Pedal Switch 24 Nut (8)
4 Flat Washer 11 Screw (3) 18 Screw (2) 25 Right Brake Arm
5 Bushing (2) 12 Left Brake Arm 19 Nut (4)
6 Spring 13 Cruise Control Switch Bracket 20 Brake Pedal Shaft
7 Spacer 14 Flat Washer (4) 21 Brake Pedal
3
2
6
TN2113
1
7
8
9
10
11
12
13
14
15
16
15
14
17
11
18
19
20
5
2122
23
24
25
18
4
5
19
