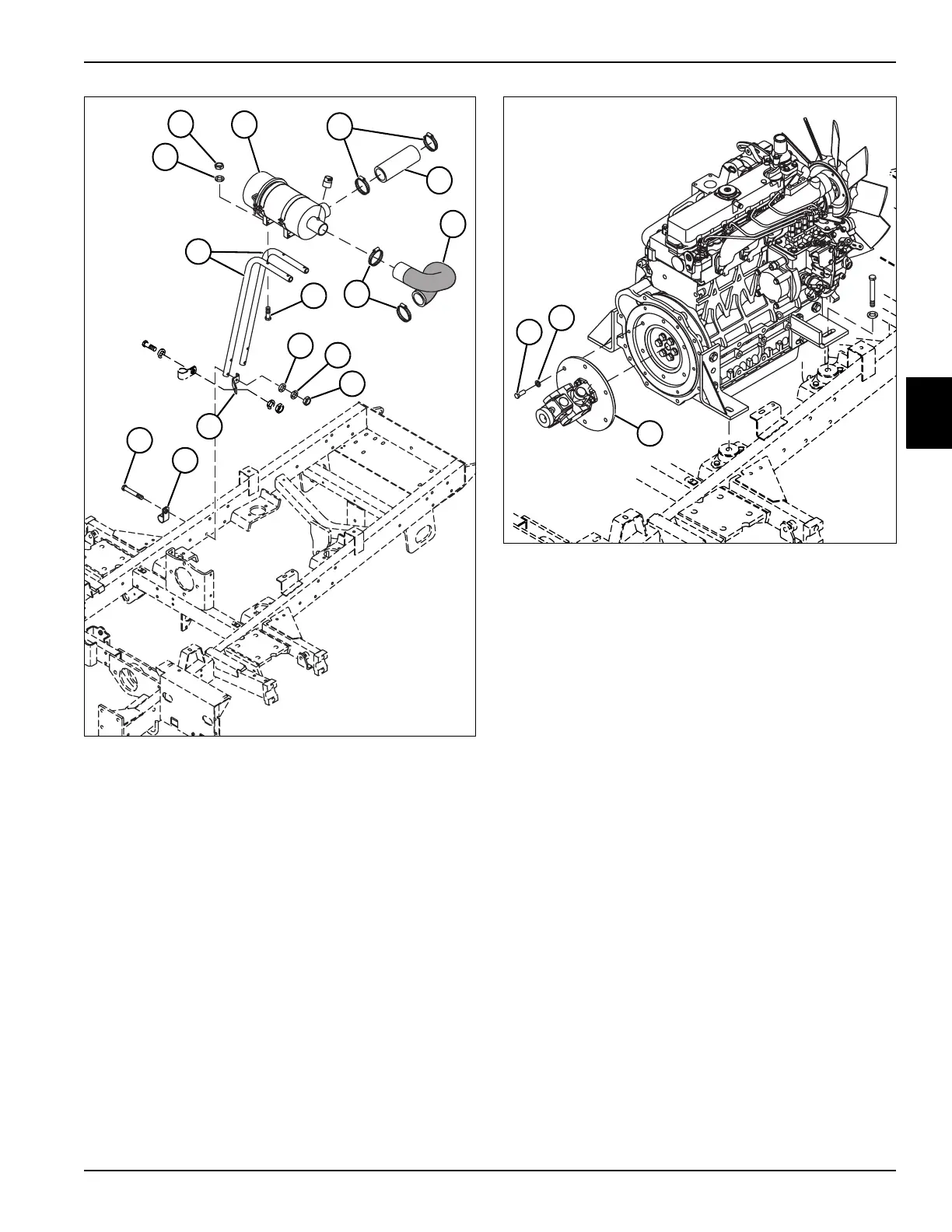

Figure 3-33
14. Loosen clamps (17) and remove air intake hose (18)
and hose (19). Cover the intake manifold opening.
15. Remove two nuts (15), washers (14), and screws
(20) to remove air filter assembly (16) from the air
cleaner supports (27).
16. Remove four nuts (23), lock washers (22), flat
washers (21), and screws (26) to remove clamp (25),
mounting bracket clamp (24), and air cleaner
supports (27) from the frame.
Figure 3-34
17. Remove six screws (28) and lock washers (29) to
disconnect the hydrostatic pump drive plate (30) from
the engine.
20
14
TN2110
15
16
17
18
19
17
21
22
23
24
26
25
27
TN2098
30
29
28
