Textron Jacobsen SLF530 User Manual

3-16 673831-Rev A
ENGINE
3
Disassembly, Inspection, and Assembly

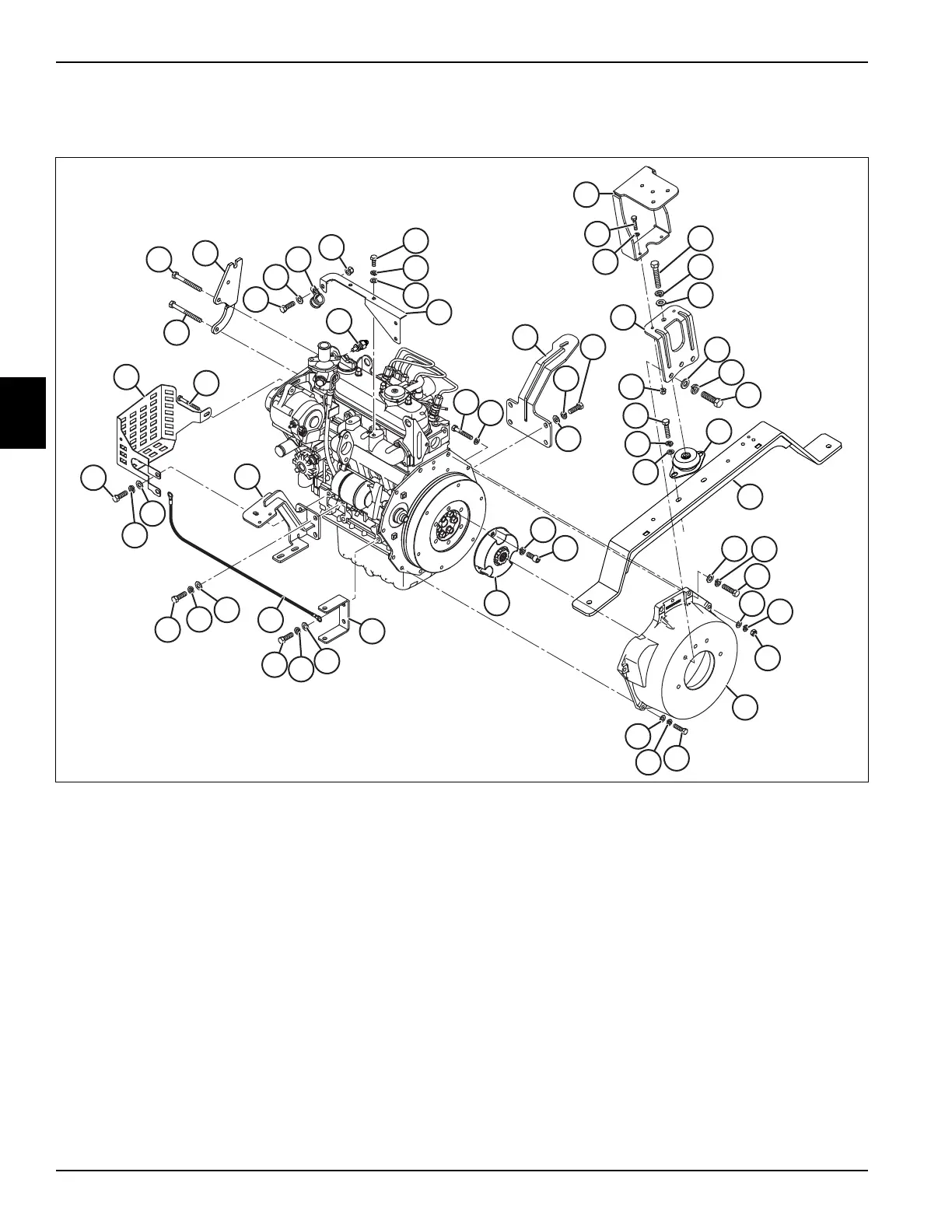

See Figure 3-22.
Figure 3-22
1 Engine Mount Screws (10) 14 Clamp Screw 27 Flat Washer (2) 40 Flat Washer (2)
2 Lock Washer (10) 15 Flat Washer 28 Nut (2) 41 M8 x 40 mm Screw
3 Flat Washer(10) 16 Remote Filter Hose Clamp 29 Filter Bracket 42 Flat Washer (2)
4 Front Engine Mount 17 Flange Nut 30 Mount Screw (3) 43 Lock Washer
5 Rear Engine Mount 18 Side Mount Screw 31 Lock Washer (3) 44 Nut
6 Exhaust Mount 19 Lock Washer 32 Flat Washer (3) 45 Coupler Screw (3)
7 Ground Cable 20 Flat Washer 33 Engine Mount 46 Lock Washer (3)
8 Belt Guard Bolt 21 Side Engine Mount 34 Bell Housing 47 Coupler
9 Belt Guard 22 Mount Screw (2) 35 M8 x 30 mm Screw (3) 48 Temperature Sender
10 Exhaust Bracket 23 Lock Washer (2) 36 Lock Washer (3) 49 M6 x 55 mm Screw
11 Exhaust Bracket Screw (2) 24 Flat Washer (2) 37 Flat Washer (3) 50 M6 x 50 mm Screw
12 Lock Washer (2) 25 Engine Mount 38 M10 x 30 mm Screw (2) 51 Throttle Bracket
13 Flat Washer (2) 26 Filter Bracket Screw (2) 39 Lock Washer (2)
1
2
3
1
2
3
1
2
3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
49
50
51
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
42
43
44
45
46
47
48
MAR0260
