ENGINE
673831-Rev A 3-15
3

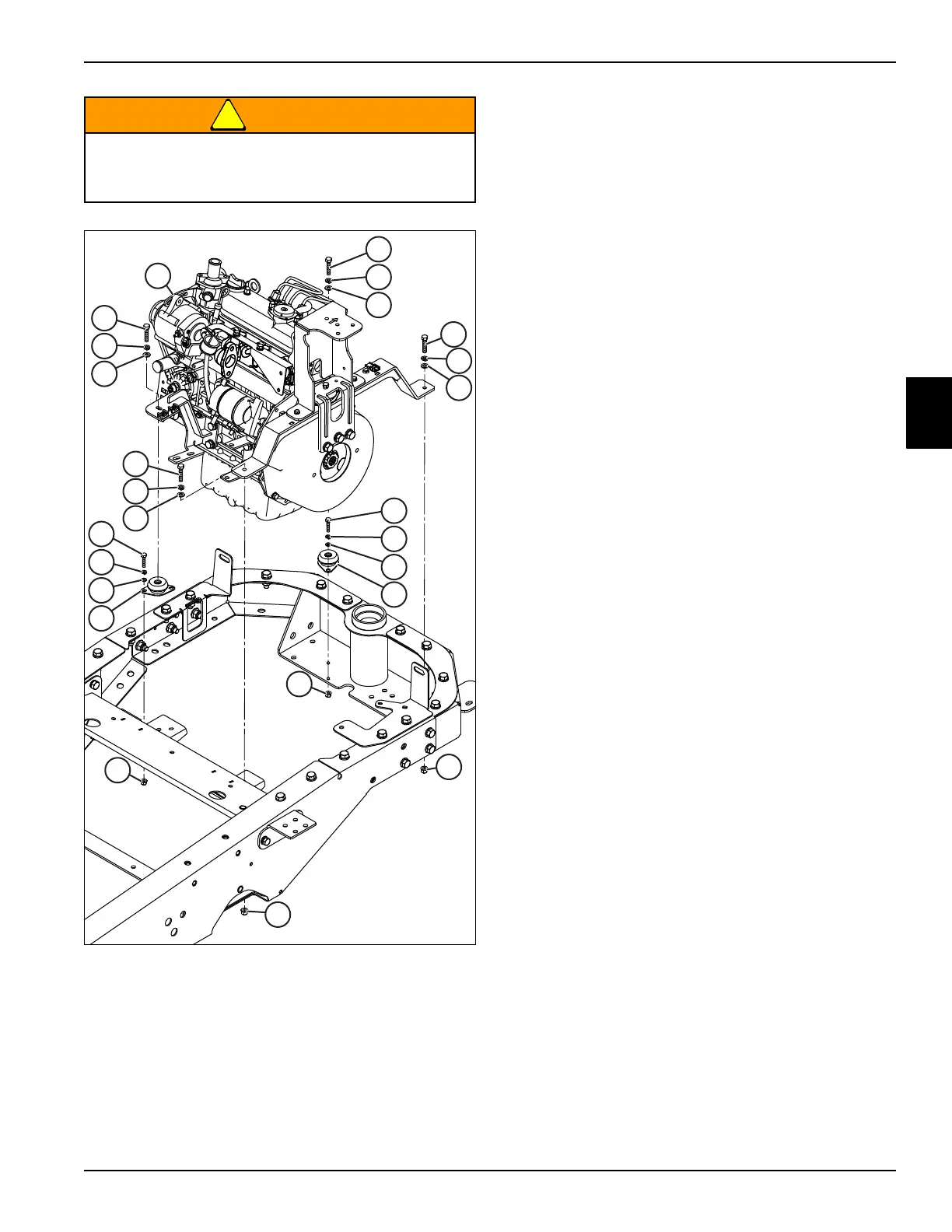

Figure 3-21
30. Using an engine hoist, support engine assembly
(32).
31. Remove two screws (28), lock washers (29), flat
washers (30), and nuts (31).
32. Remove two screws (33), lock washers (34) and flat
washers (35).
33. Check for any connected wires and components.
34. Carefully remove engine from machine.
35. Remove two screws (36), lock washers (37), flat
washers (38), and nuts (39). Remove two engine
mounts (40).
36. Place engine on a suitable stand or workbench that
will support full weight in a safe manner while
preventing damage to engine.
Installation Notes
• Inspect engine mounts, and replace if necessary.
• Install engine by reversing the order of removal.
• Apply dielectric grease (Jacobsen PN 365422) to any
wire connectors disconnected.
• Use new exhaust gasket when installing exhaust
system.
• Fill radiator with clean water and ethylene glycol
based antifreeze mixed for coldest ambient
temperature.
• Replace engine oil filter and fill engine with oil.
• Purge air from fuel system. (See “Purging the Fuel
System” on page 3-5.)
Prevent personal injury. Use a properly rated
lifting device. Always be sure the load is
balanced before lifting.
